Steelworks 2-in-1-combi welding device DC WIG 200 PULS ST Digital Full equipment-digital professional WIG welding machine with MMA | E-hand and pulse function | IGBT-Inverter with LED display | Suitable for thin sheet

SKU: 6311
Sale priceCHF 579.00

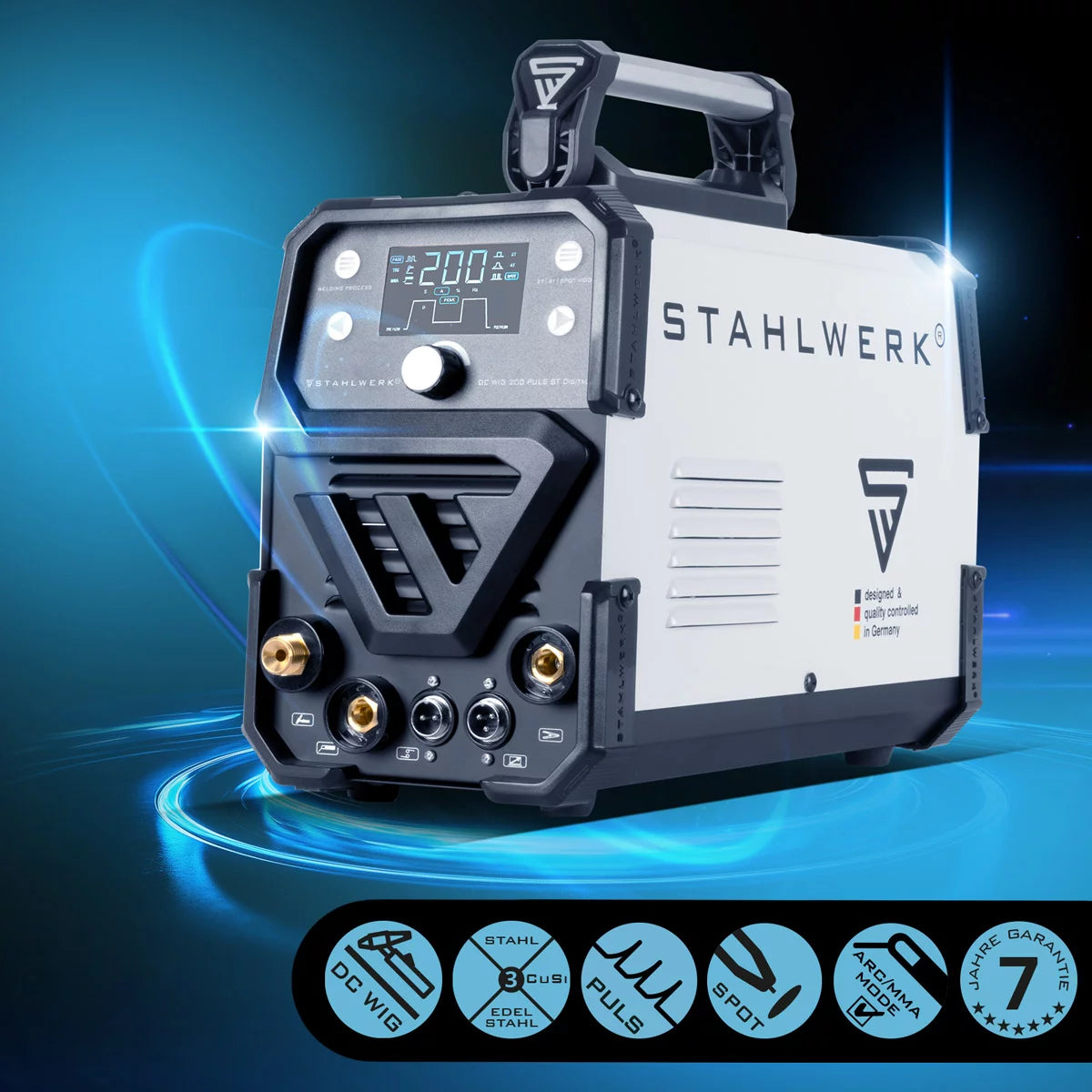

The steel mill DC WIG 200 Puls ST Digital is a powerful DC (DC) WIG welding device with pulse and MMA/ e-hand welding function. The 2-in-1 combination welding device is compactly built thanks to advanced IGBT technology and has an intuitive, easy-to-use control panel. Individual settings of the welding parameters can be made quickly via the clear LED display. The device is suitable for welding almost all materials, such as steel, stainless steel and copper. The processing of thin sheets is just as possible as the processing of tape steel or flat iron. The extensive pulse function - WIG PULS - prevents burning of materials and reduces the deformation by heat. It is particularly suitable for welding thin panels, the material of which can only be heated. Adjustable parameters are impulse current and pulse frequency. Advanced IGBT technology enables top performance in WIG and E-Hand welding.

Free shipping in Switzerland and Liechtenstein!
30 day money back guarantee
Purchase on account

Functions

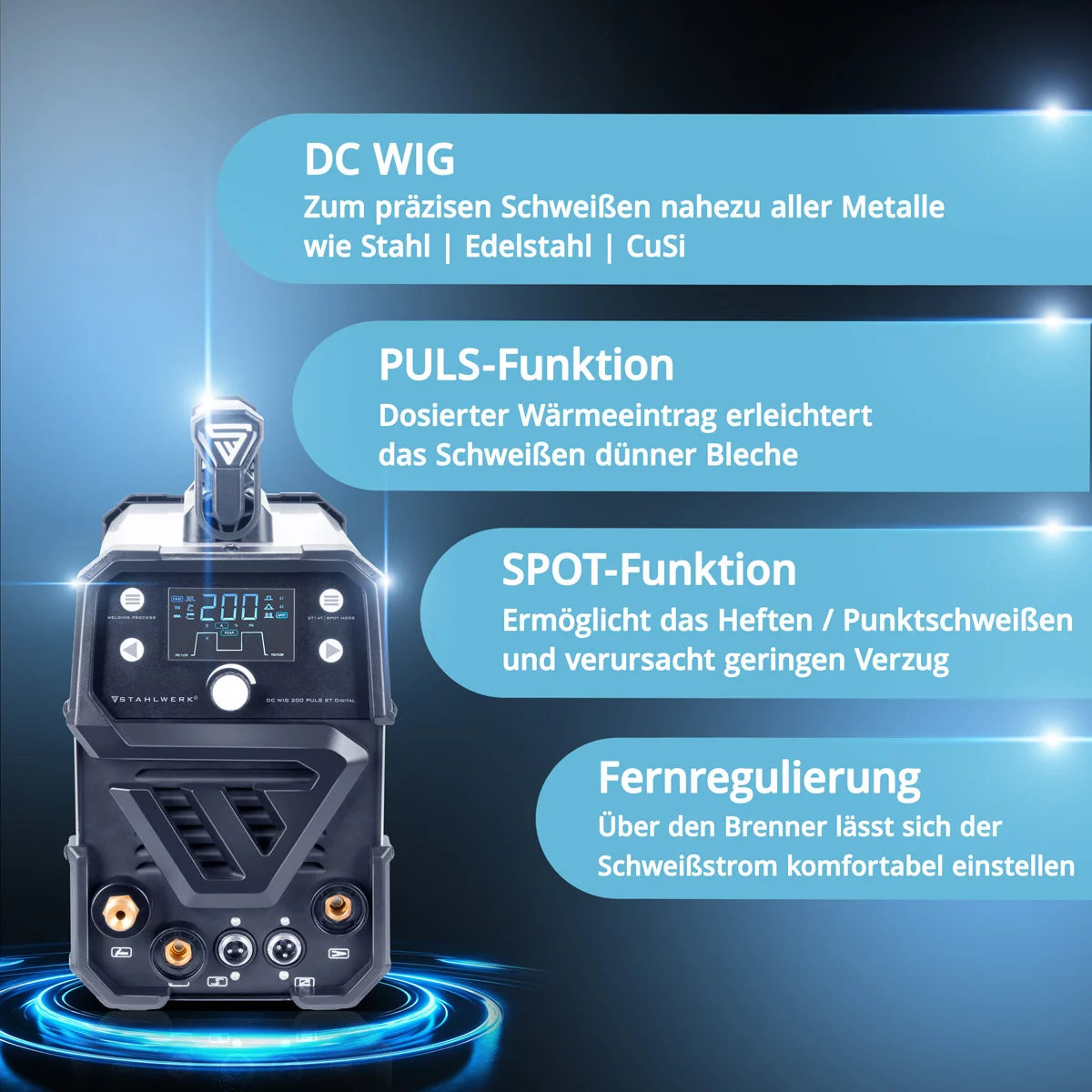

  • DC Wig welding - DC (DC). Welding of almost all metals, such as steel, stainless steel, copper and much more, Note: Not suitable for aluminum - an AC/DC device is required for this.
  • 2 in 1 combination device - Wig welding and mma welding is possible up to 200 a.
  • Extensive pulse function - WIG pulse - prevents burning of materials and reduces deformation by heat, particularly suitable for welding thin panels, the material of which may only be heated. Adjustable parameters are: pulse current, pulse frequency.
  • 2T/4T (WIG) - determines the control of the operating mode and offers extended control over the course of the current. In 2T mode, the high frequency ignition (HF) remains active until the button on the Brenner is released. In the 4T mode, after pressing and letting go of the die button, the lacquer is ignited. After pressing and releasing again, the ignition ends. Some functions such as reducing electricity are only possible in the 4T.
  • Sinking electricity - prevents the formation of lunker places (end crater) at the end of welding.
  • Gas reference (WIG) - the tungsten electrode protects against too high wear and protects the weld seam from oxidation. The parameter can be set individually and separately. He indicates how long after the ignition should flow gas.
  • IGBT Technology - the latest and most modern transistors technology enables the highest performance and a high switching time (ED)! No transformer, no MOSFET, the most modern IGBT!

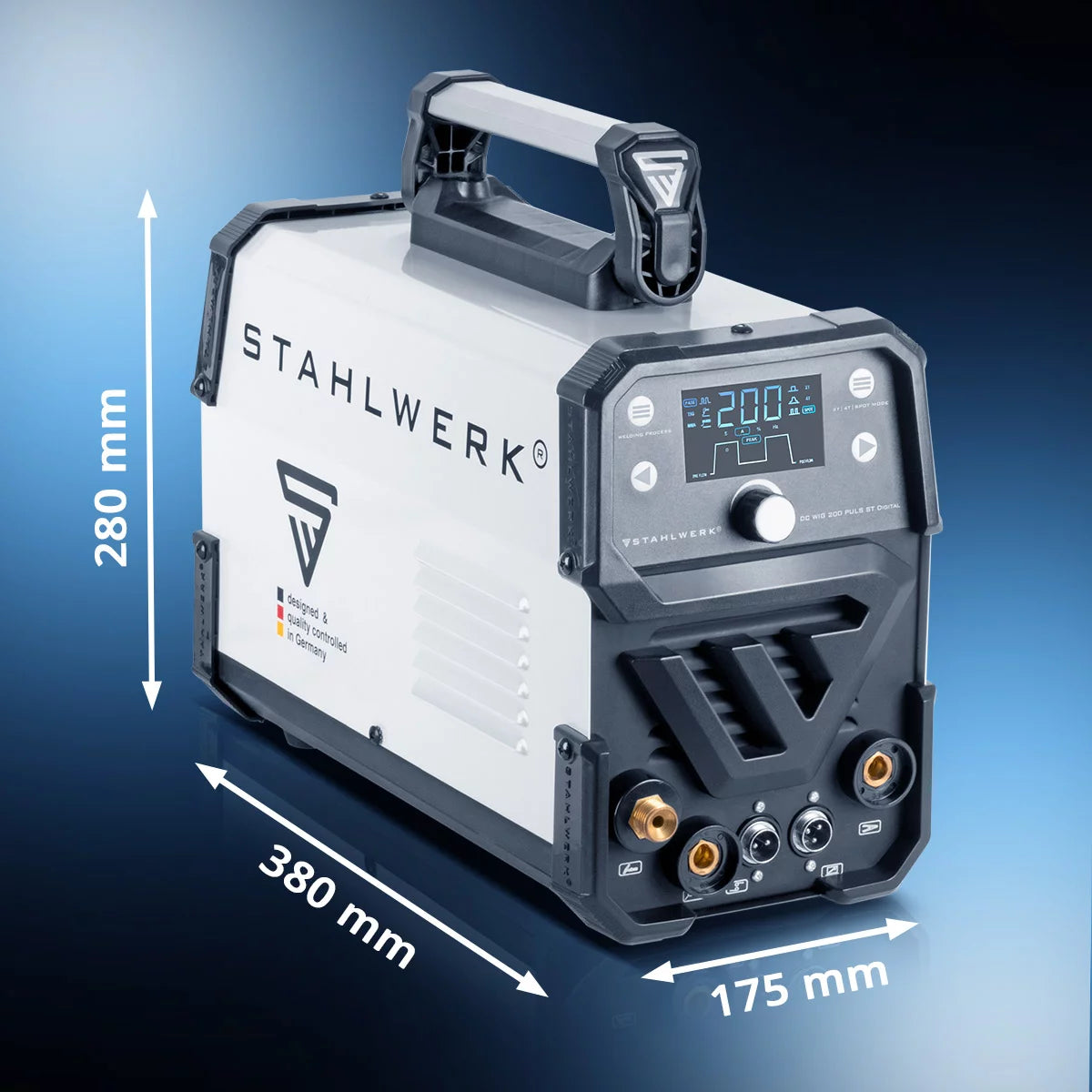

  • Light & compact design - only 9.7 kg weight and dimensions of 380 x 175 x 280 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more difficult wear!
  • HF ignition (WIG) - enables contactless ignition and ensures a much better welding result. No lift arc, no stroking ignition!

Properties & advantages

  • Welding current / pulse current - Due to the two parameters of welding current and pulse current, two different streams can be set for a welding process, between which the welding current always changes.
  • Impulse width - With the pulse width, you set how long the welding current takes on the current of the pulse current before setting up back to normal welding current strength.
  • Impulse frequency - The pulse frequency determines how often the current changes in a specified period between the two set values.
  • Innovative hose package including modified WP-26 for burner with flex head. The welding current is regulated via a adjusting wheel installed directly on the burner. The burner is connected to the hose package via a ball joint. This enables flexible and simple work.
  • Hotstart - Automatic voltage increase when starting for better detonator results.
  • Anti -stick - automatic shutdown of the welding current when the electrode sticks enables easy removal.
  • WIG (Wolfram-Inert-Gas)-protective gas welding with inert/inactive gases such as Argon 4.6 (99.996 %). An arc between tungsten electrode and workpiece is created in an argon bell. This melts the material and the additional material supplied if necessary. A weld seam is created.
  • MMA electrode welding / ARC welding - a universal welding process. An arc makes the electrode melt and thus forms the weld seam. No protective gas is required.

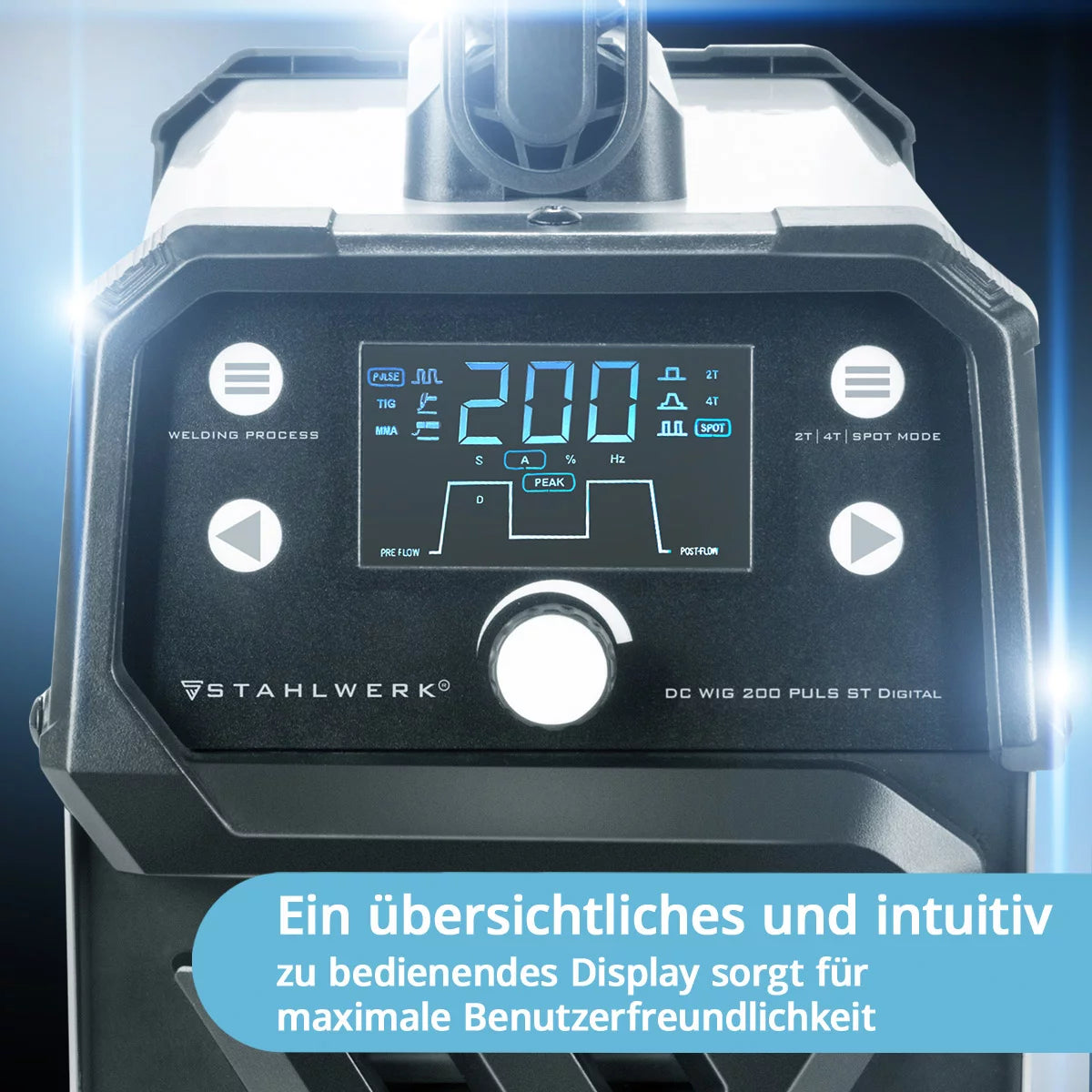

  • The set welding parameters can be easily read on a clear digital LED display. The different modes can be quickly adjusted by the intuitive menu.
  • Job memory - memory option for self -configured settings / presets. There are 10 storage spaces available.

A notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through line -bound and emitted disturbance.

scope of delivery

  • 1 x steel mill welding machine DC WIG 200 PULS ST Digital

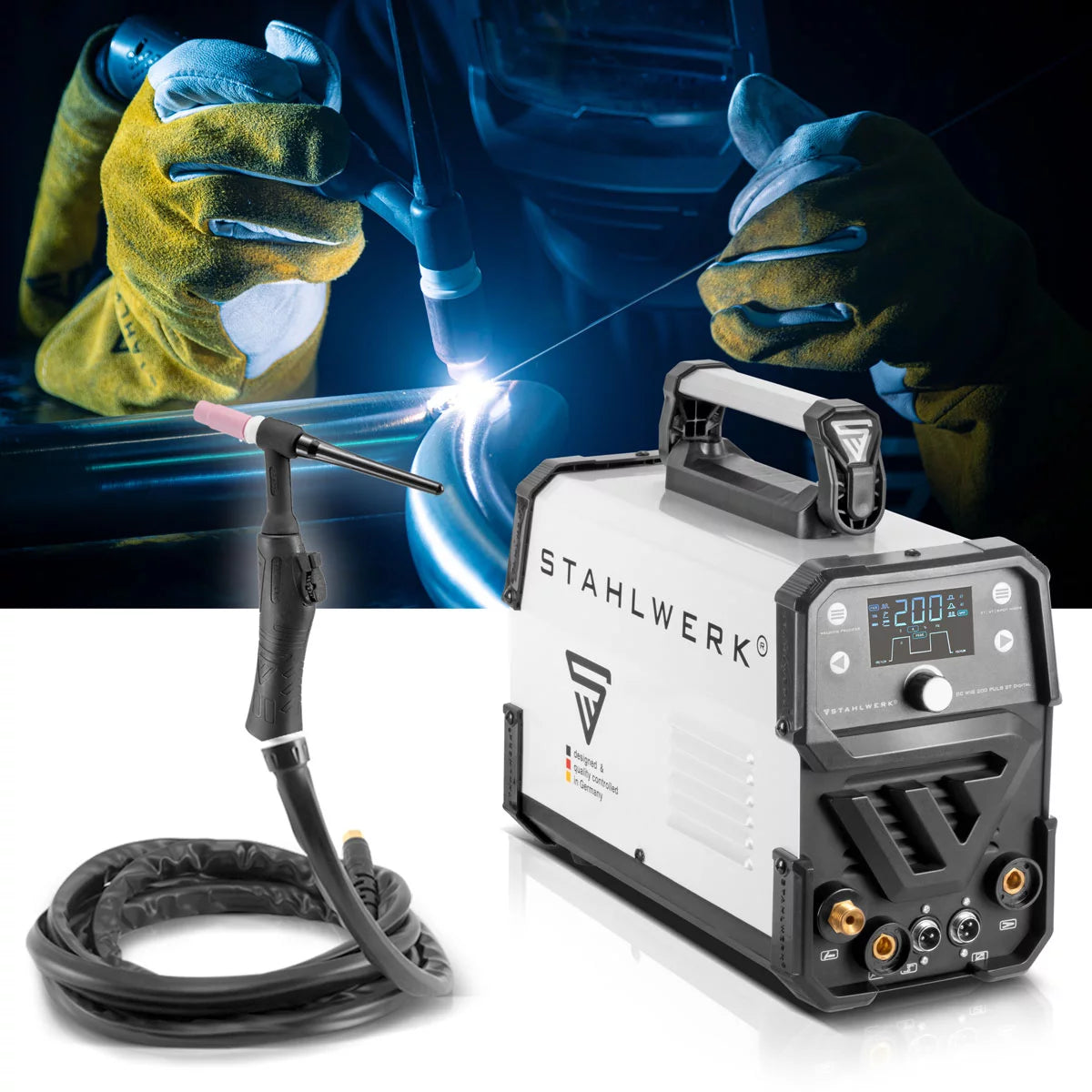

  • 1 x professional WIG welding burner WP-26F / hose package 3 meters, ball joint and flexible burner head
  • 1 x Wig Tig accessory set 8 parts: 3 x gas nozzles Sizes: 5, 6, 7, 1 x clamping sleeve size 1.6, 1 x clamping sleeve housing size 1.6, 2 x burner cap-a short and a long, 1 x universal tungsten electrode 1.6 mm
  • 1 x mass cable 3 meters
  • 1 x wire brush
  • 1 x gas connection hose with 5 meter speed coupling
  • 1 x protective cover
  • 1 x WIG welding sticks ER70S-G3 steel / Ø 2.4 x 500 mm / 1 kg
  • 1 x welding sticks WIG ER307SI stainless steel upright Ø 1.6 mm x 500 mm
  • 1 x tungsten electrodes / welding electrodes WL15 gold 5 x 1.6 mm + 5 x 2.4 mm
  • 1 x pressure reducer
  • 1 x welding helmet worker 3-in-1 automatic welding helmet welding shield
