Steelwork Plasma cutting burner AG-60 / SG-55 hose package 5 meters to 70 amperes / plasma cutter

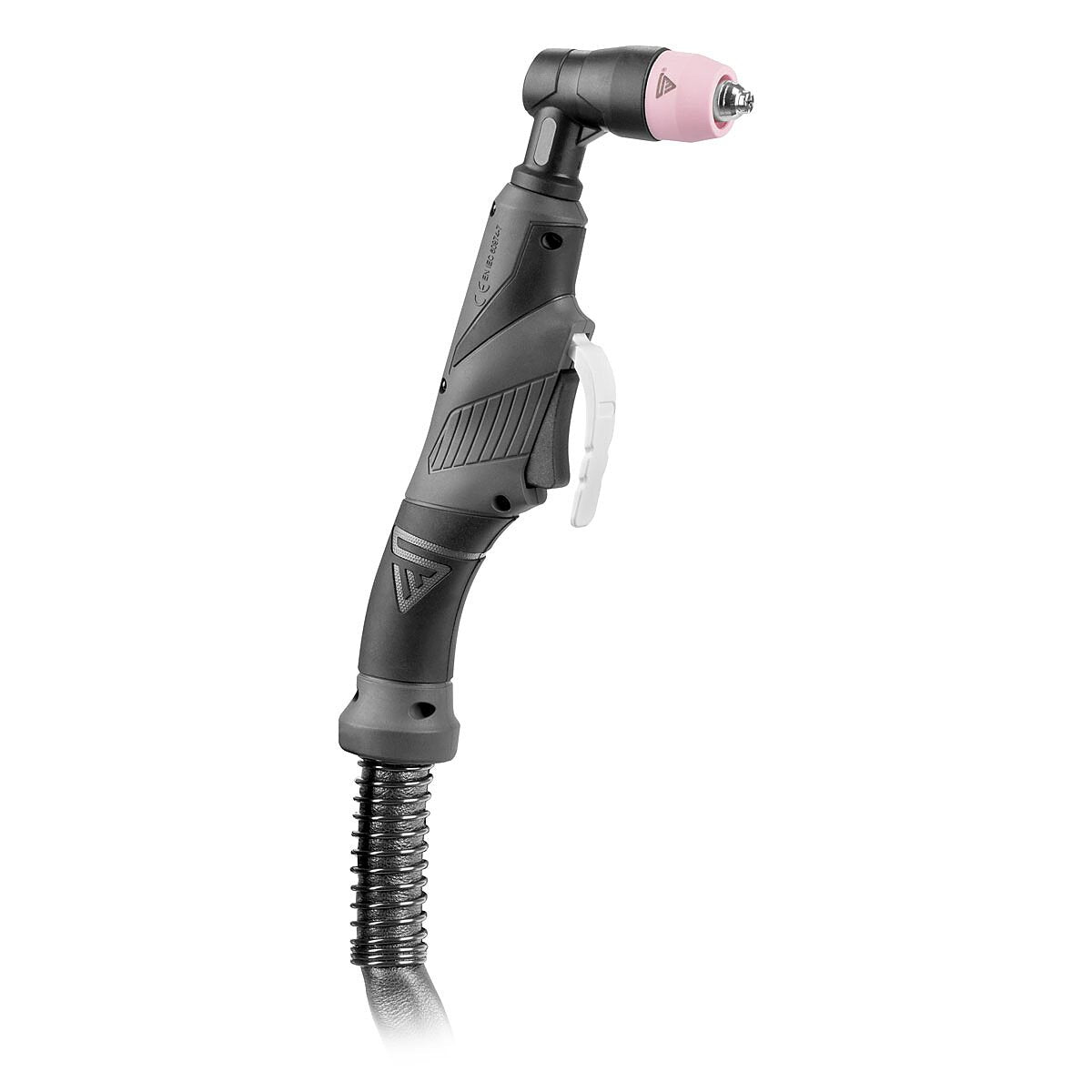

The air-cooled steel plant plasma grenner of type AG-60 is equipped with an air-cooled hose package and designed for a load of up to 70 amps. The 5 meter hose package has an integrated mass connection. This eliminates an additional connection connector and the hose is more robust. The switch contact for the ignition is established via a 2-pin connector. The plasma cutting burner AG-60 /SG-55 lies well in the hand and enables a longer, low-fat cutting. This hose package is suitable for the following device combinations or burners: WIG AC / DC 200 Puls Plasma / S series, DC combination devices CT-520 Plasma / S series, CT-50 puls Plasma / S series, CT-535 Plasma / S series, as well as with the plasma cutter CUT 40 S / -ST series, CUT 50 / CUT 50 S / -ST series, CUT 55 / S series /, CUT 60 / ST series, CUT 70 / S- Series (without a funding). The switching contact for the ignition is established via a 2-pin connecting plug. Our latest generation of the hose packages has a built -in mass connection in the hose. This eliminates an additional connection connector and the hose is more robust. The air flow can be up to 80/120 l/min. With a working pressure of 3 to 4.5 bar, the burner can be loaded up to 70 amps.
