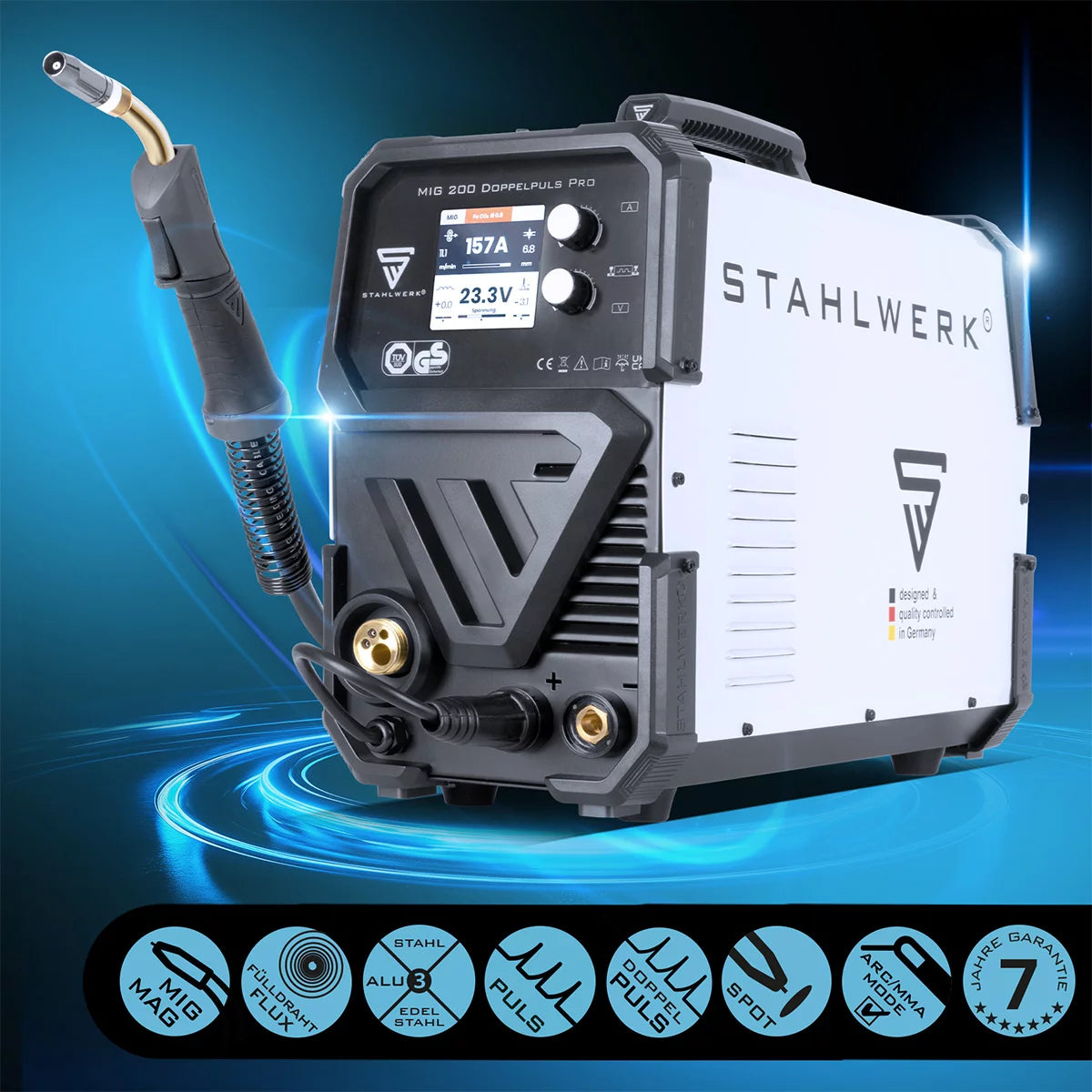

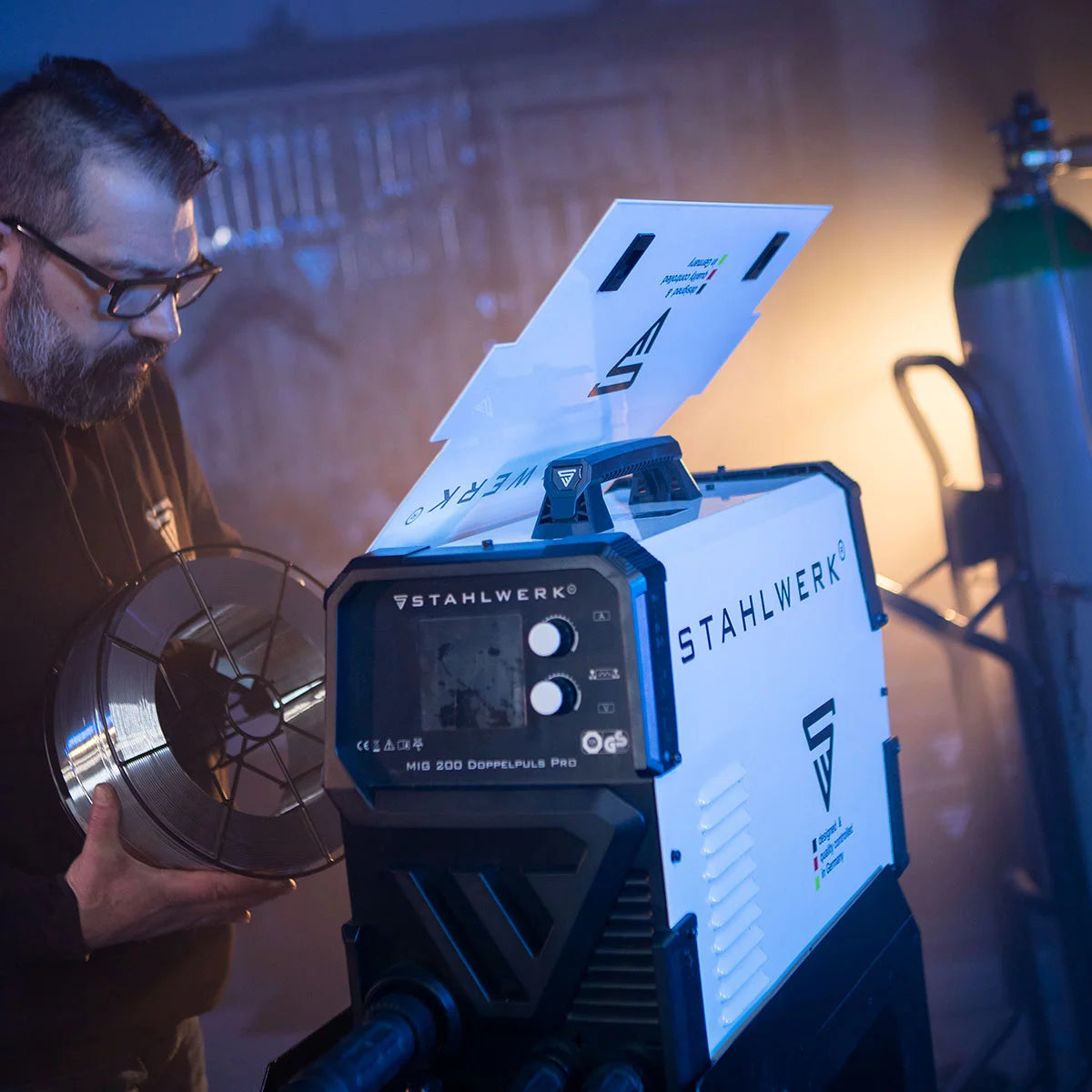

Stahlwerk MIG MAG 200 double pulse per fully synergic welding machine with 200 ampers and AK25/MB25 welding torch

• Extensive, double pulse function in the MIG welding prevents the burning of materials from burning at low root heights and reduces deformation by heat. Therefore, the MIG 200 double pulse per welding machine is particularly suitable for welding thin sheets and materials, which can only be heated.
• The MIG 200 double pulse Pro works on the basis of an advanced IGBT module with the latest inverter and control technology.
• With the MIG 200 double pulse per welding machine, non-, low and high-alloy steels such as steel, stainless steel and aluminum alloys can be processed and welded.

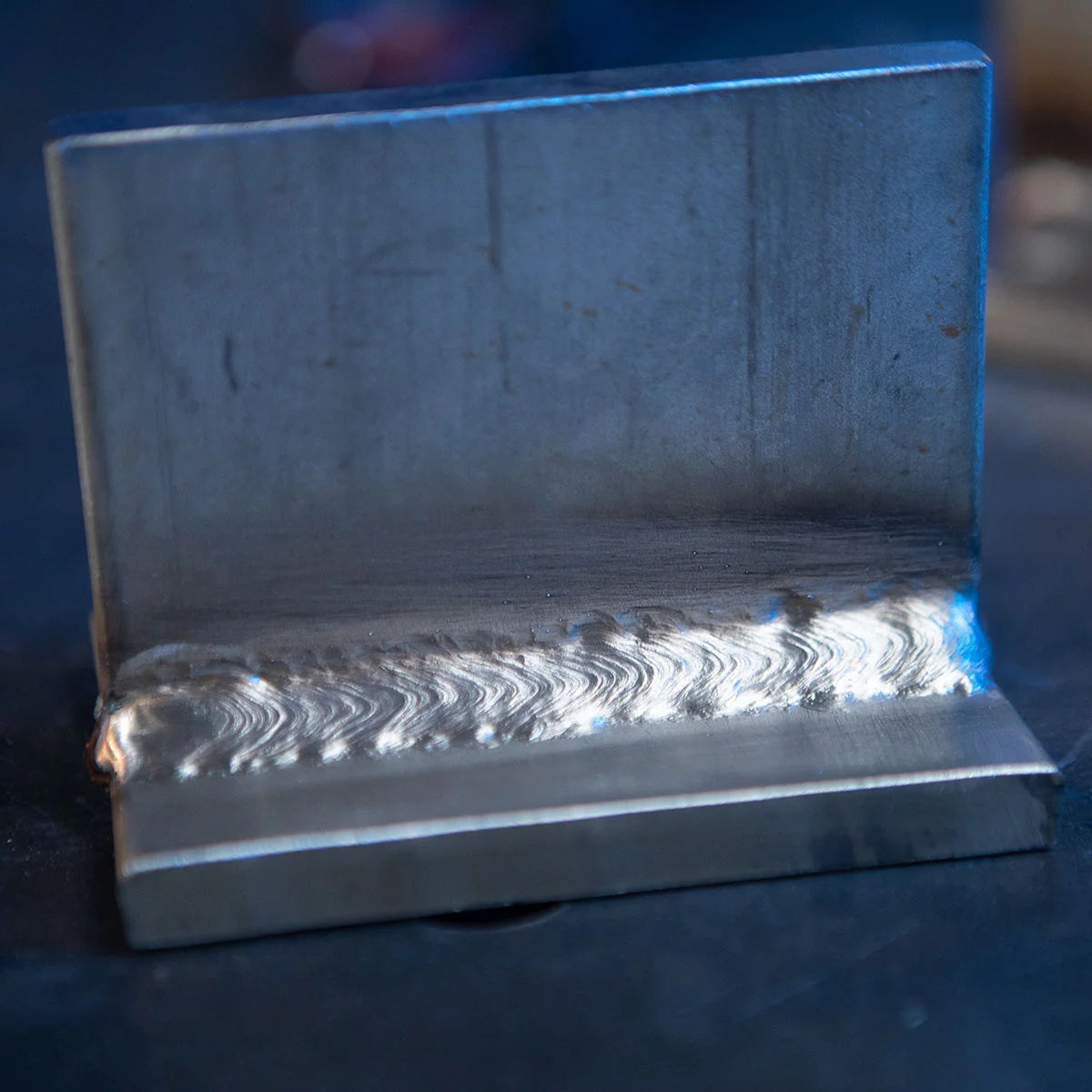

• Thanks to the pulse function and advanced burner ergonomics, welding work can be carried out in all known joint forms (blunt seams and throat seams) and positions (climbing seam, case seam, cross-seam).
• Comfortable selection of the operating modes twin, spot and permanent spot as well as other special welding functions.
• The welding device is suitable for using solid welding wire (steel, stainless steel; Ø 0.8 - 1.0 mm and aluminum; Ø 1.0 - 1.2 mm) and filling wire. This means that a wide variety of materials can be processed and welded.

• Universally usable 3 in 1 combination device. Mig, Mag and MMA welding is possible up to 200 amps.
• Built -in safety function to reduce voltage (Volt Reduction Device - VRD). To increase safety during welding, the U0 idle voltage is reduced to 14 volts in MMA mode. The welding device automatically recognizes the start of the welding process and then increases the idle voltage up to 62 volts. VRD is pre -set at the factory and cannot be switched off.
• Built-in job memory enables the setting of preferences and parameters to do recurring work efficiently and quickly. Jobs and parameters can be restored. This enables convenient work without a lot of time during the set -up times.
• The 2T/4T (MIG) mode allows control of the operating mode and offers extended control over the current course in special 2 and special 4 bar mode.
• Automatic wire feed for the precise regulation of the wire feed speed in direct dependency on the set welding current.

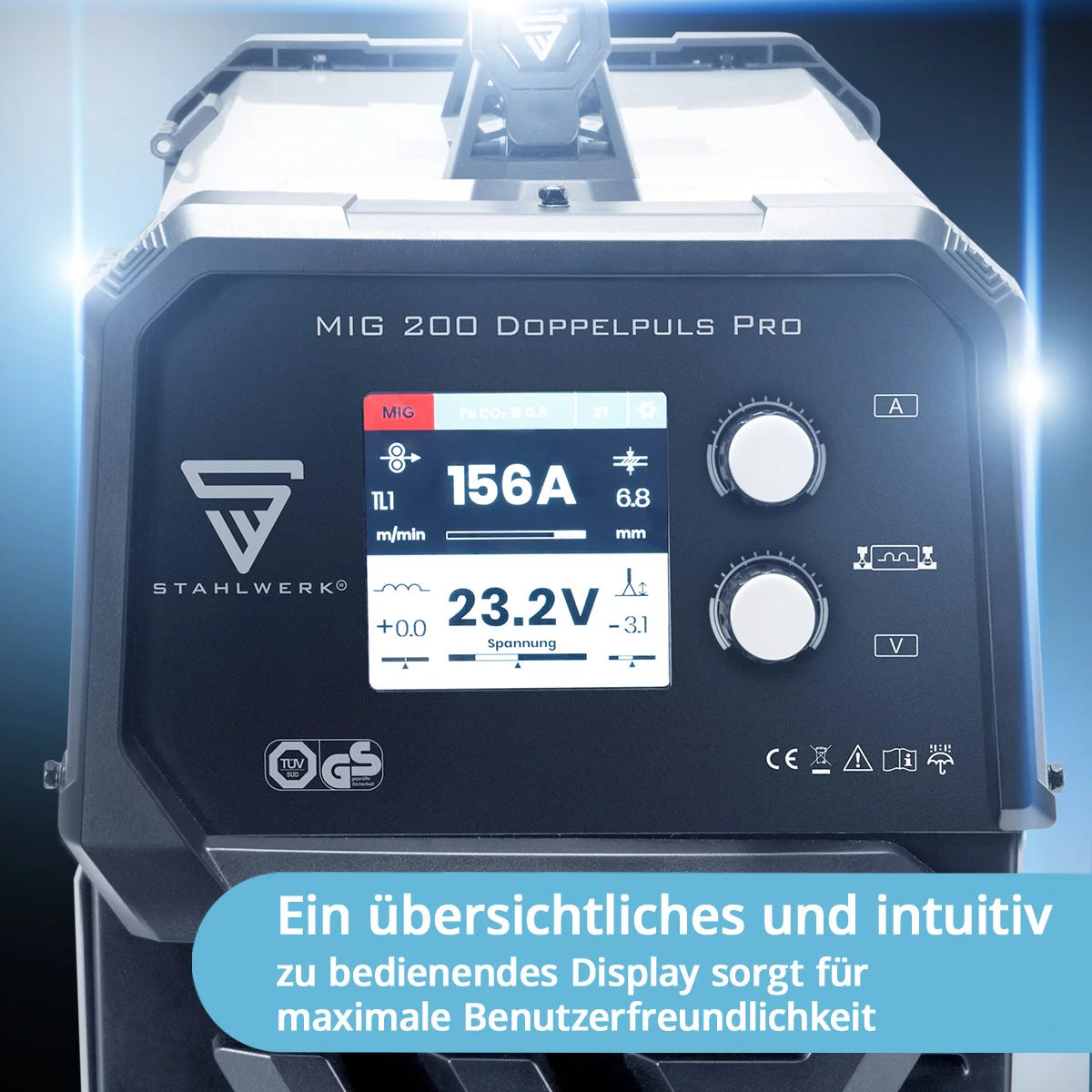

• Extensive setting options related to electricity and functions via intuitive graphics interface in the display.
• The device supplies the highest efficiency & performance - single -phase change current (230 V) and allows a output power of real 200 amps.
• Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance when welding.
• Suitable for use with the following protective gases: 100 % AR, 100 % CO2, 2 % CO2+ 98 % AR, 20 % CO2+ 80 % AR. This ensures efficiency, energy saving and a strong arc penetration with low deformations of welding.
• The roundworm ensures the friction-free absorption of 50 mm wire coils and is not suitable for 1 kg of wire rollers with 16 mm of rinse.

Notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through line -bound and emitted disturbance.

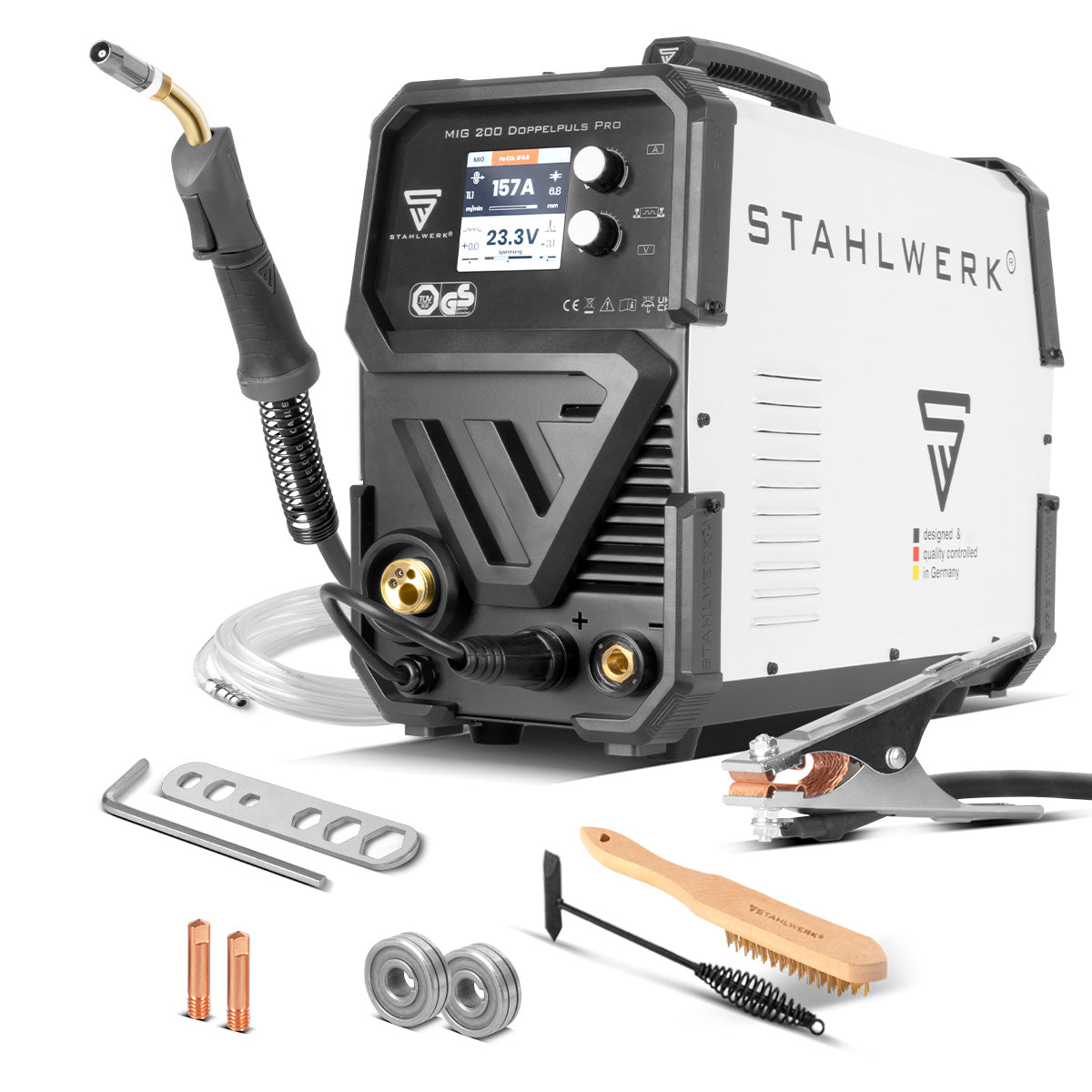

• 1 x steel mill MIG 200 double pulse per
• 1 x professional MIG welding burner AK-25 / hose package 3 meters with Euro central connection.
• 1 x MIG accessory set 3 parts (already pre-assembled on the MIG/MAG Brenner)
  - 1 x gas nozzle
  - 1 x power nozzle 0.8 mm
  - 1 x gas nozzle holder

• 1 x gas connection hose with 3 meter speed coupling
• 1 x mass cable 3 meters (25 mm² with 13 mm thorn)
• 1 x power nozzle M6 x 28 x 0.8 mm
• 1 x power nozzle M6 x 28 x 1.0 mm
• 2 x wire guide roll 0.8 & 1.0 mm with V-profile for steel (already installed in the device)
• 2 x wire guide roll 1.0 & 1.2 mm with a U-profile for aluminum
• 1 x wire brush
• 1 x assembly key
• 1 x protective cover
• 1x sockets fixed adapter
