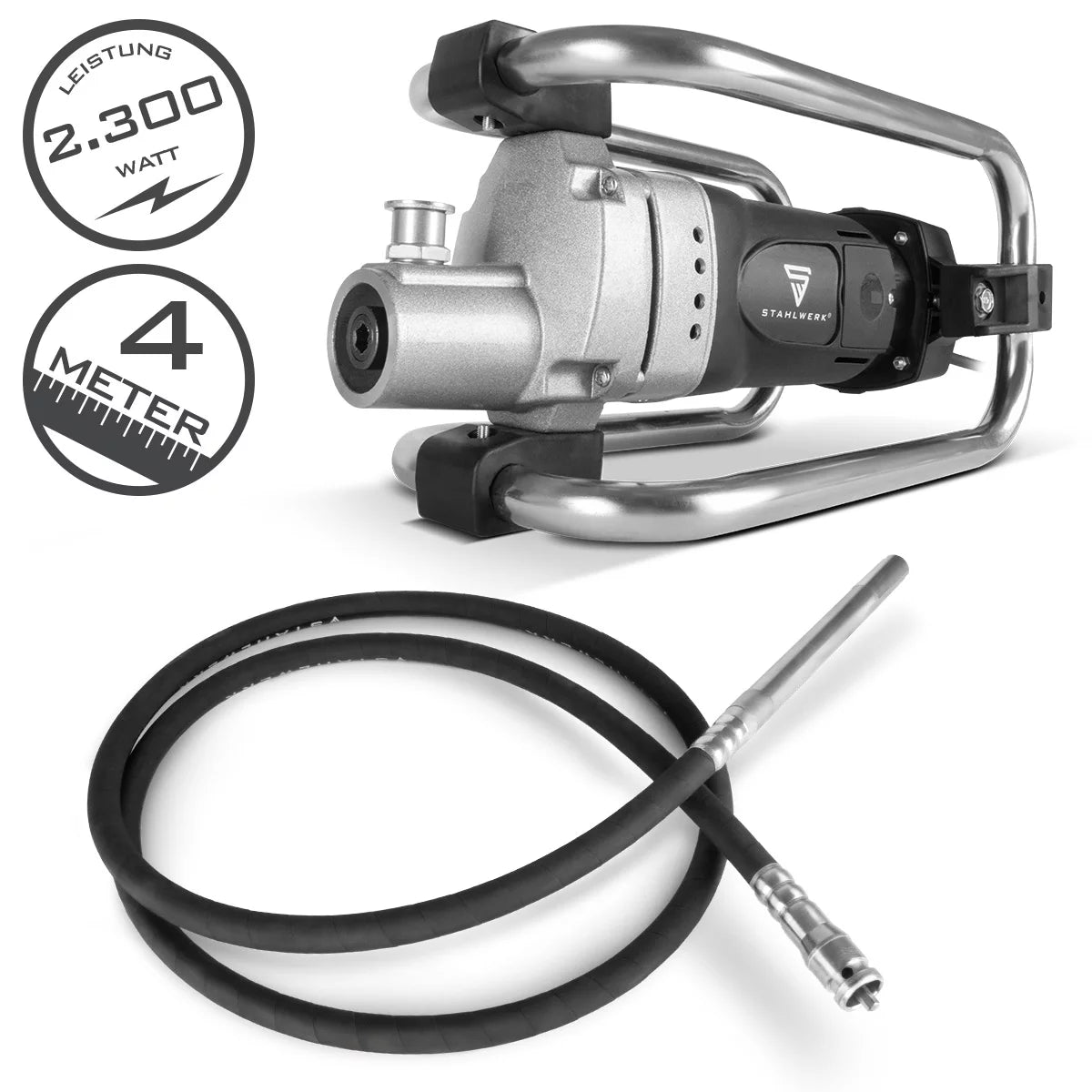

STAHLWERK BR-2300 ST concrete compactor | 2,300 watts with 4,000 rpm | Vibrating bottle Ø 35 mm | 400 cm hose length set | Strong concrete vibrator | Vibrating hose for walls, ceilings, foundations
Technical data
Technical data
| model | STAHLWERK BR-2300 ST concrete vibrator |
| Engine performance | 2,300 watts |
| Motor armature | 60mm |
| idle speed | 0-4,000 rpm |
| Mains voltage / frequency | 230V AC (+-15%) / 50Hz |
| Protection class | IPX4 (splash-proof) |
| Isolation class | Class II |
| Usable diameters of the vibrating bottle | 35mm/50mm |
| Usable hose lengths | 400cm, 600cm |
| Cable length | 200cm |
| Dimensions machine (L x W x H) | 400x200x200mm |
| Weight machine | 7kg |
| model | STAHLWERK vibrating bottle Ø 35 mm / 400 cm |
| Hose length | 4.0m |
| Bending radius max. | 400mm |
| Vibration tip diameter | 35mm |
| Connection diameter | 35mm |
| Length of vibration tip | 450mm |
| material | hardened steel, oil and acid resistant plastic |
| Weight | 7.9kg |
