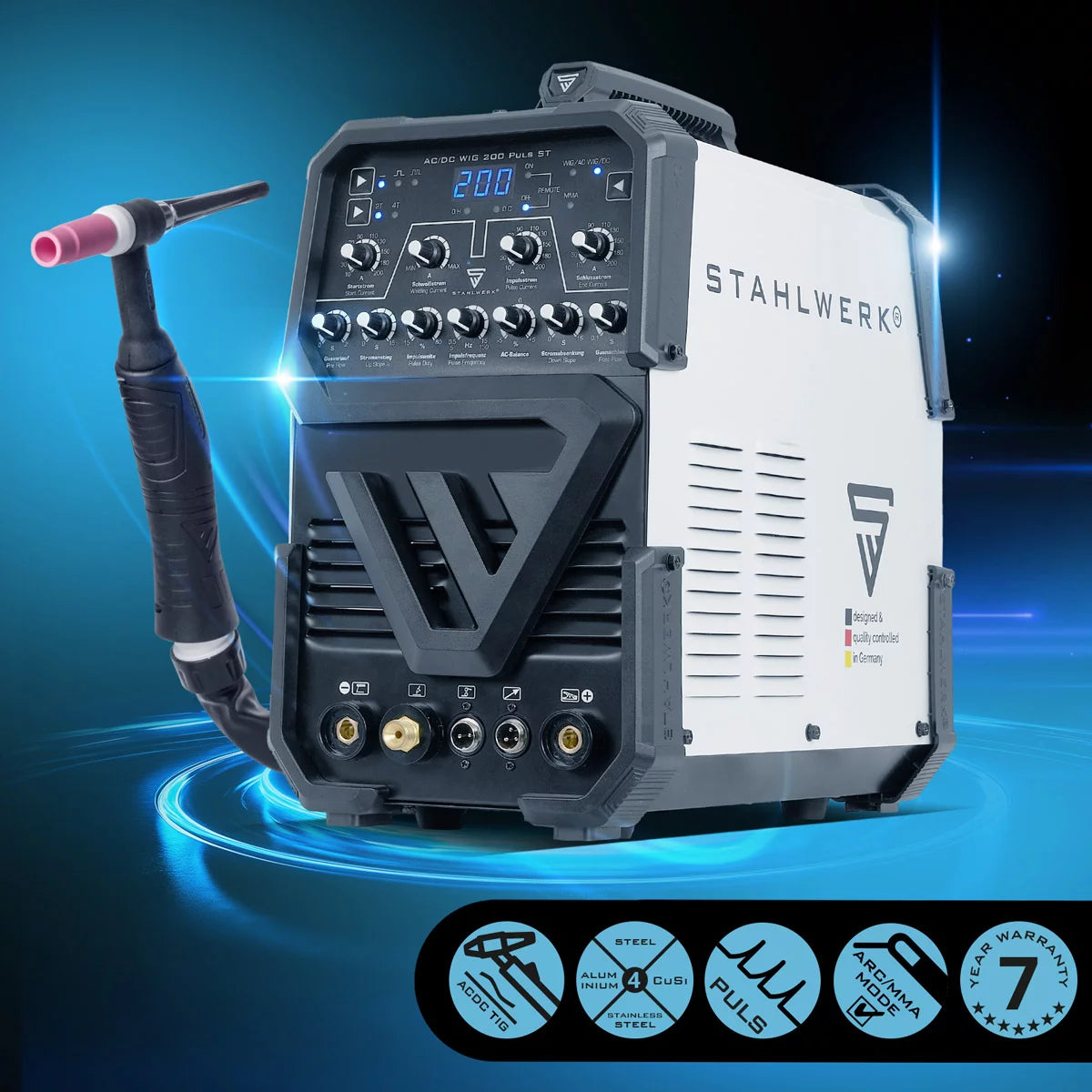

STAHLWERK AC/DC TIG 200 Puls ST fully equipped | 200 Amp TIG Welder | AC/DC TIG and MMA/E-hand combination inverter | 2T/4T mode | Thin sheet suitable | AC mode for aluminum

• AC/DC TIG welding - alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminum, copper and much more.
• 2 in 1 combination device - TIG & MMA welding is possible up to 200 A.
• Extensive pulse function - TIG PULS - prevents materials from burning through and reduces deformation due to heat, particularly suitable for welding thin plates whose material may only be heated slightly. Adjustable parameters are: pulse current, pulse width, pulse frequency, long and short pulse.
• IGBT technology - Latest and most modern transistor technology enables high performance when welding! No transformer, no MOSFET, state-of-the-art IGBT!

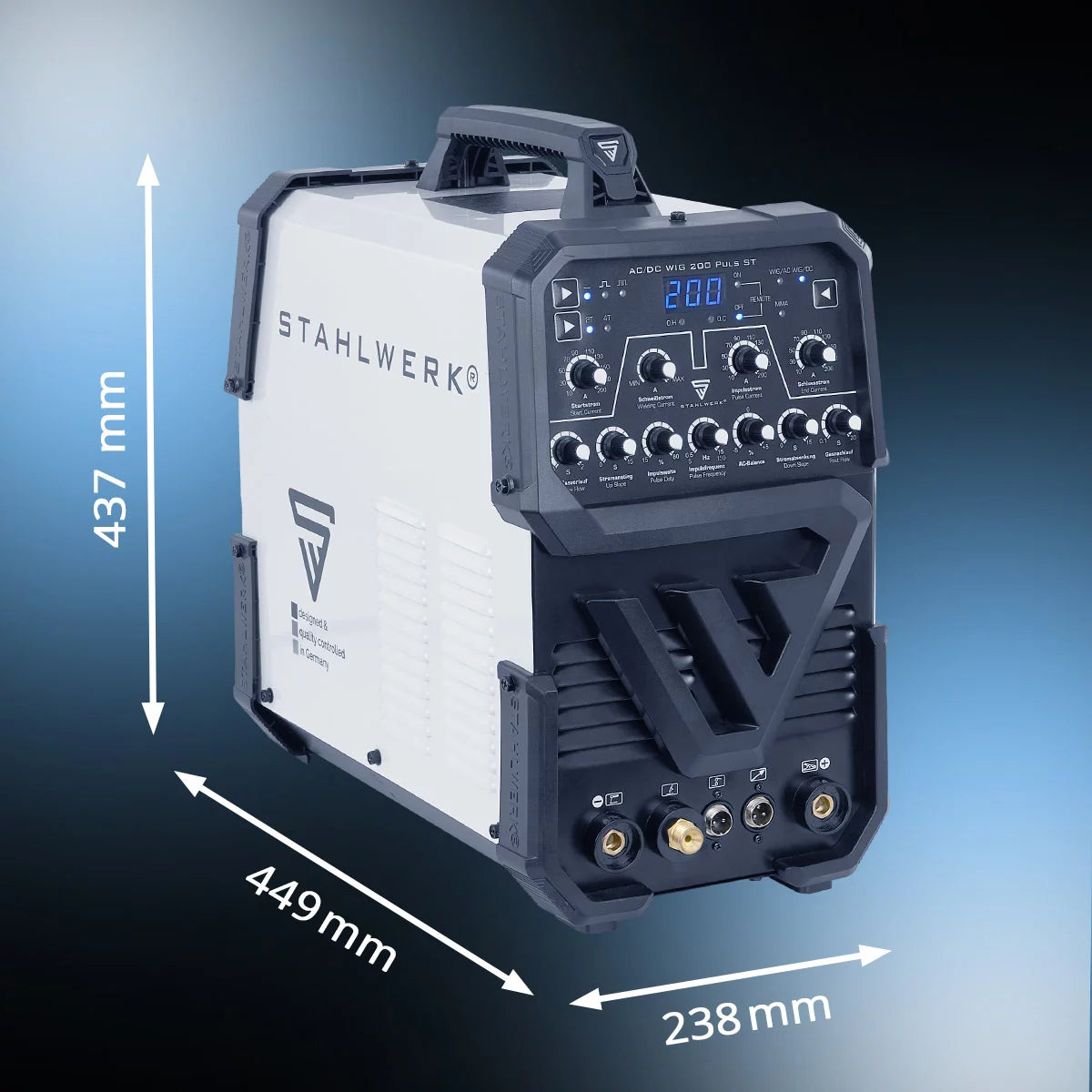

• Lightweight & compact design - only 12.7 kg weight and dimensions of 449 × 238 × 437 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
• HF ignition - enables contactless ignition and ensures a significantly better welding result. No LIFT ARC, no strike ignition!
• Highest efficiency & performance - Single-phase alternating current (230 V) supplies the device and allows an output power of real 200 amps.
• Attention - Bottle connection: W21.8 x 1/14" - Gas bottles from the Netherlands and Great Britain may have a different connection! Please check the connections for compatibility before purchasing!

• Smart cooling & overheating protection - State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance to be achieved.
• 2T/4T (TIG) - determines operating mode control and provides advanced control over current flow. In 2T mode, the high-frequency ignition (HF) remains active until the button on the torch is released. In 4T mode, the arc is ignited after pressing and releasing the button once. After pressing and releasing again, the ignition is stopped. Some functions such as power reduction are only possible in the 4T.
• Current increase/decrease - prevents the formation of voids (end craters) at the end of the weld seam.
• Gas follow-up (TIG) - protects the tungsten electrode from excessive wear and protects the weld seam from oxidation. The parameter can be set individually and separately. It indicates how long gas should flow after ignition.

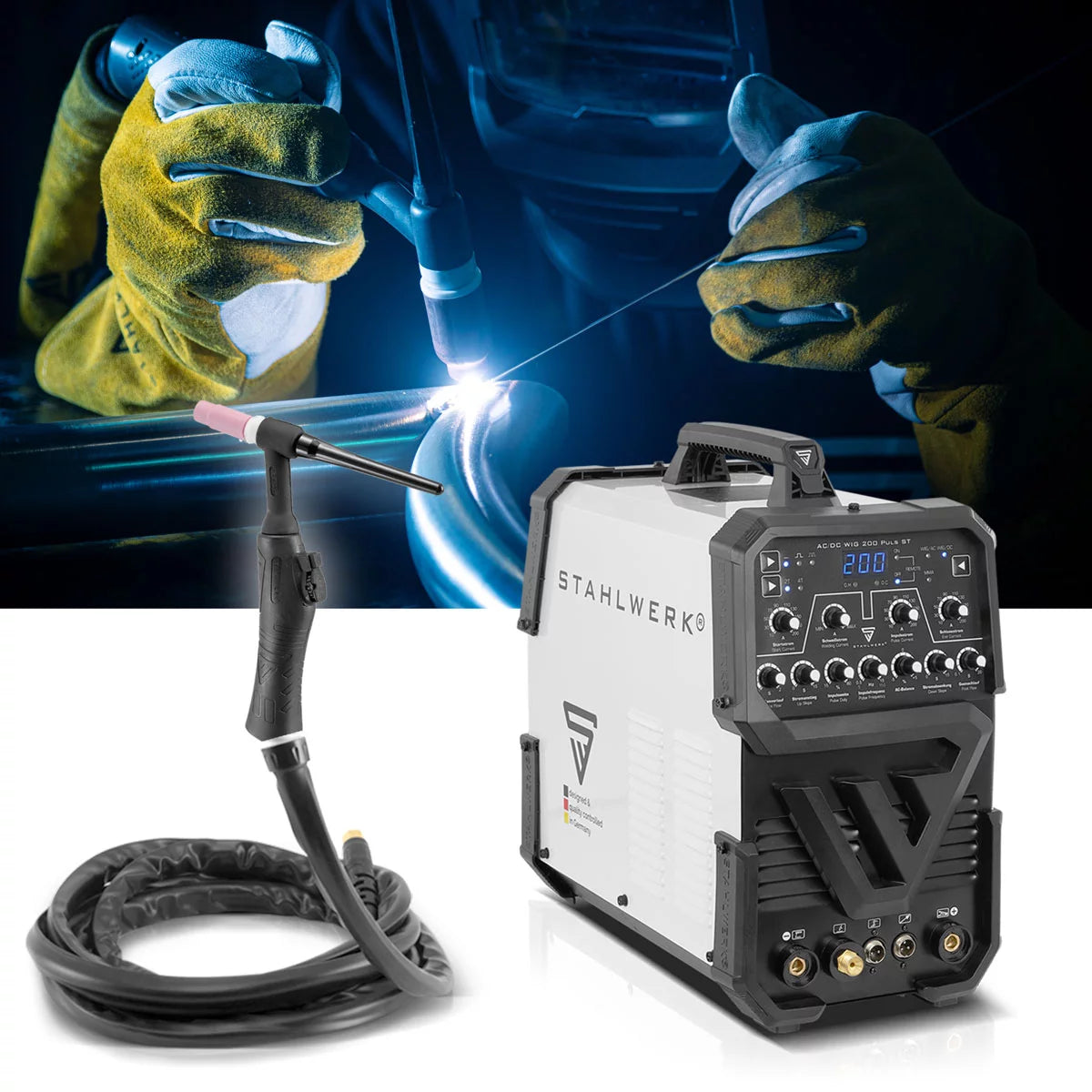

• Innovative hose package including modified WP-26 torch with flex head. The welding current is regulated using an adjustment wheel installed directly on the torch. The burner is connected to the hose package via a ball joint. This enables flexible and easy working.
• AC balance - is a variable setting between breaking up the oxide layer (-) and deeper penetration (+). This helps to influence the properties of different materials and alloys.
• Remote regulation via the included WP26FR torch, the welding current can be conveniently adjusted at any time using the rotary control mounted on the torch.

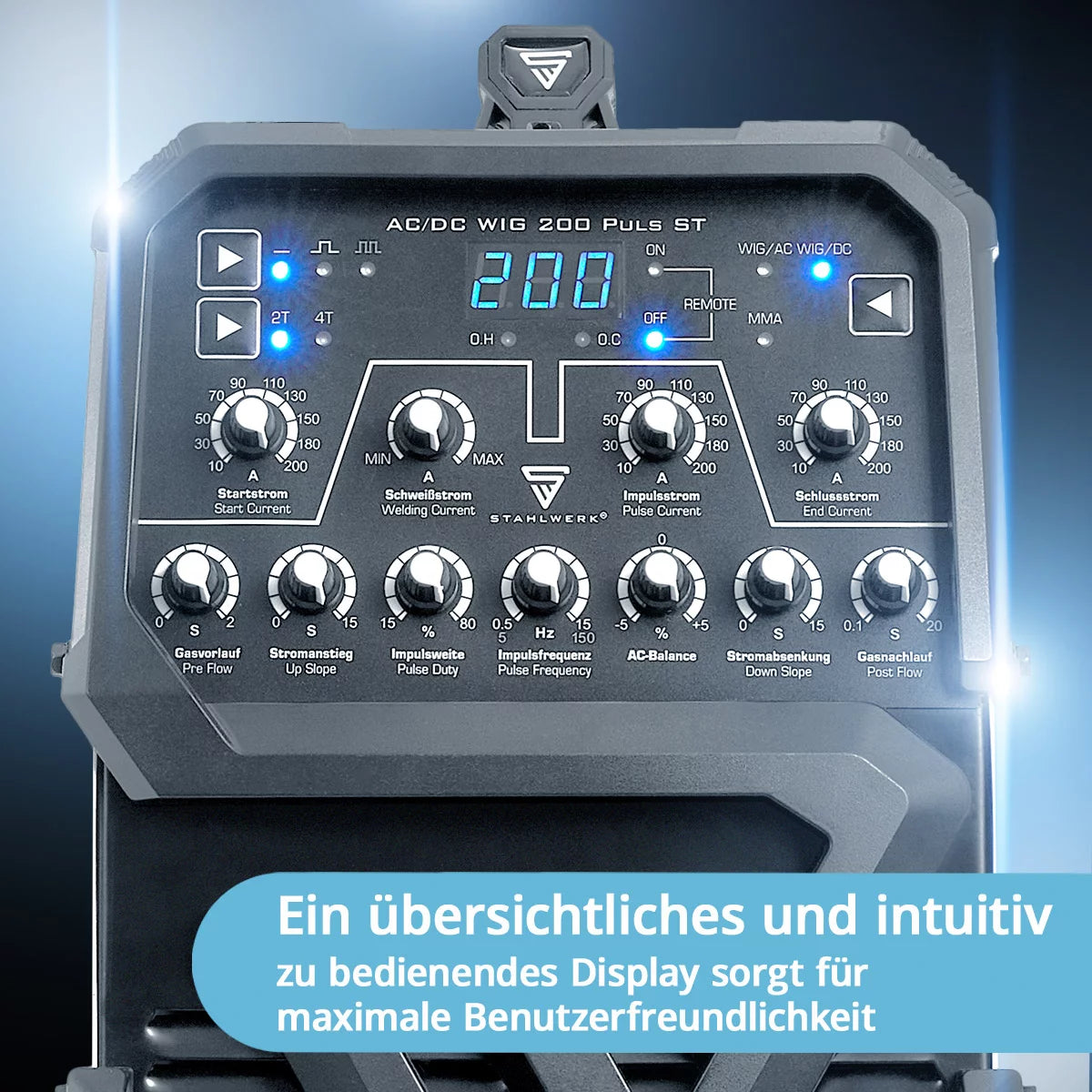

• Welding current / pulse current - Using the two buttons "welding current" and "pulse current" you can set two different current intensities for a welding process, between which the welding current always changes.
• Pulse width - The pulse width is used to set how long the welding current assumes the current strength of the pulse current before it swings back to the normal welding current strength.
• Pulse frequency - The pulse frequency determines how often the current intensity switches back and forth between the two set values ​​in a specified period of time.
• Longpuls - The weld seam becomes wider, the heat input is higher and the penetration is deeper.
• Shortpulse - The weld pool is easier to control and there is less risk of welding a hole in the sheet metal.
• Hotstart - Automatic voltage increase at start for better ignition results.
• Anti-Stick - Automatic shutdown of the welding current if the electrode sticks allows for easy removal.
• TIG (tungsten inert gas) - inert gas welding with inert/inactive gases such as Argon 4.6 (99.996%). An arc is created in an argon bell between the tungsten electrode and the workpiece. This melts the material and any additional material that may be added. A weld seam is created.
• MMA electrode welding / ARC welding - a universal welding process. An electric arc melts the electrode, forming the weld seam. No protective gas is required.

Note: The device is not intended for use in residential areas where power is supplied from a public low-voltage power supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

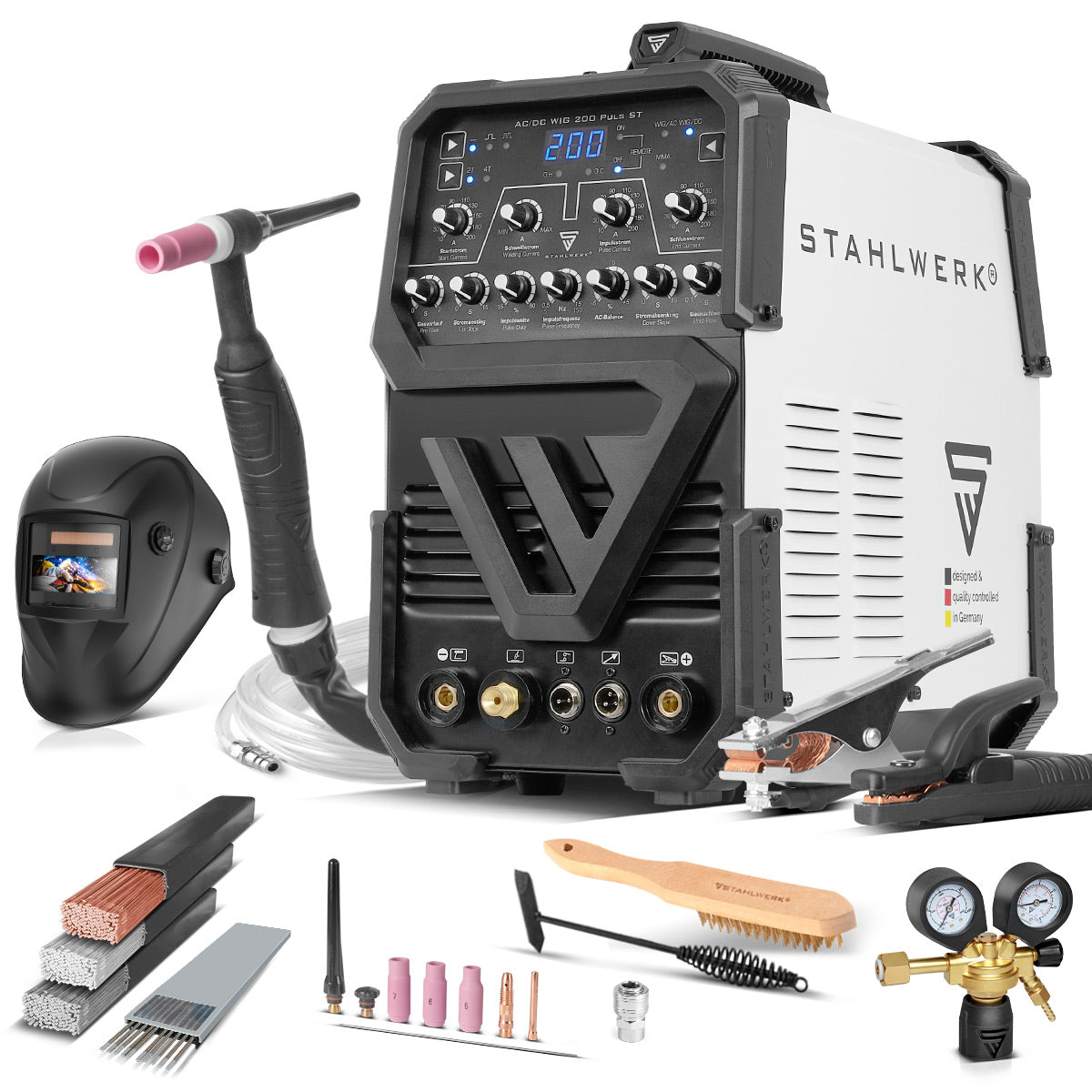

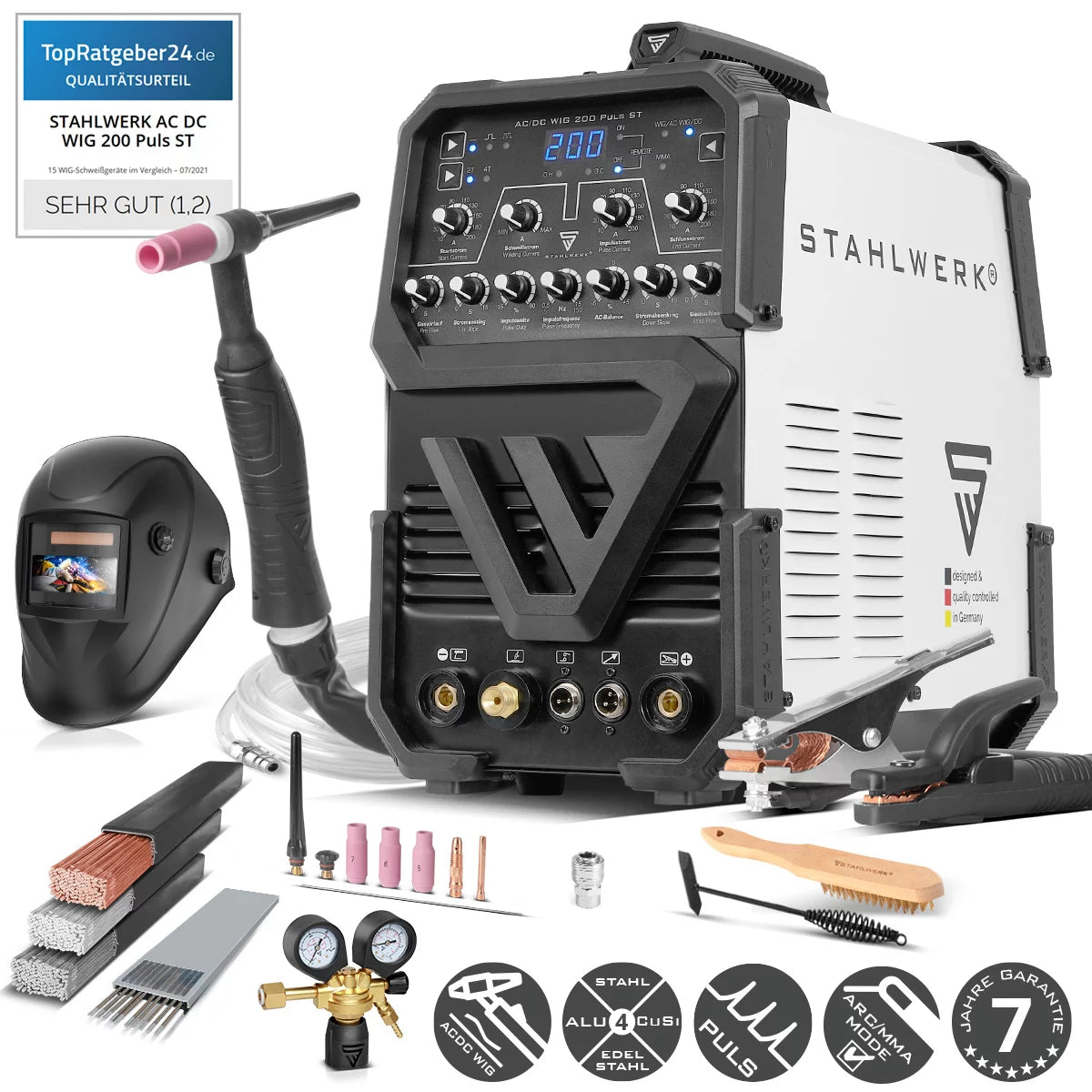

• 1 x STAHLWERK AC/DC TIG 200 Pulse ST
• 1 x professional TIG welding torch WP-26FR / hose package 3 meters* with adjustment wheel for remote control of the welding current on the handle and flexible torch head
• 1 x TIG TIG accessory set, 8 pieces:
  - 3 x gas nozzle sizes: 5, 6, 7
  - 1 x clamping sleeve size: 1.6
  - 1 x adapter sleeve housing size: 1.6
  - 2 x burner caps - one short and one long
  - 1 x Universal Tungsten Electrode

*Pre-assembled accessories shown in the welding torch picture are part of the 8-piece set.

• 1 x ground clamp cable length 3 meters
• 1 x electrode holder 3 meters
• 1 x Wire Brush
• 1 x Slag Hammer
• 1 x gas connection hose with quick coupling 5 meters
• 1 x quick coupling for gas pressure reducer (w.)
• 1 x Protective Case
• 1 x welding rod TIG ER70S G3 steel
• 1 x welding rod TIG ER307Si high-alloy stainless steel
• 1 x welding rod TIG addition ER4043Si5 aluminum
• 1 x Tungsten Electrodes/Welding Electrodes
• 1 x pressure reducer
• 1 x professional welding helmet
• CH fixed adapter 16A
