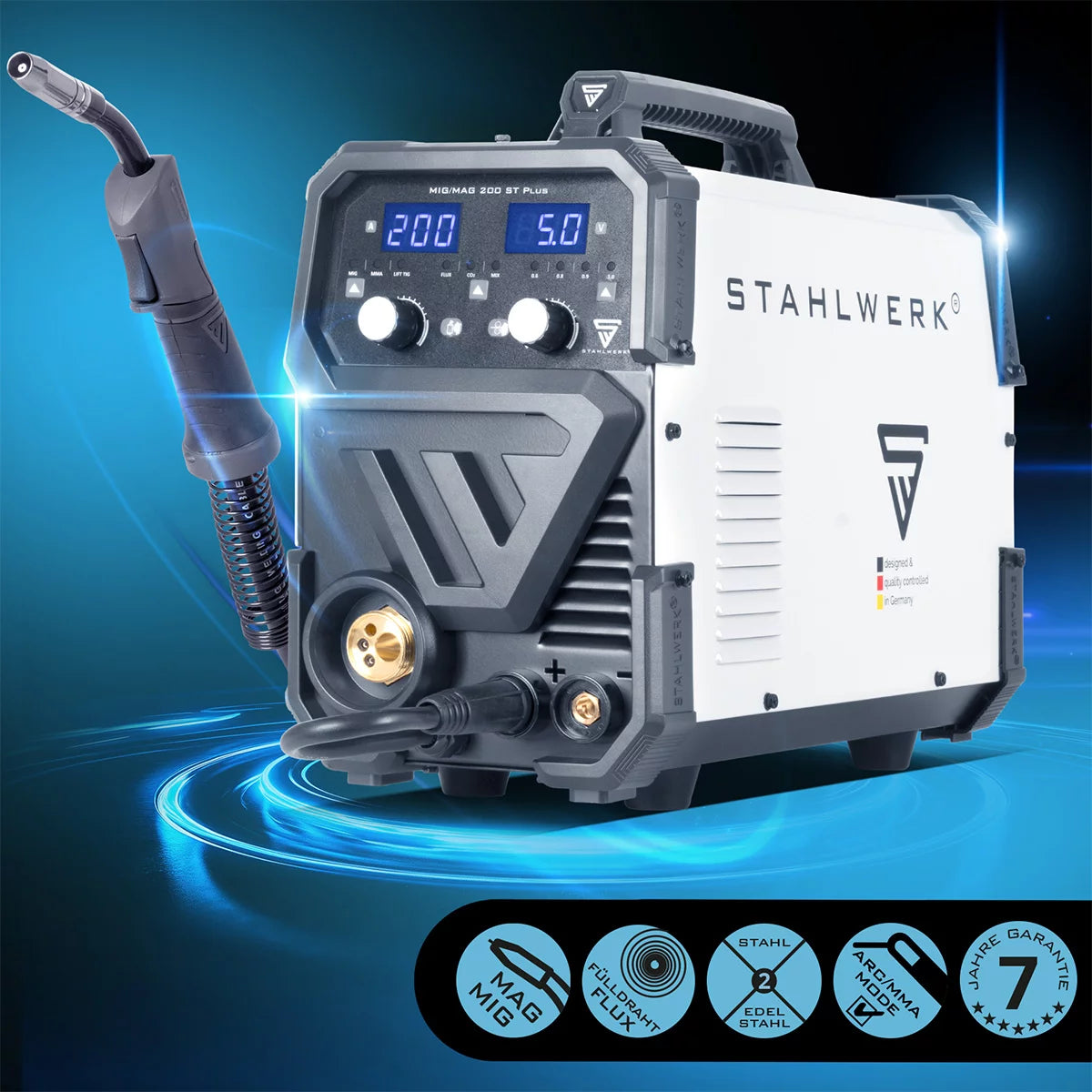

Steelworks welding machine MIG MAG 200 ST Plus full equipment Protection gas welding device | IGBT Inverter with 200 A, synergic wire feed, flux, lift-tig and MMA | ARC function

• MIG MAG - metal protection gas welding with DC (DC). It can be welded with inactive/inerts (MIG, e.g. Argon) or with active (MAG, e.g. Co2) gases. Gas and welding wire come from a burner head and enable welding work with just one hand.
• Synergian wire feed - the wire feed speed is controlled fully automatically via the welding current.
• Combi welding device- The welding machine combines the welding process MIG MAG / Flux / Lift-Tig- / MMA ARC in one device.
• IGBT Technology - the latest and most modern transistor technology enables the highest performance and switch -on duration (ED)! No transformer, no MOSFET, the most modern IGBT!
• The device supplies the highest efficiency & performance - single -phase change current (230V) and allows a output power of real 200 amps.
• Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance.
• Inductivity - continuously adjustable throttle, which smoothes the welding current and improves the quality of the welding and ignition properties.

• Anti-stick. In the event of a stipulated electrode on the workpiece, the welding current is automatically shut down. The electrode does not glow and is easier to solve from the workpiece.
• Hotstart - Automatic voltage increase when starting for better detonator results. Due to the short -term overlay of the set welding current, prevents the stable electrode from sticking and warms up the start of welding faster.
• Overheating protection - jumps as soon as the device is overloaded and expires as soon as the device cools down again.
• Smart cooling - a powerful fan enables the exhaustion of maximum switch -on duration through excellent cooling.

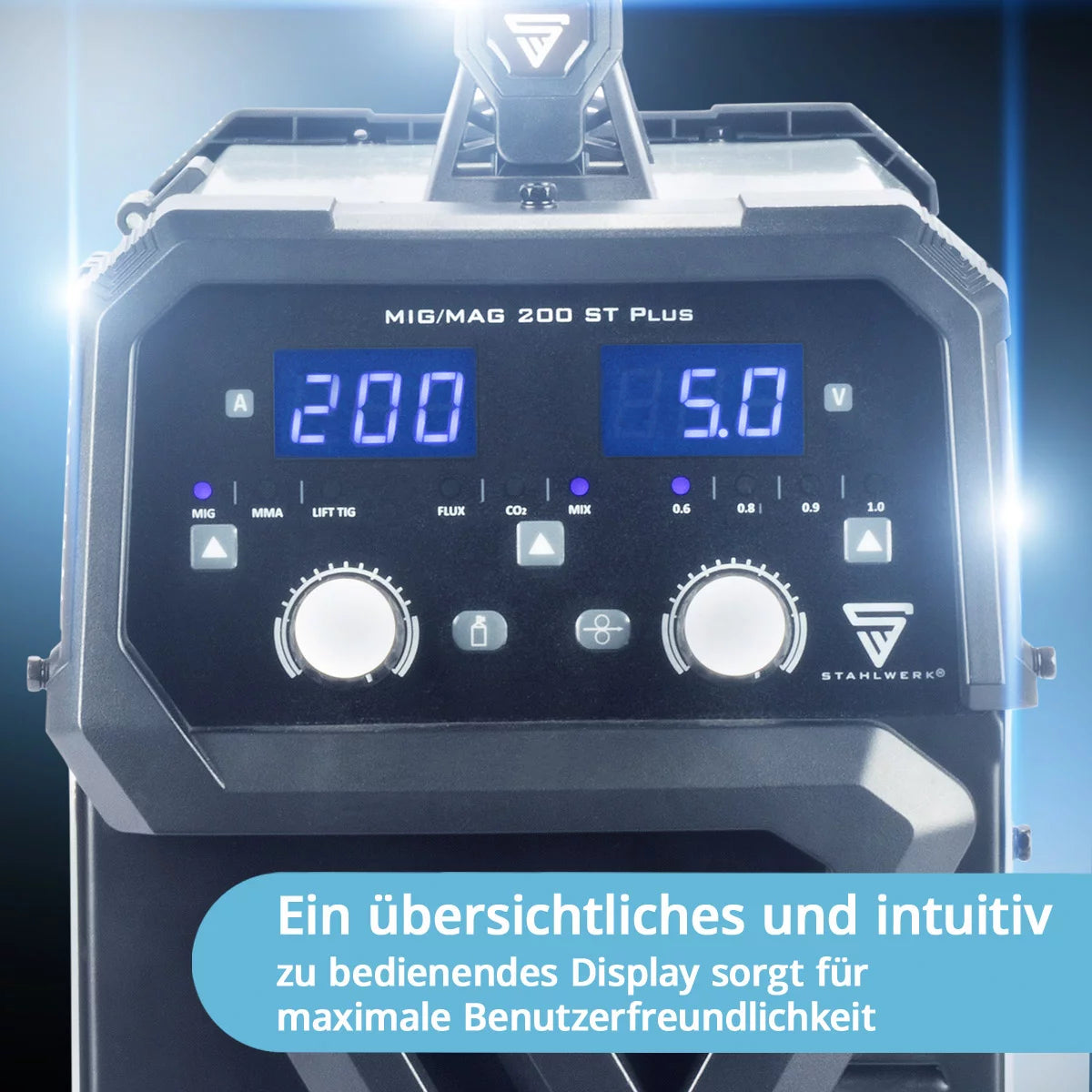

• ST-Guard housing-is ergonomic, robust and safe to operate. The control panel is conveniently accessible and can be operated intuitively.
• LED lighting-As a special highlight, the welding machine has an integrated LED light for illuminating the wire guide, which enables a quick change in the wire roll even in poor visibility. This automatically switches when the protective flap is opened.

A notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through a line -bound and emitted disturbance.

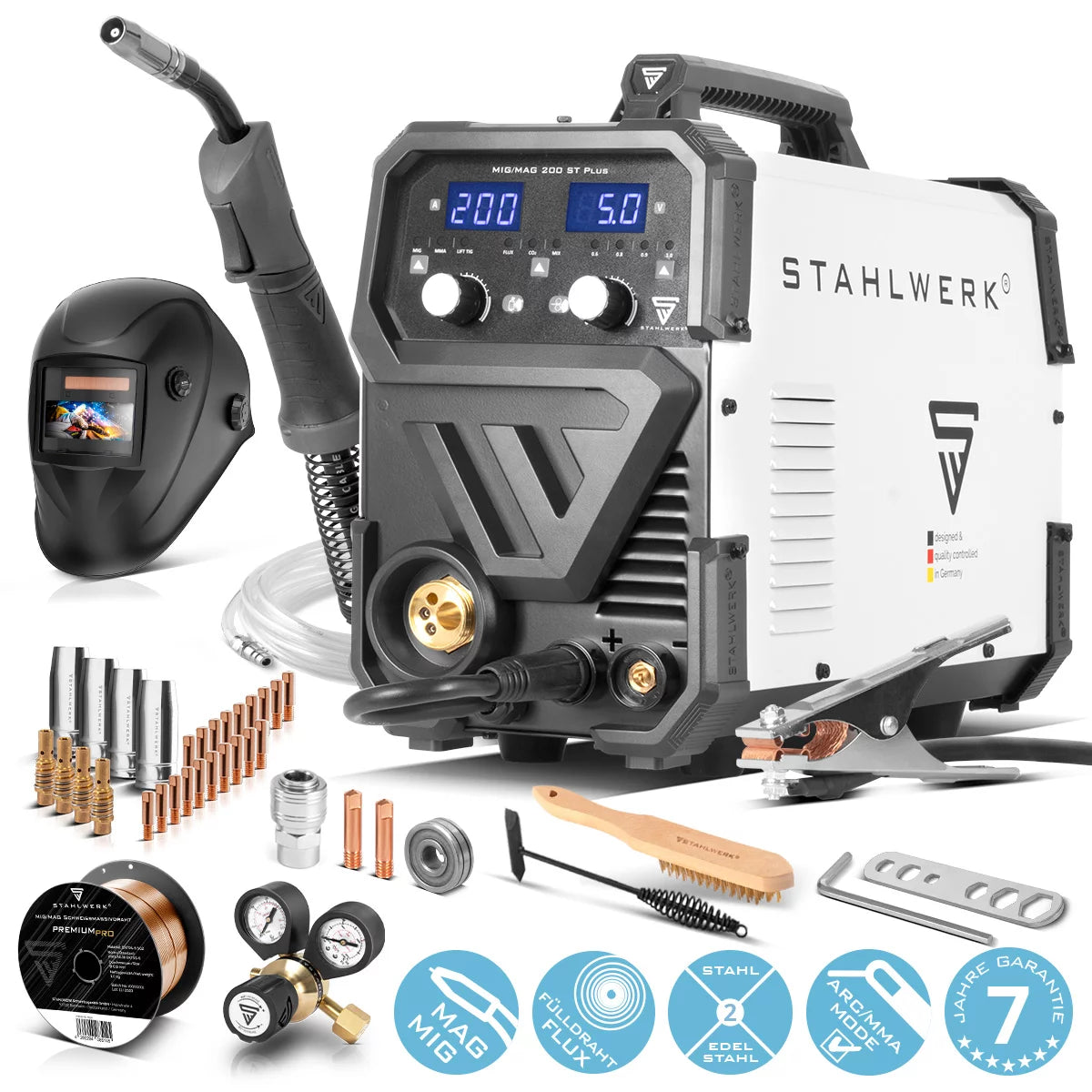

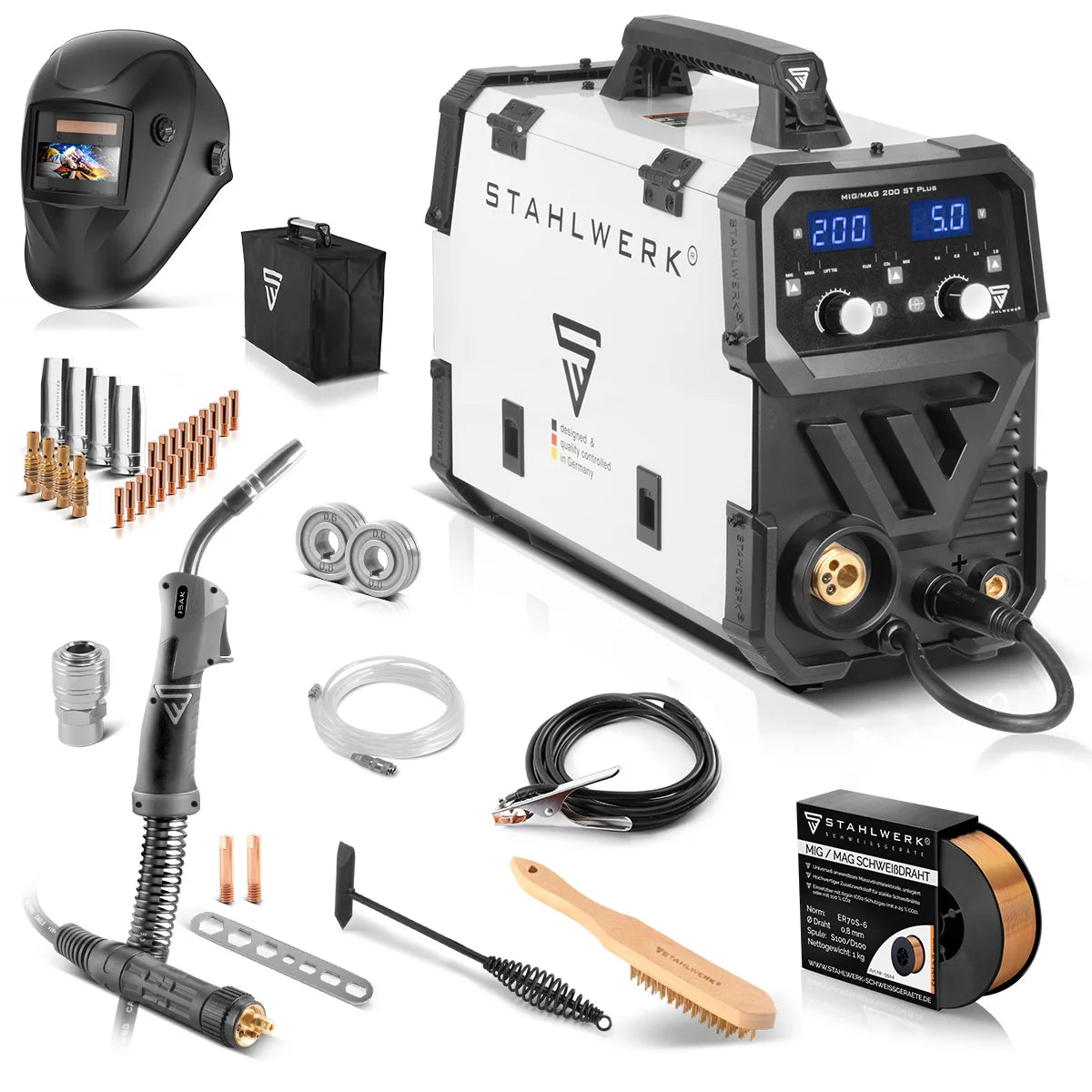

• 1 x STAHLWERK welding machine MIG/MAG 200 ST Plus
• 1 x professional MIG welding torch AK-15 / hose package 3 m with Euro central connection
• 1 x MIG accessory set, 3 pieces (this is already pre-assembled on the MIG/MAG torch):
• 1 x Gas Nozzle
• 1 x 0.8mm contact tip
• 1 x Gas Nozzle Holder
• 1 x ground cable 3 m
• 1 x gas connection hose with quick coupling 5 m
• 1 x connection set for pressure reducer
• 2 x contact tips 0.8 mm (pre-assembled once)
• 1 x 1.0mm contact tip
• 1 x Assembly Wrench
• 1 x Wire Brush
• 2 x wire guide rollers 0.8/1.0 mm (one is already pre-assembled)
• 1 x Protective Case
• 1 x MIG MAG AK-15 wearing parts set 28 pieces
• 1 x welding wire MIG/MAG steel Ø 0.8 mm ER70S-6 SG2 wire roll
• 1 x pressure reducer
• 1 x professional welding helmet
• Swiss fixed adapter 16A
