Steelworks welding machine ARC 200 ST IGBT-full equipment / DC MMA / E-Hand welding device / lift-tig Double Board / electrode welding device

SKU: 1796-1795VA
Sale priceCHF 269.00

The ARC-200 ST IGBT steel mill is a compact e-hand welding machine with a real 200 ampere. The advantage of the only 6.3 kg light current electrode welding device is that it is compactly built and yet very powerful. The ARC-200 ST steel mill has a hot start function that automatically increases the welding current at the start at the start and thus enables very good scorn results. Advanced IGBT technology enables top performance in e-hand welding. This performance is achieved by 12 IGBT transistors. If the electrode gluits, the welding current is automatically shut down thanks to the anti-stick function so that the electrode can be easily loosened from the welding site and does not glow. The ARC-200 ST electrode welding device is delivered with an extensive accessory package.
Free shipping in Switzerland and Liechtenstein!
30 day money back guarantee
Purchase on account

Functions

  • MMA electrode welding / ARC welding - a universal welding process. An arc makes the electrode melt and thus forms the weld seam. No protective gas is required and can therefore be used flexibly at any location.
  • With our WP-17V Universal Lift-Tig burner to a DC WIG welding device, expandable
  • IGBT Technology - The latest and most modern transistors technology enables the highest performance and switch -on duration (ED) at full power! No transformer, no MOSFET, the most modern IGBT!
  • Light & compact design -only 6.3 kg weight and dimensions of 390 x 170 x 275 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more difficult wear!
  • The device supplies the highest efficiency & performance - single -phase change current (230V) and allows a output power of real 200 amps.
  • IGBT-Double-Board-The ARC 200 ST has an IGBT double board. Due to the increased switching frequency of the IGBT transistors on the double board, the welding current remains thermally stable even with longer work cycles and enables a higher operating time.

Properties & advantages

  • Hotstart - Automatic voltage increase when starting for better detonator results. Prevents the stable electrode to stick to the stable electrode by short -term overlay of the set welding current and heat up the start of welding faster.
  • Anti -stick - automatic shutdown of the welding current when the electrode sticks enables easy removal. It also prevents the electrode from glowing.
  • Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance.
  •  Notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through line -bound and emitted disturbance.

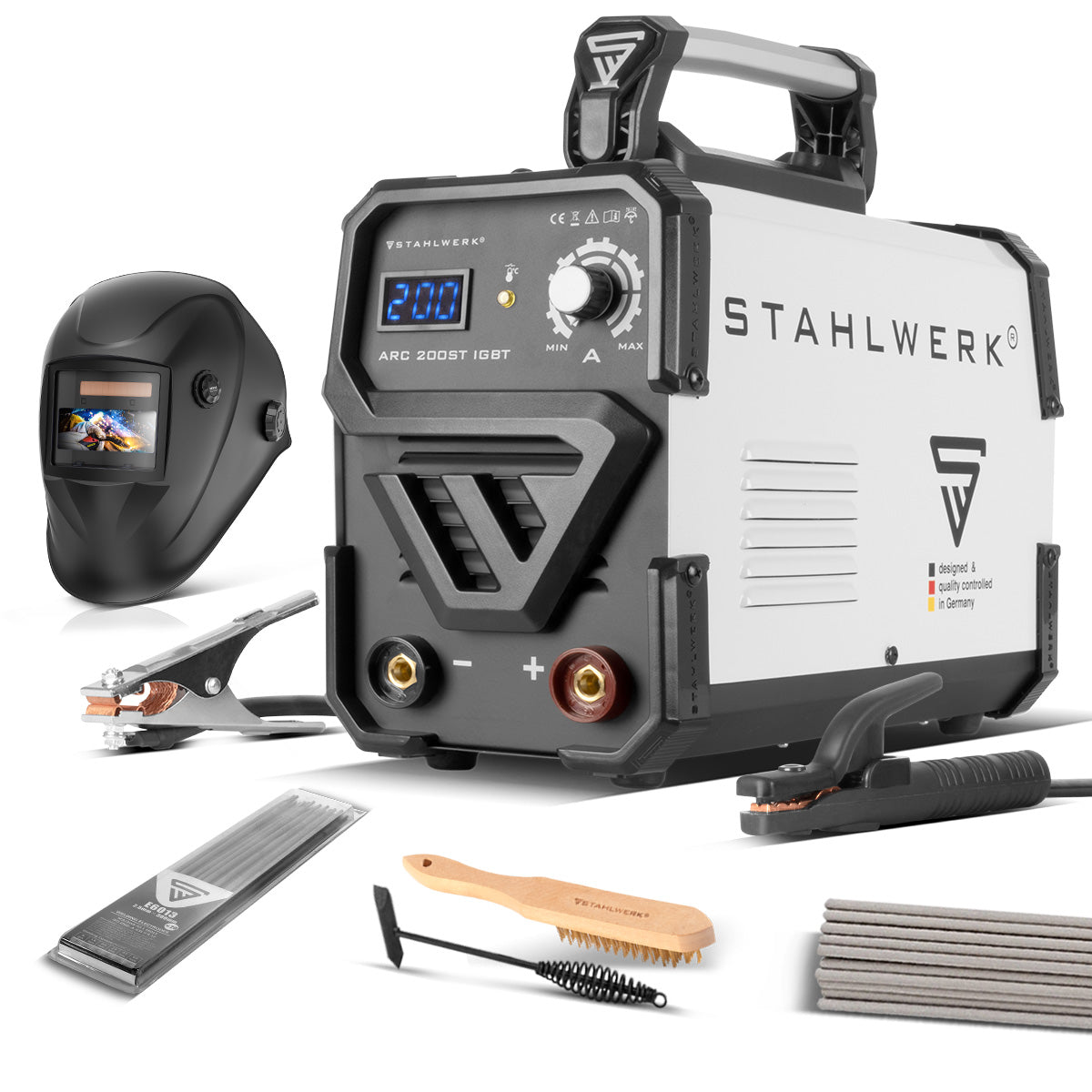

Scope of delivery

  • 1 x the welding machine Stahlwerk ARC 200 St IGBT
  • 1 x mass cable 3 meters
  • 1 x electrode holder 3 meters
  • 1 x 1 kg of stable electrodes (approx. 90 pieces)
  • 1 x protective cover
  • 1 x welding helmet worker 3-in-1 automatic welding helmet welding shield
  • 1x sockets fixed adapter 16A
