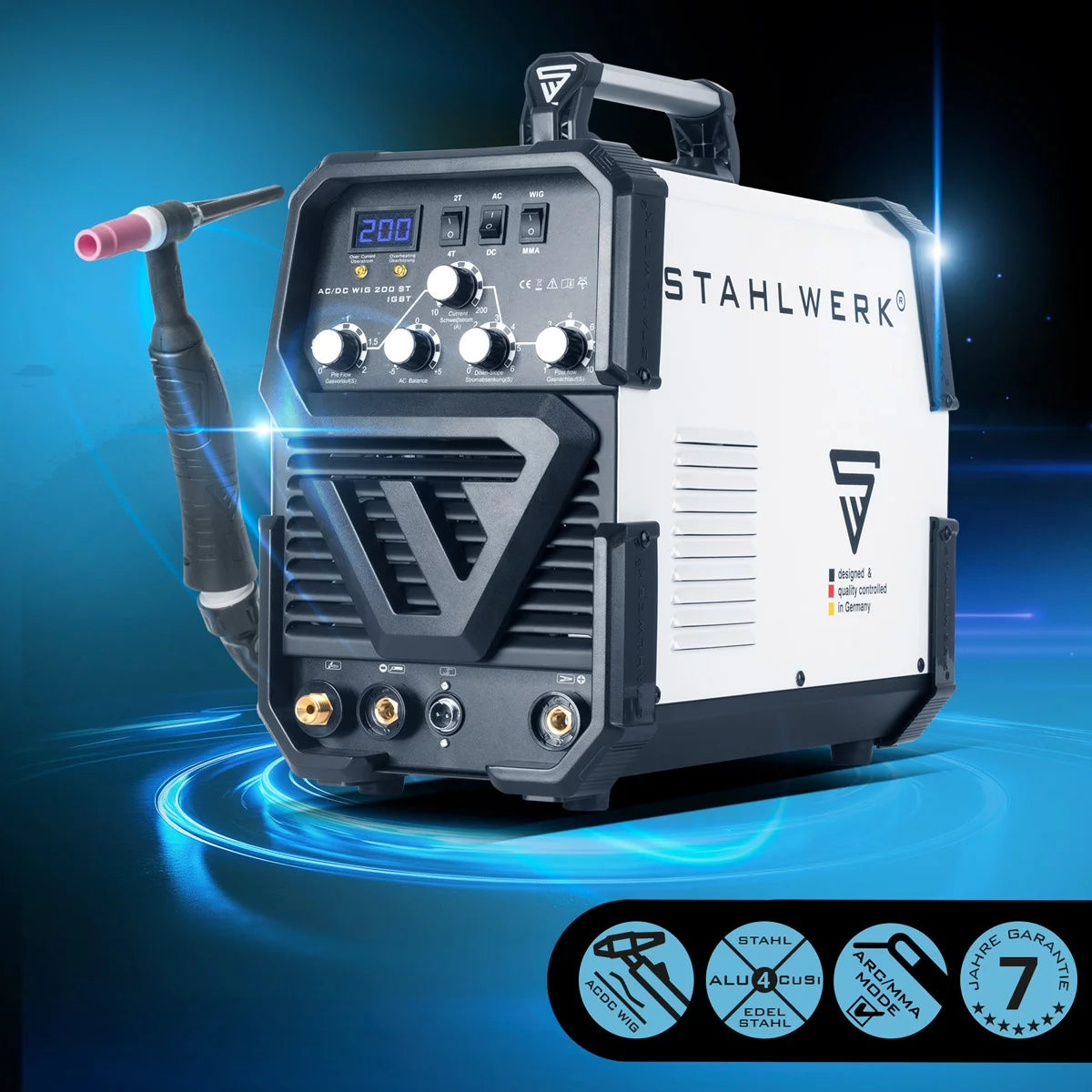

Steelworks welding machine AC / DC WIG 200 ST IGBT Full equipment / combination white device / station wagon welding system with 200 A WIG & MMA, aluminum Suitable

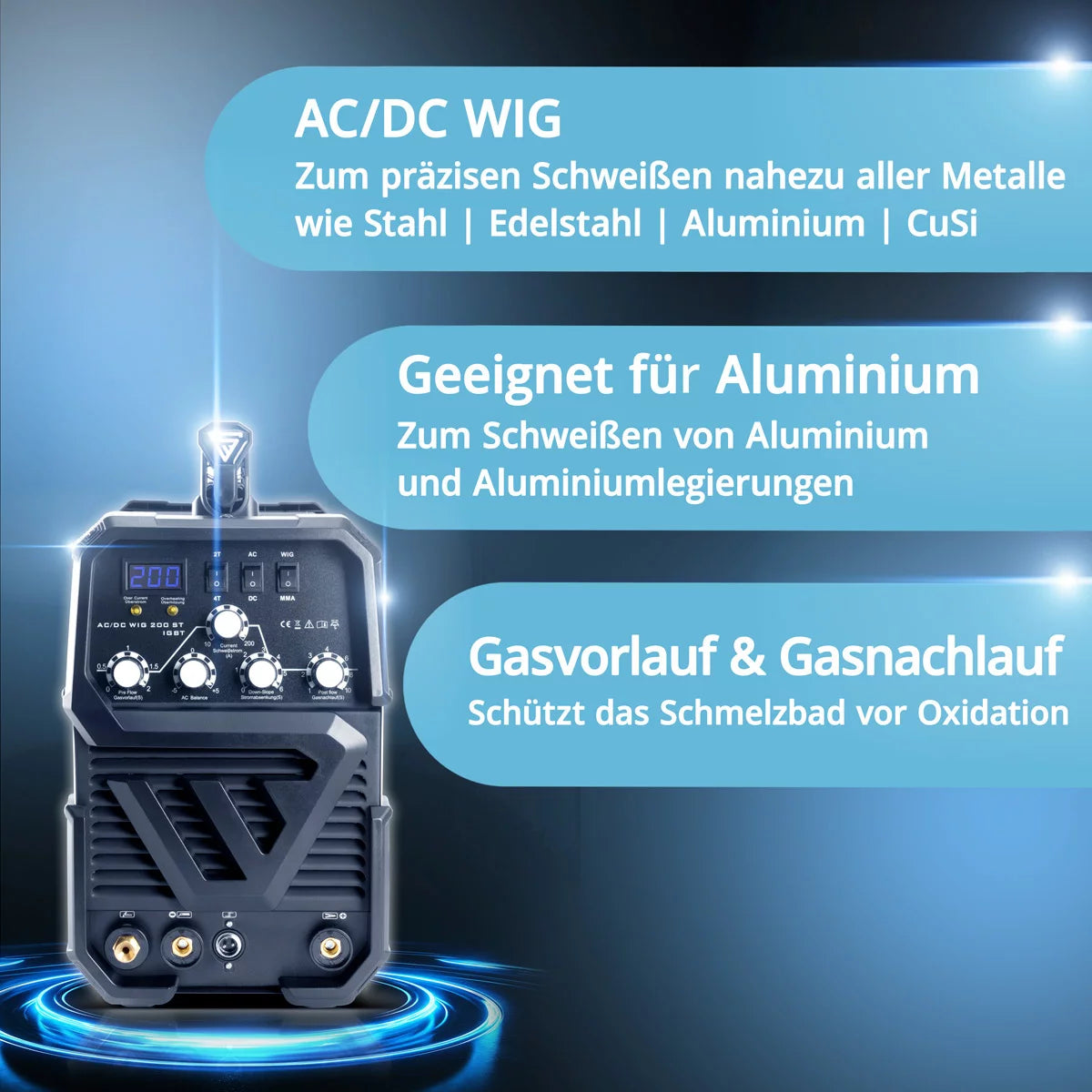

• AC/DC WIG welding change (AC) and DC (DC). Welding of almost all metals such as steel, stainless steel, aluminum, copper and much more.
• 2 in 1 combination device - WIG & MMA welding is possible up to 200a.
• IGBT technology - the latest and most modern transistors technology enables high performance when welding! No transformer, no MOSFET, the most modern IGBT!

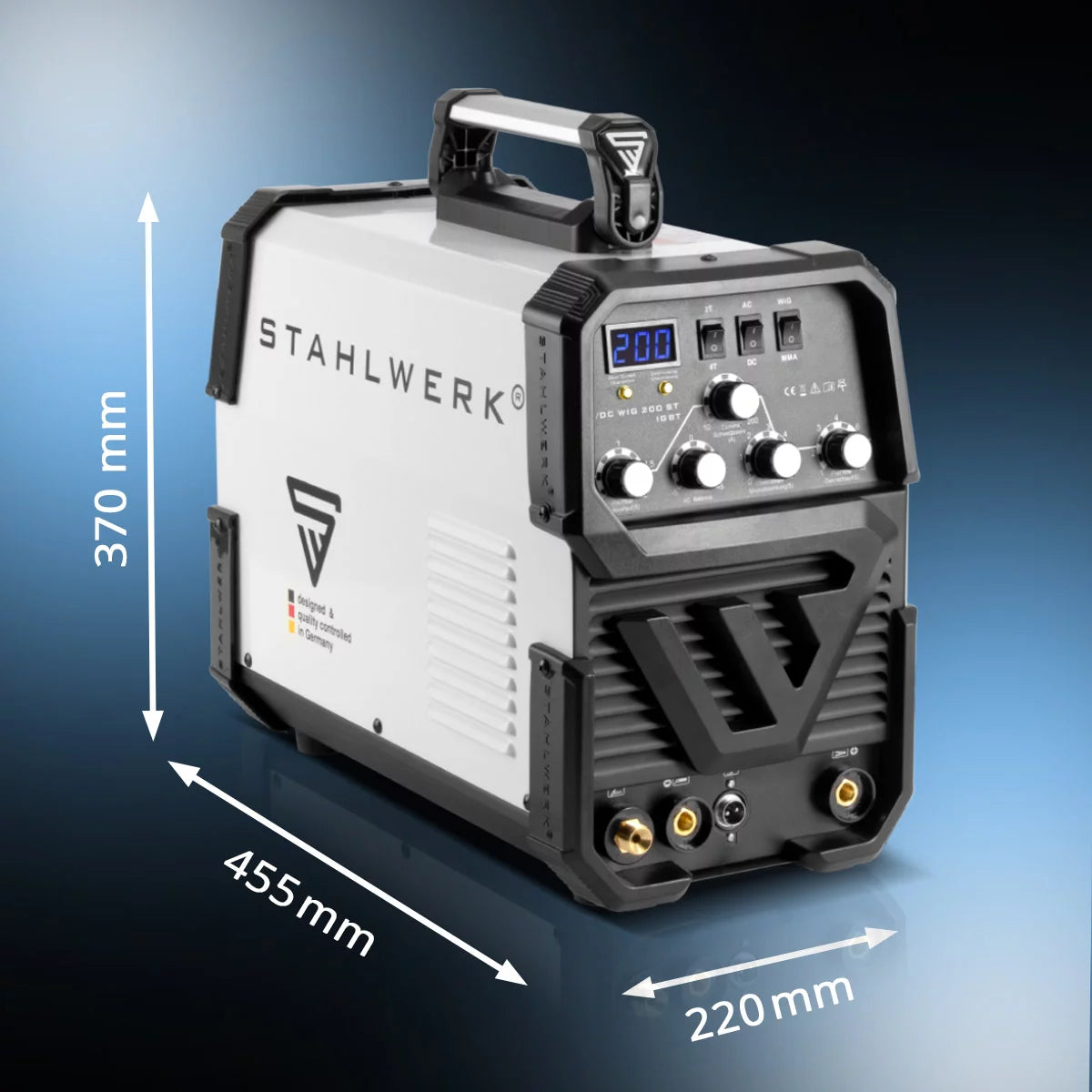

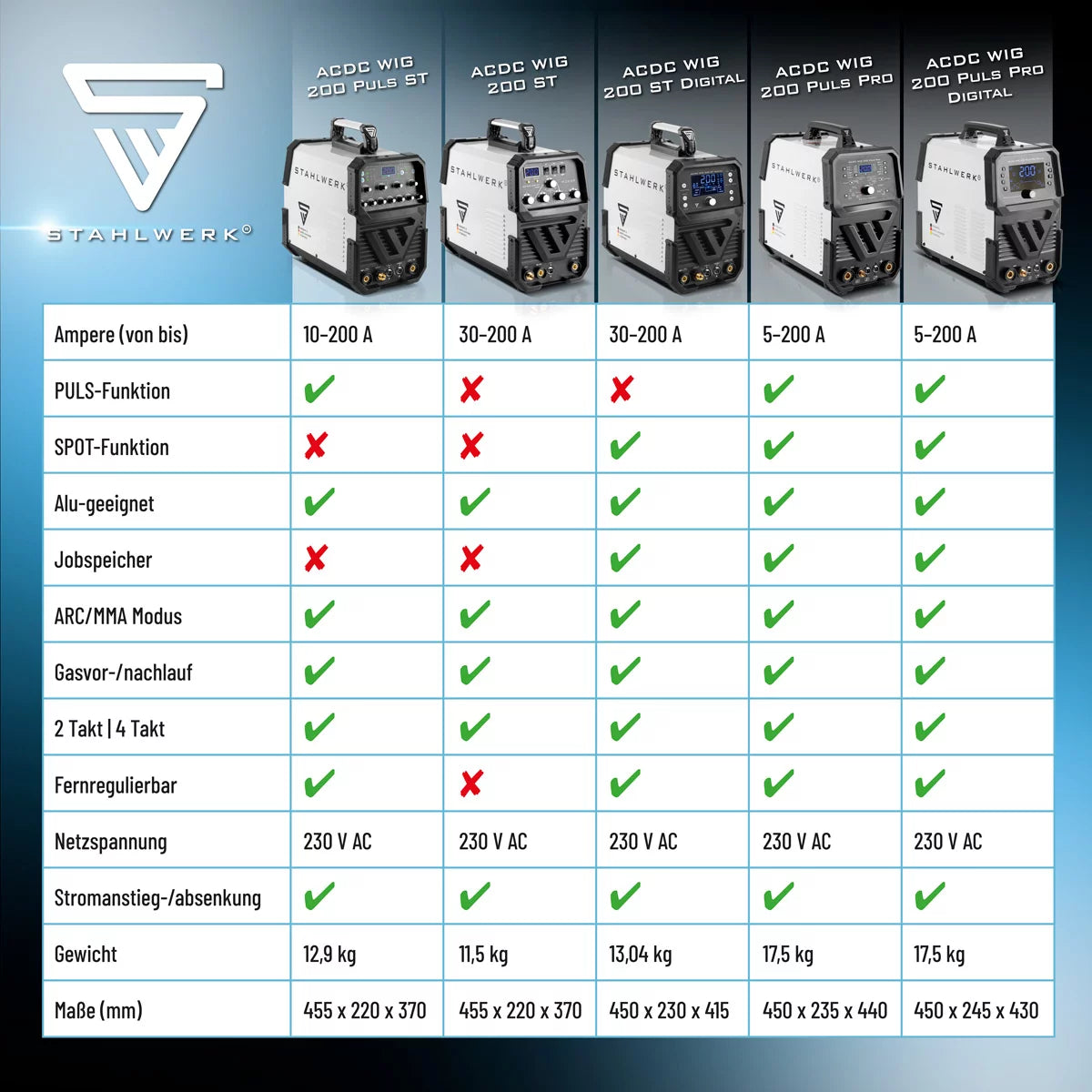

• Light & compact construction -only 11.5 kg weight and dimensions of 455 x 220 x 370 mm. Inovative IGBT transistors save space and weight compared to the old MOSFET technology. No more difficult wear!
• HF ignition - enables contactless ignition and ensures a much better welding result. No lift arc, no stroking ignition!
• The device supplies the highest efficiency & performance in -phase change current (230V) and allows a output power of real 200 amps.
• Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance.
• Attention - bottle connection: W21.8 x 1/14 ” - gas bottles from the Netherlands and Great Britain may have a different connection! Please check the connections for your compatibility before buying!

• 2T/4T (WIG) - determines the control of the operating mode and offers extended control over the course of the current. In 2T mode, the high frequency ignition (HF) remains active until the button on the Brenner is released. In the 4T mode, after pressing and letting go of the die button, the lacquer is ignited. After pressing and releasing again, the ignition ends. Some functions such as reducing electricity are only possible in the 4T.
• Sinking electricity - prevents the formation of lunker places (end crater) at the end of welding.
• Gas pre and ritness (WIG) - protect the tungsten electrode from excessive wear and protect the weld seam from oxidation. The parameters can be set individually and separately. They state how long before and after the ignition should flow gas.
• AC balance-is a variable setting between the breaking of the oxide layer (-) and a deeper incorporation (+). This helps to influence the properties of different materials and alloys.
• Hotstart - Automatic voltage increase when starting for better detonator results.
• Anti -stick - automatic shutdown of the welding current when the electrode sticks enables easy removal.
• WIG (Wolfram-Inert-Gas)-protective gas welding with inert/inactive gases such as Argon 4.6 (99.996 %). An arc between tungsten electrode and workpiece is created in an argon bell. This melts the material and the additional material supplied if necessary. A weld seam is created.
• MMA electrode welding / ARC welding - a universal welding process. An arc makes the electrode melt and thus forms the weld seam. It will not be a protective gas.

Notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through line -bound and emitted disturbance.

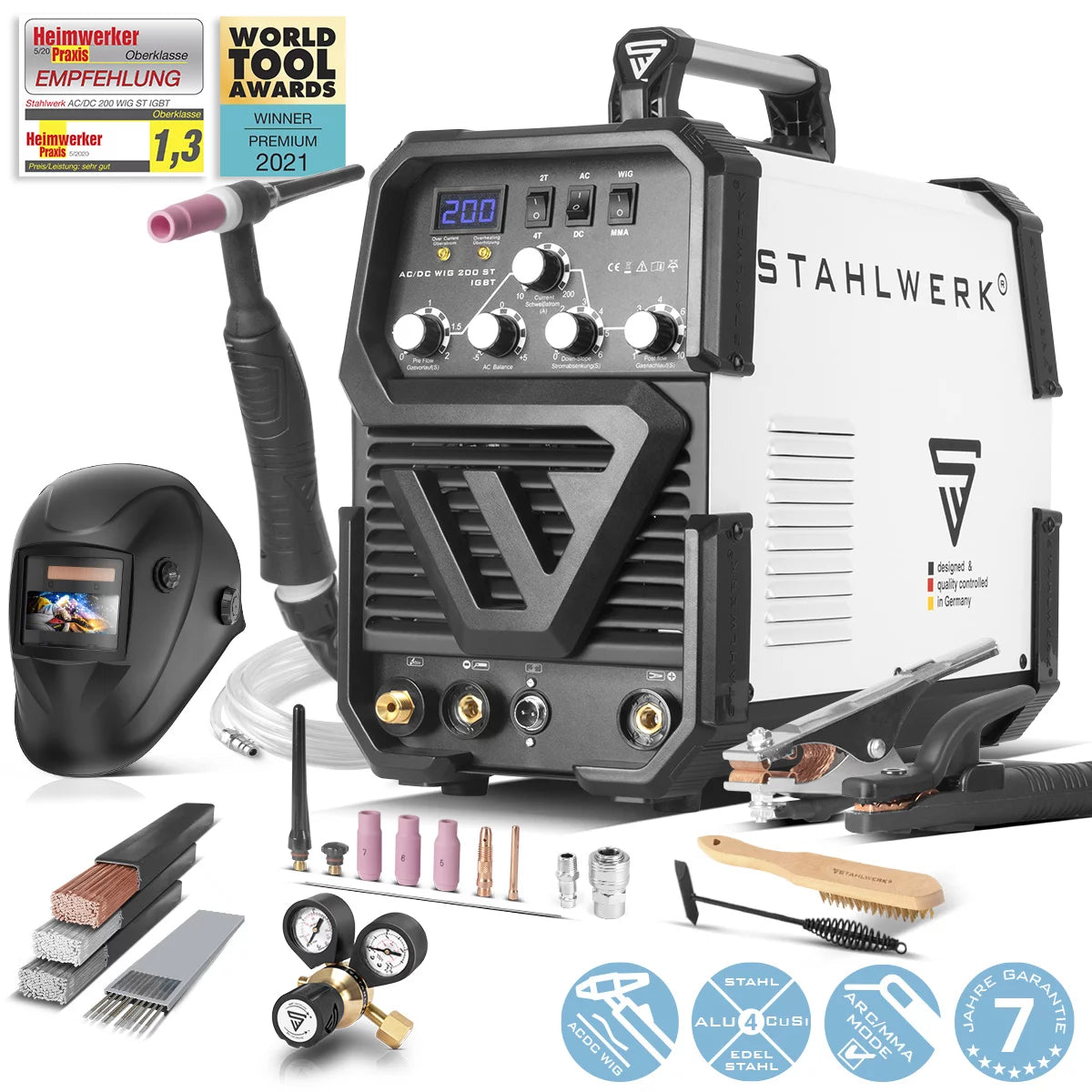

• 1 x the welding machine Stahlwerk AC/DC WIG 200 ST IGBT
• 1 x professional WIG welding burner WP-26F / hose package 3 meters* with flexible burner head and kink protection on the gas connection
• 1 x Wig Tig accessory set 8 parts:
  - 3 x gas nozzles sizes: 5, 6, 7
  - 1 x clamping sleeve size 1.6
  - 1 x clamping sleeve housing size 1.6
  - 2 x burner cap - a short one and a long one
  - 1 x universal tungsten electrode
  * Pre-assembled accessories from the mapping of the welding burner belongs to the 8-part set

• 1 x mass cable 3 meters
• 1 x electrode holder 3 meters
• 1 x wire brush
• 1 x gas connection hose with 5 meter speed coupling
• 1 x WIG welding sticks ER70S-G3 steel / Ø 2.4 x 500 mm / 1 kg
• 1 x welding sticks WIG ER307SI stainless steel upright Ø 1.6 mm x 500 mm
• 1 x welding sticks WIG addition er4043si5 aluminum 1.6 mm x 500 mm 1 kg
• 1 x pressure reducer
• 1 x welding helmet worker 3-in-1 automatic welding helmet welding shield
• Swiss adapter 16A
