Steelworks combination welding device CTM-416 PULS Pro 6-in-1 protective gas welding device | Inverter with 160 A, pulse function, synergic wire feed and integrated 40 A plasma cutter cut | WIG | Mig Mag | Pulse | MMA | Flux

Stahlwerk

Steelworks combination welding device CTM-416 PULS Pro 6-in-1 protective gas welding device | Inverter with 160 A, pulse function, synergic wire feed and integrated 40 A plasma cutter cut | WIG | Mig Mag | Pulse | MMA | Flux

Name: Steelworks combination welding device CTM-416 PULS Pro 6-in-1 protective gas welding device | Inverter with 160 A, pulse function, synergic wire feed and integrated 40 A plasma cutter cut | WIG | Mig Mag | Pulse | MMA | Flux
Brand: Stahlwerk
SKU: 2-4-1-1254
Price: 789.0 CHF
Availability: OutOfStock

SKU: 2-4-1-1254

CHF 789.00

Sold out

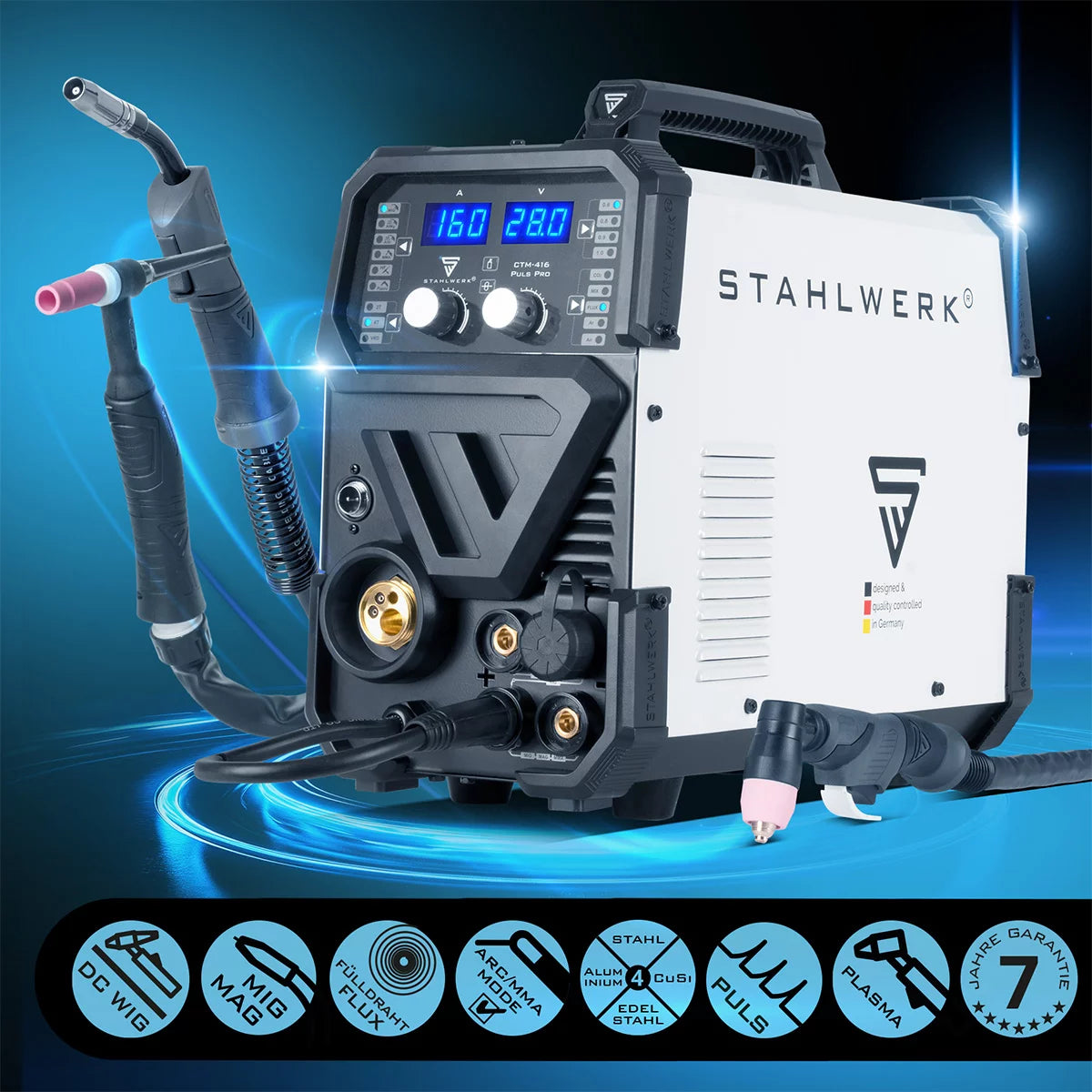

The Stahlwerk Kombi welding device CTM-416 PULS Pro is a powerful 6-in-1 inverter with 160 A and combines the welding process WIG | Mig Mag | MMA | Flux in one device. In addition, the welding device equipped with a pulse function is suitable for processing filling wire and for welding thin sheet and aluminum. In addition, the versatile multifunction device has an integrated 40 A plasma cutter, equipped with precise contact inflammation for best ignition properties. The cutting output is up to 10 mm (construction steel ST37 to 10 mm, V2A or V4A up to 7 mm, aluminum up to 4 mm). Equipped with IGBT technology of the latest generation, the versatile protective gas welding device convinces with a synergic wire feed and numerous individually adjustable welding parameters. Due to the pulse function in MIG MAG mode, the device is even suitable for aluminum welding.

Free shipping in Switzerland and Liechtenstein!

30 day money back guarantee

Purchase on account

Description

Technical data

Model	Stahlwerk welding machine CTM-416 PULS Pro
Starting current MIG	50 - 160 a
Output current MMA	20 - 160 a
Output current HF WIG	20 - 160 a
Output current cut	15 - 40 a
Type of protection	IP21S
Mains voltage	1 x 230 V AC (± 15 %)
Network frequency	50/60 Hz
Maximum network current (i1max)	29.5 a
Largest effective network current (i1eff)	11.4 a
Weight	11.6 kg

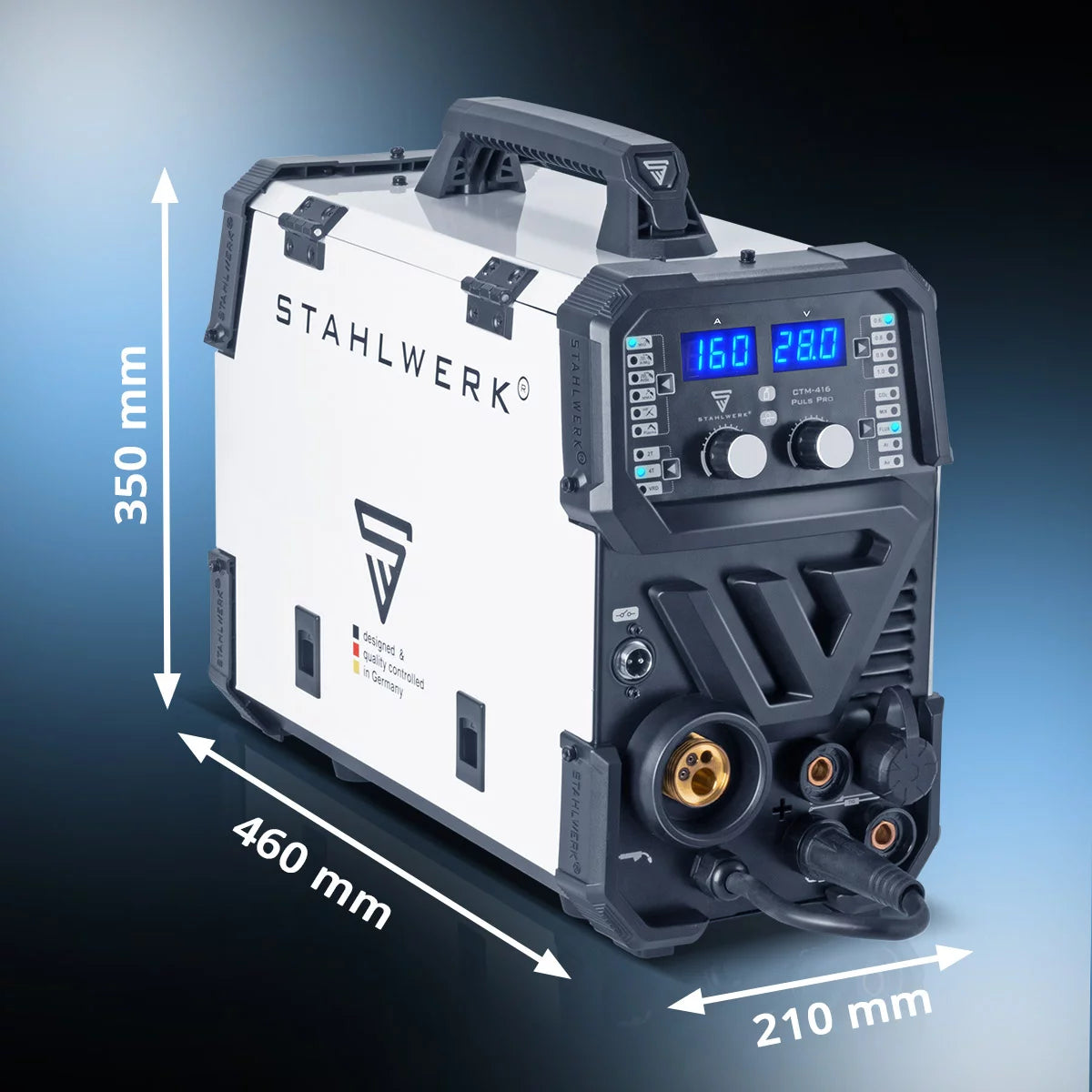

Dimensions L x W x H (mm)	460 x 210 x 350
Network connection	CEE 7/7 Schuko connector with CH fix adapter
Stand up	IEC 60974-1; EN 60974-10 (Class A)
Certified by	SGS Standards Technical Services Co., Ltd.

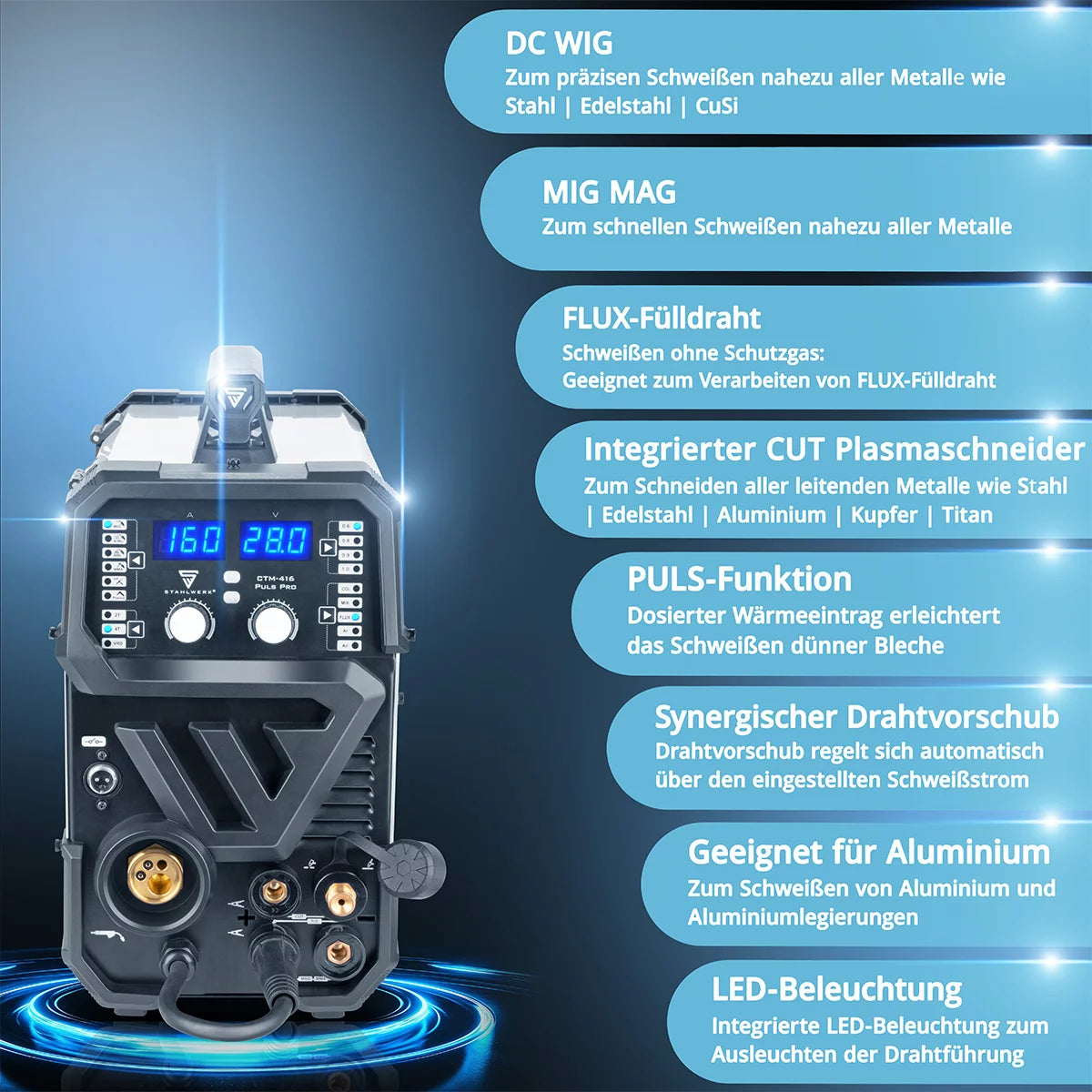

Functions

Mig Mag. Metal protection gas welding with DC (DC). It can be welded with inactive/inerts (MIG, e.g. Argon) or with active (MAG, e.g. CO2). Gas and welding wire come from a burner head and enable welding work to be carried out with just one hand.
Mig pulse. Aluminum can also be processed by the pulse function.
DC Wig welding. DC (DC). Welding of almost all metals such as steel, stainless steel, copper, brass and much more.
Fill wire welding | Flux. Mig likes welding without gas with the help of a special wire.
Automatic wire supply speed (automatic wire feed). The welding wire is automatically turned off the coil and pushed by the wire feed unit by a tube package several meters long to the electricity nozzle in the burner. Depending on the welding current, the speed itself regulates itself.
MMA | E-hand. Electrode hand welding is a universal welding process because it can be used under almost all conditions.
Plasma cutter. This means that all conductive metals can be easily cut, e.g. standard steel, copper, stainless steel, brass, aluminum, titanium, etc.
Contact inflammation. A slight touch of the workpiece is sufficient to ignite in plasma mode. Permanent contact with the workpiece must exist for the cut.
Anti-stick. In the event of a stipulated electrode on the workpiece, the welding current is automatically shut down. The electrode does not glow and is easier to solve from the workpiece.

Properties & advantages

Hotstart. Automatic voltage increase when starting for better detonator results. Due to the short -term overlay of the set welding current, prevents the stable electrode from sticking and warms up the start of welding faster.
IGBT technology. Powerful, innovative technology that sets new standards in welding technology.
Overheating protection. If the device is overloaded and expires as soon as the device cools down again.

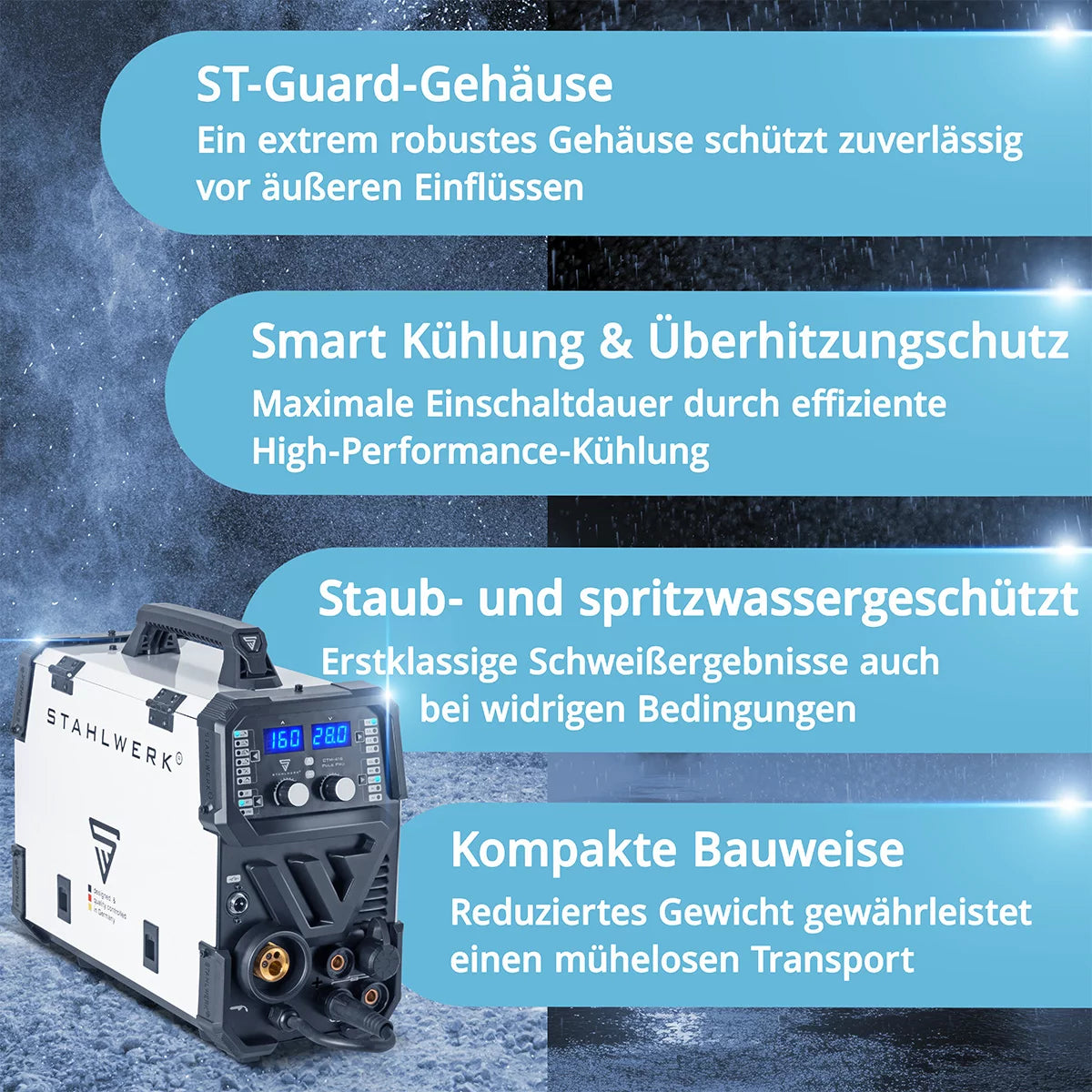

Smart cooling. A powerful fan enables the exhaustion of maximum switch -on duration through excellent cooling.

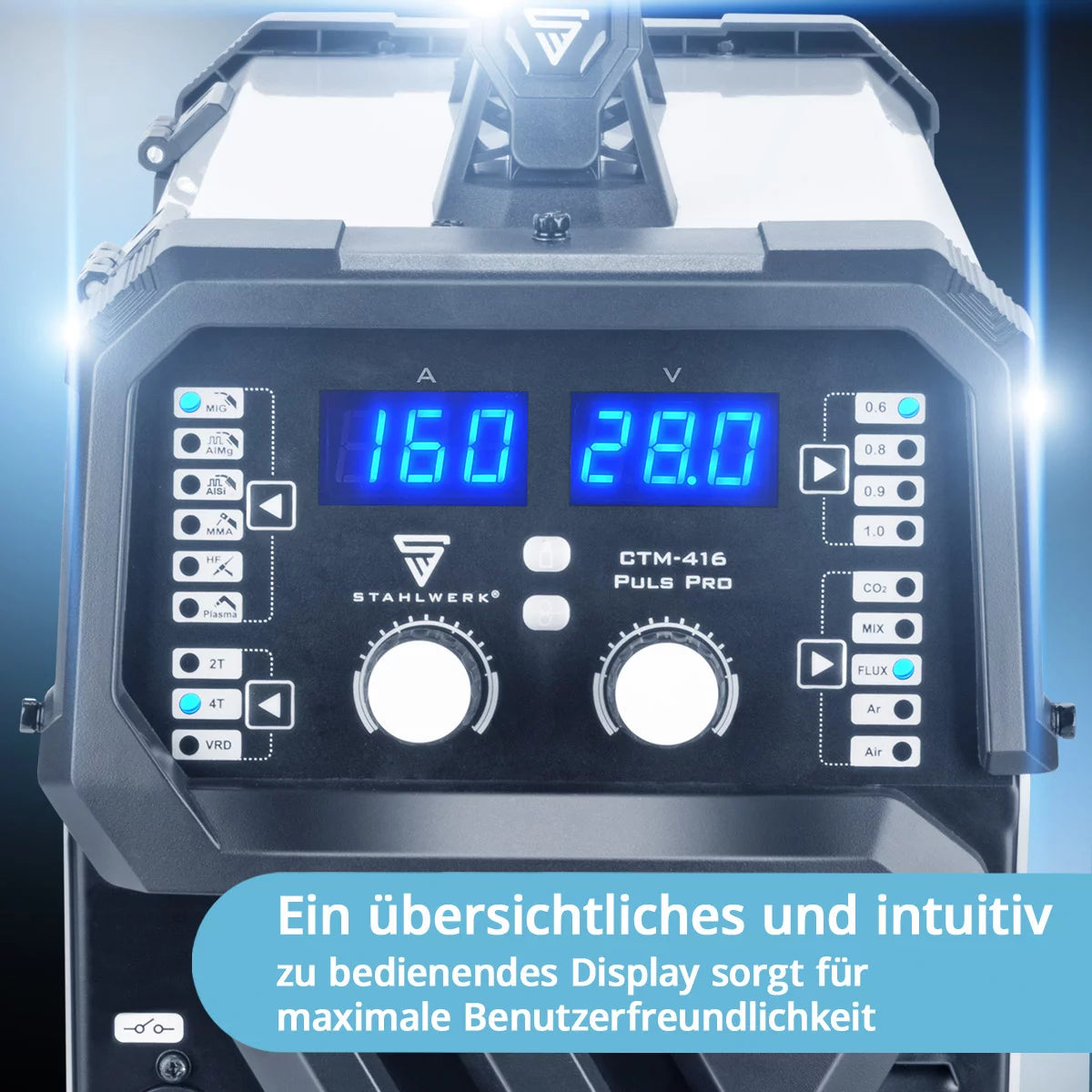

ST-Guard housing. Is ergonomic, robust and safe. The control panel is conveniently accessible and can be operated intuitively.
Welding current. Steplessly adjustable welding current. Set the welding current according to the material thickness of your basic material.
Voltage regulation. Variable voltage control to manually adjust the incorporation and burning of the wire. The higher the voltage, the faster the wire burns down. Depending on the material and material thickness, a lower or higher setting can be selected. In this way, the automatic wire feed can be adjusted somewhat by accelerating or slowing down.
VRD (Voltage Reduction Device). Manual on/off of the VRD function enables the output voltage of the welding machine to be lowered to a safe level in order to protect the operator when touching the electrode as long as it is not welded.

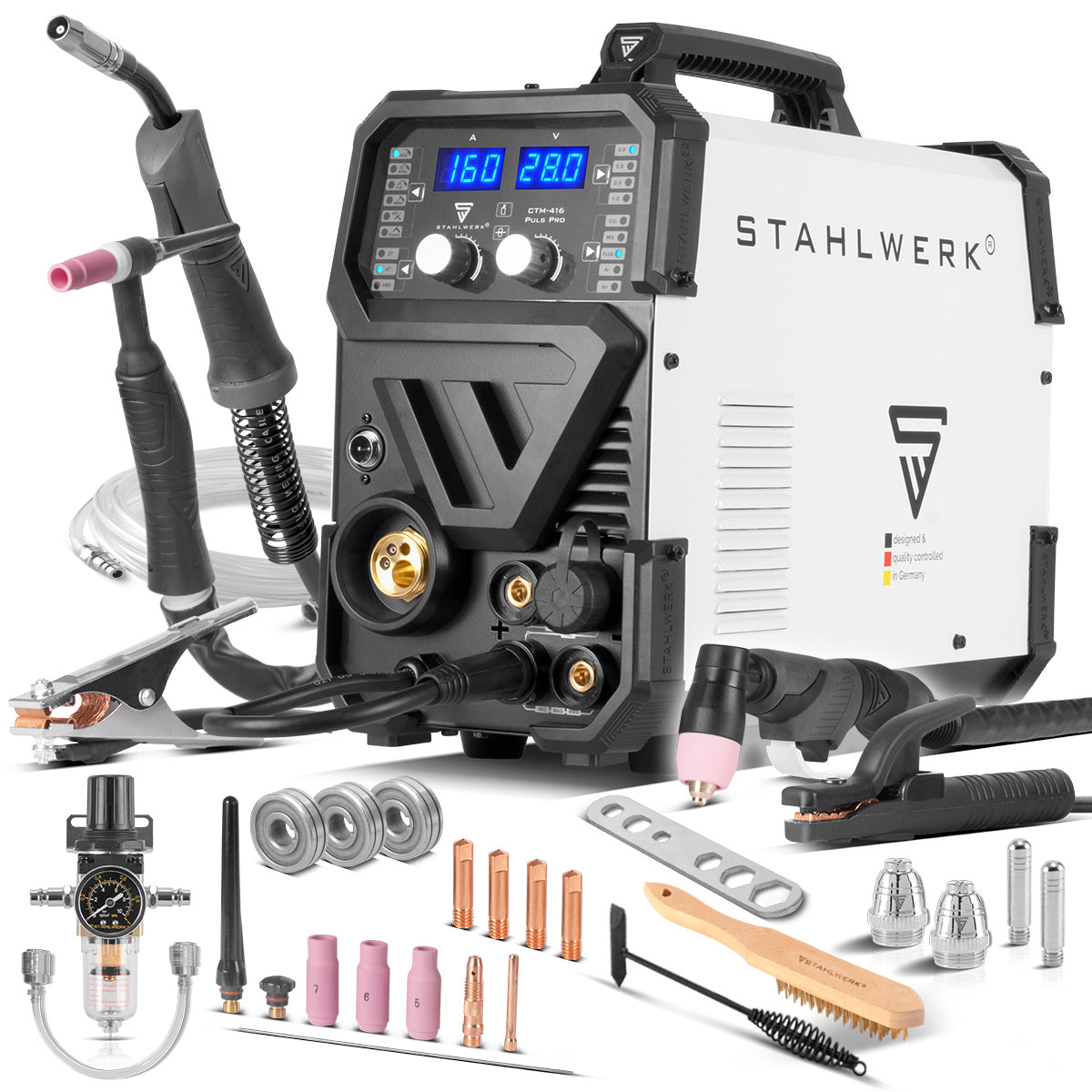

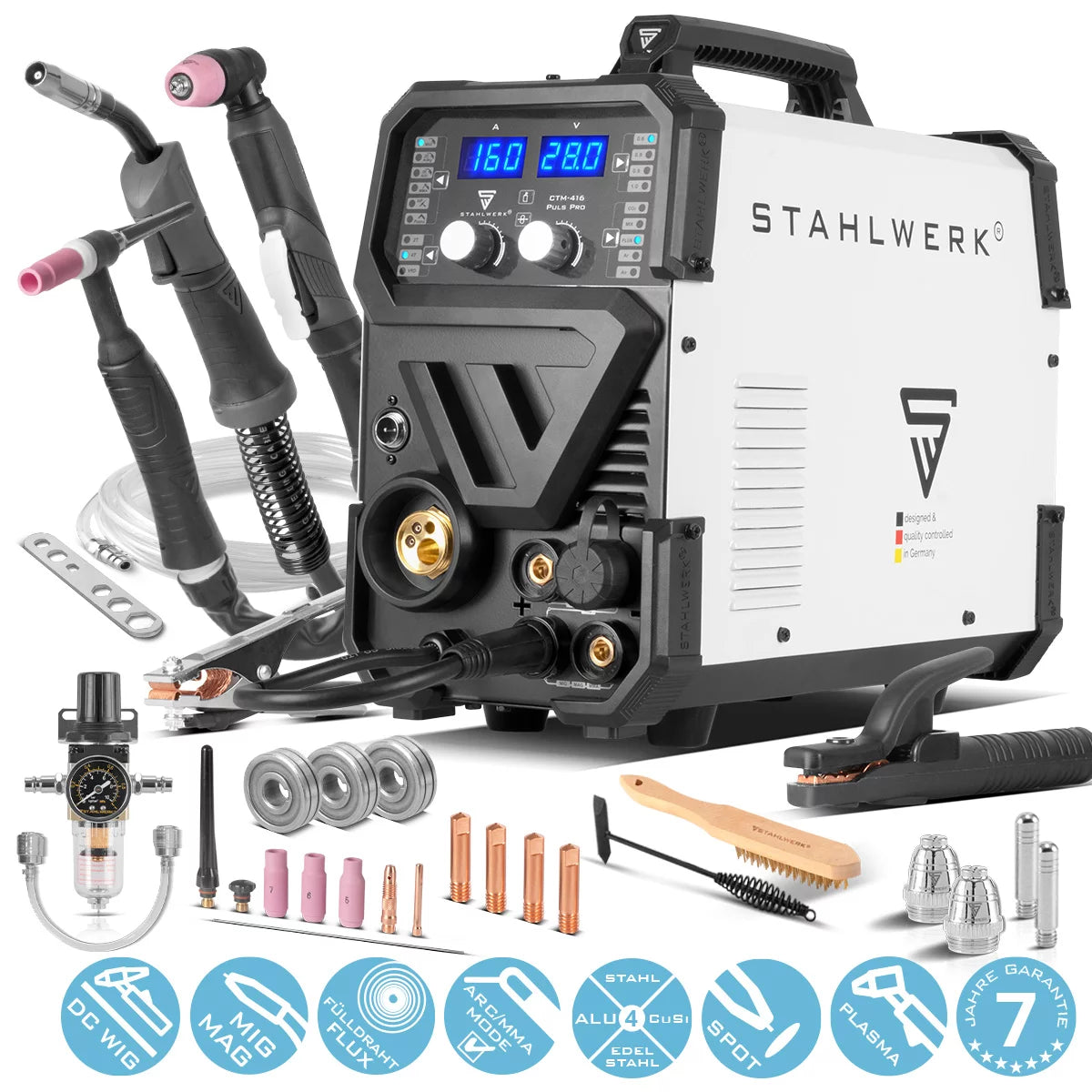

Scope of delivery

1 x steel mill steel mill CTM-416 ST
1 x professional WIG welding burner WP-26F / hose package 3 meters
1 x Wig Tig accessory set 8-part
1 x PROFI plasma hose package AG-60/SG-55 3 meters
1 x plasma accessories set 4 parts
1 x water separator with manometer and snap-on quick couplings
1 x connection hose with snap-on quick couplings from the device to the water separator
1 x professional MIG welding burner AK-15 / hose package 3 meters with Euro central connection
1 x MIG accessory set 3-part (this is already pre-assembled on the MIG/MAG Brenner): 1 x gas nozzle, 1 x power nozzle 0.8 mm, 1 x gas nozzle carrier
1 x mass cable 3 meters
1 x electrode holder 3 meters
1 x wire brush
1 x gas connection hose with 5 meter speed coupling
2 x electricity nozzle M6 x 28 - Ø 0.8 mm
2 x power nozzle M6 x 28 - Ø 1.0 mm
1 x wire guide roll 0.6 mm & 0.8 mm with V profile (is already installed in the device)
1 x wire guide roll 0.8 mm & 1.0 mm with V profile
1 x wire guide roll 1.0 mm & 1.2 mm with U profile
1 x wire guide roll 0.9 mm & 1.0 mm with K profile (knurled)
1 x assembly key
1 x protective cover
1x sockets fixed adapter 16A
