Steel mill Mig Mag 200 Spot Puls Pro Full equipment, fully syngical IGBT Inverter, 5 in 1 combination device with spot function and 200 amps, aluminum | Fill wire | Mig Mag | ARC MMA | Lift Tig | Pulse

SKU: 1155
Sale priceCHF 859.00

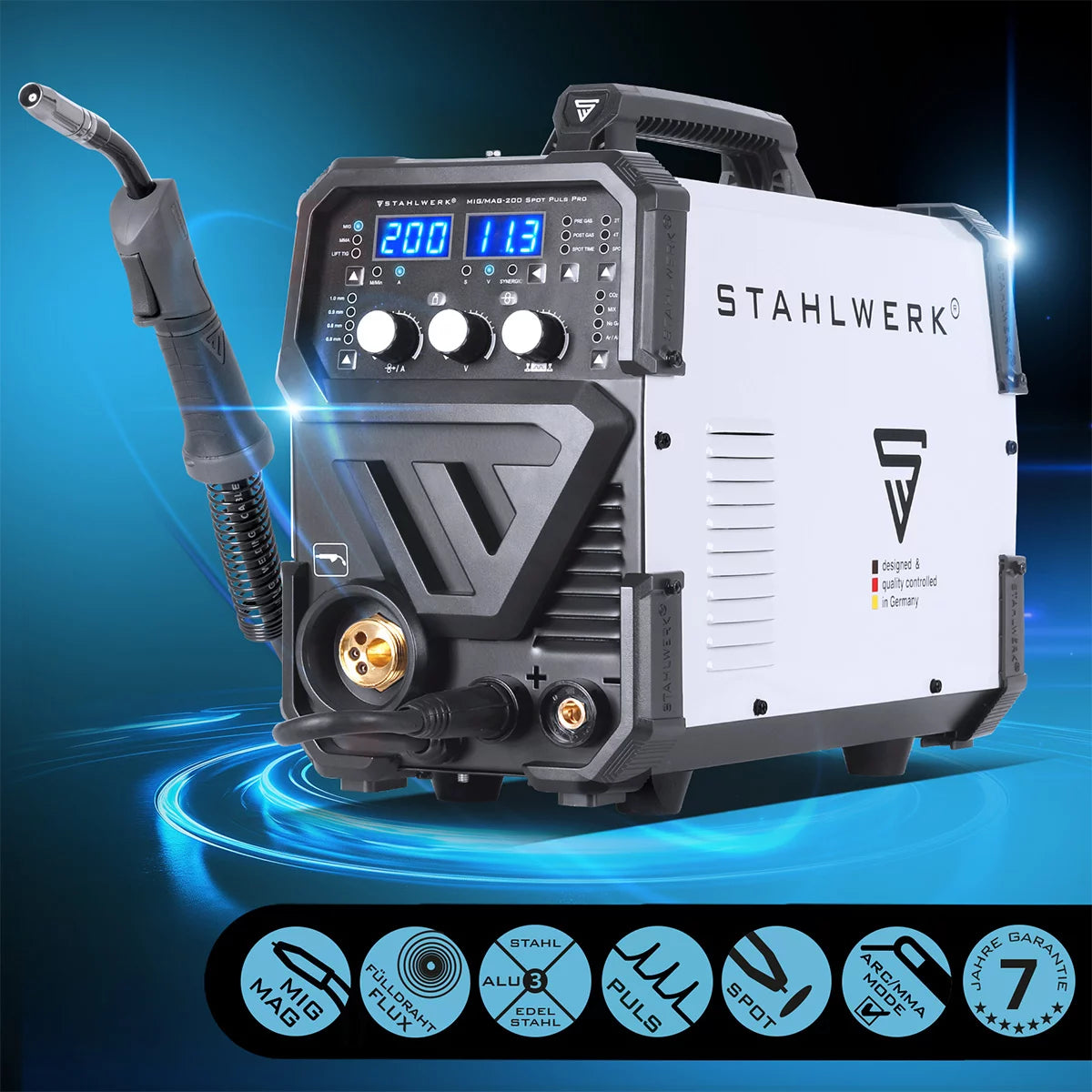

The Mig Mag 200 Puls Pro Plus steel mill is a fully syngical 5 in 1 IGBT DC welding machine with real 200 amps. The 5 in 1 combination welding device has a spot function and is suitable for filling wire | Mig Mag | ARC MMA | Lift-Tig | Pulse. The spot dot welding function is particularly suitable for thin body parts in the vehicle area. As a result, the issue points are precisely reproducible and even. The pulse function only gets a little warmth into the workpiece, so that the protective gas welding device is also suitable for welding aluminum. The fully syngical welding device automatically adapts the voltage and the wire feed on the preset welding current. The welding machine with the latest IGBT technology is structured. This enables the highest performance with a high switching duration. The device has a 4-roll drive and can process both 1 kg and 5 kg rollers. Thanks to the adjustable gas flow, the protective gas flow begins before the arc is ignited.

Free shipping in Switzerland and Liechtenstein!
30 day money back guarantee
Purchase on account

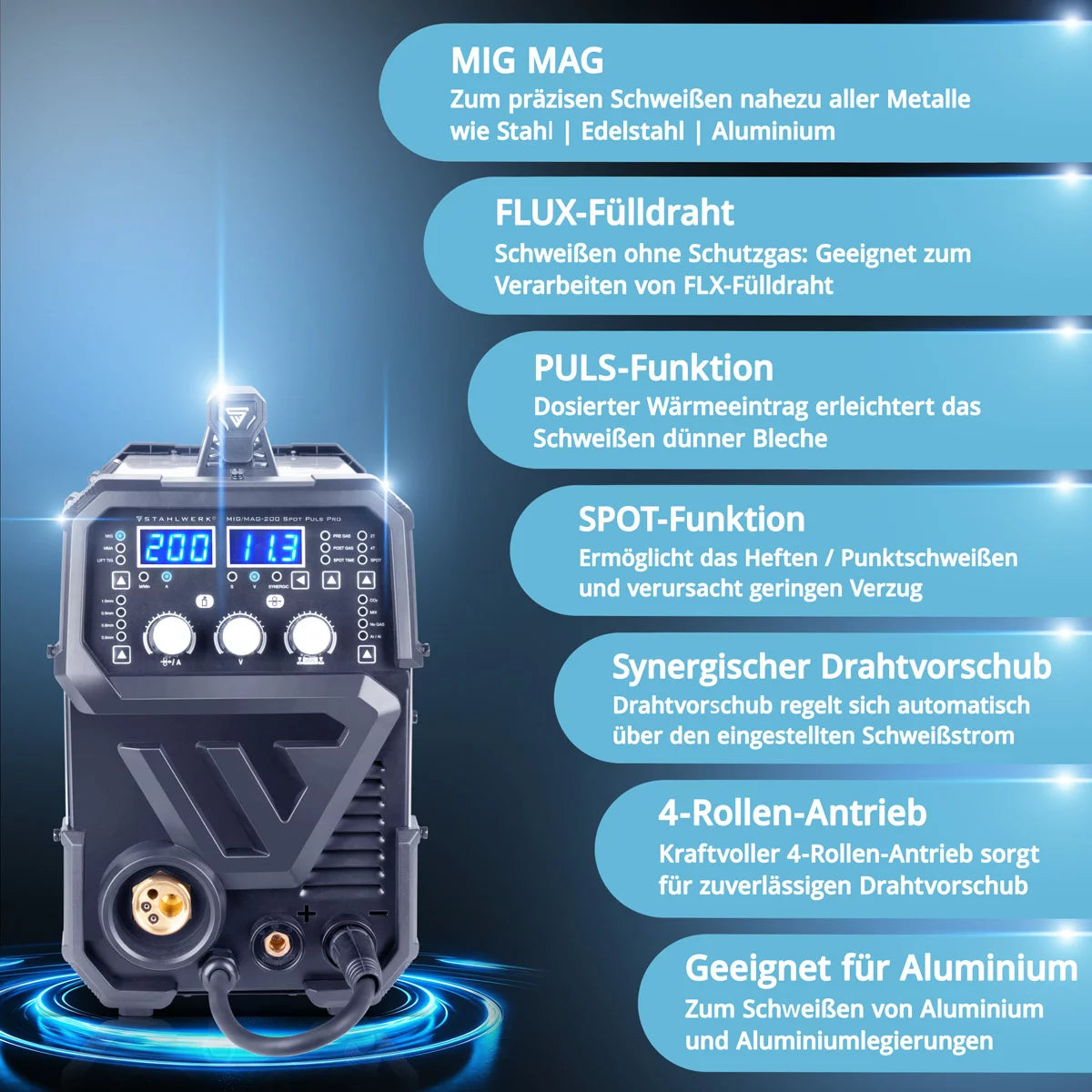

Functions

  • 5 in 1 combination device - aluminum welding, Mig Mag, filling wire, lift tig, mma & puls mig welding is possible up to 200 a.
  • Spot dot welding function. Particularly suitable in the vehicle area for thin body parts. As a result, the issue points are precisely reproducible and even.
  • MIG pulse - The pulse function keeps the heat input low and the welding of aluminum enables.
  • IGBT Technology - the latest and most modern transistor technology enables the highest performance and a high switching duration (ED)! No transformer, no MOSFET, the most modern IGBT!
  • Preflow / gas lead. Thanks to the gas flow, the protective gas flow begins before the arc is ignited. This prevents the workpiece from getting in touch with air at the start of welding. This protects the weld seam from oxidation. Depending on the sweat request, the gas lead time can be set individually.
  • MIG MAG - metal protection gas welding with DC (DC). It can be welded with inactive/inerts (MIG, e.g. Argon) or with active (MAG, e.g. CO²) gases. Gas and welding wire come from a burner head and enable welding work to be carried out with just one hand.

Properties & advantages

  • Different welding parameters are adjustable. It is suitable for the precise welding of thin sheet metal as well as sheet metal and stainless steel. Due to the pulse function, the MIG MAG-200 Puls Pro Plus is also suitable for aluminum.

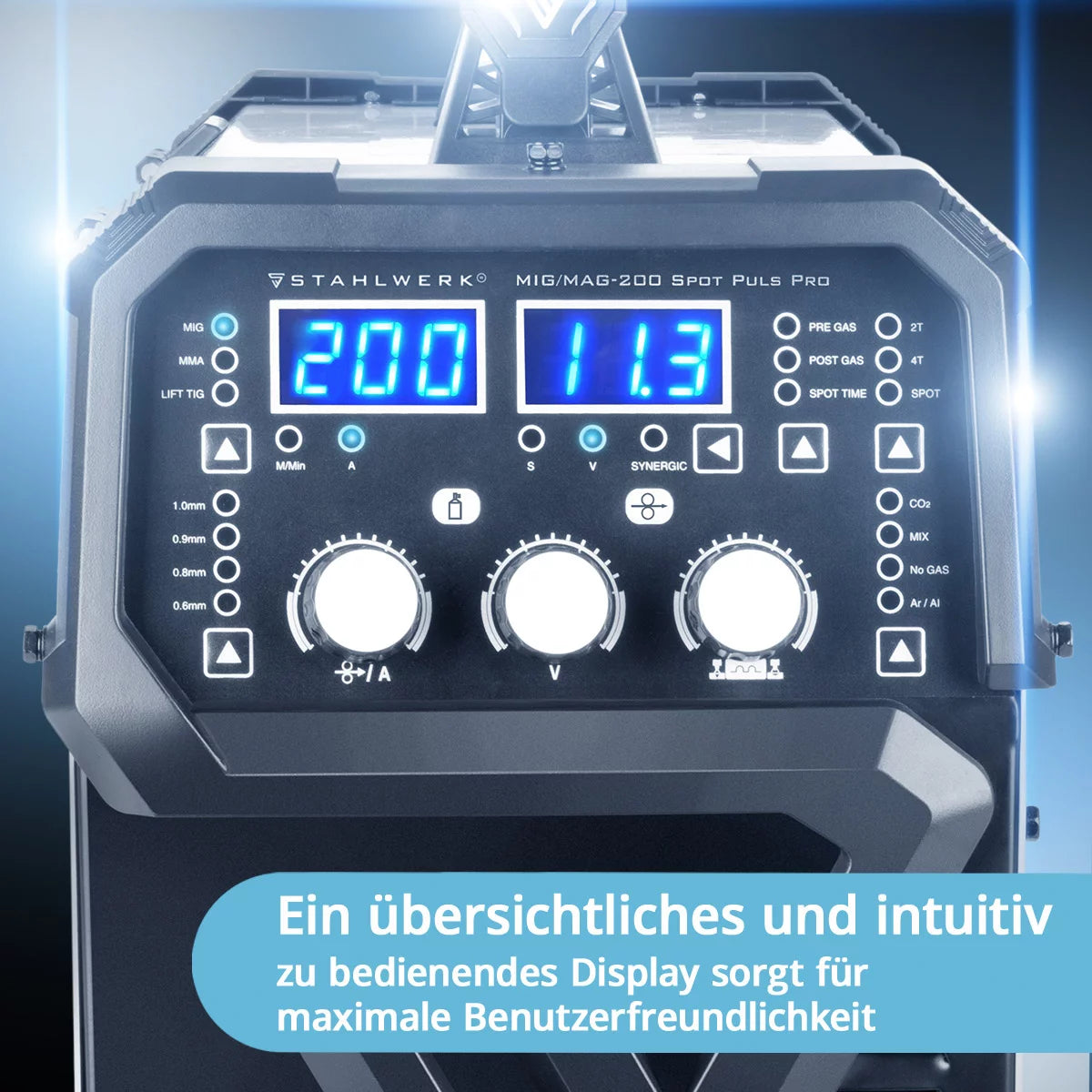

  • Fully syngical device: The voltage (volt) and the wire feed always adopts automatically via the set welding current. The device is therefore very easy to use, especially for beginners.

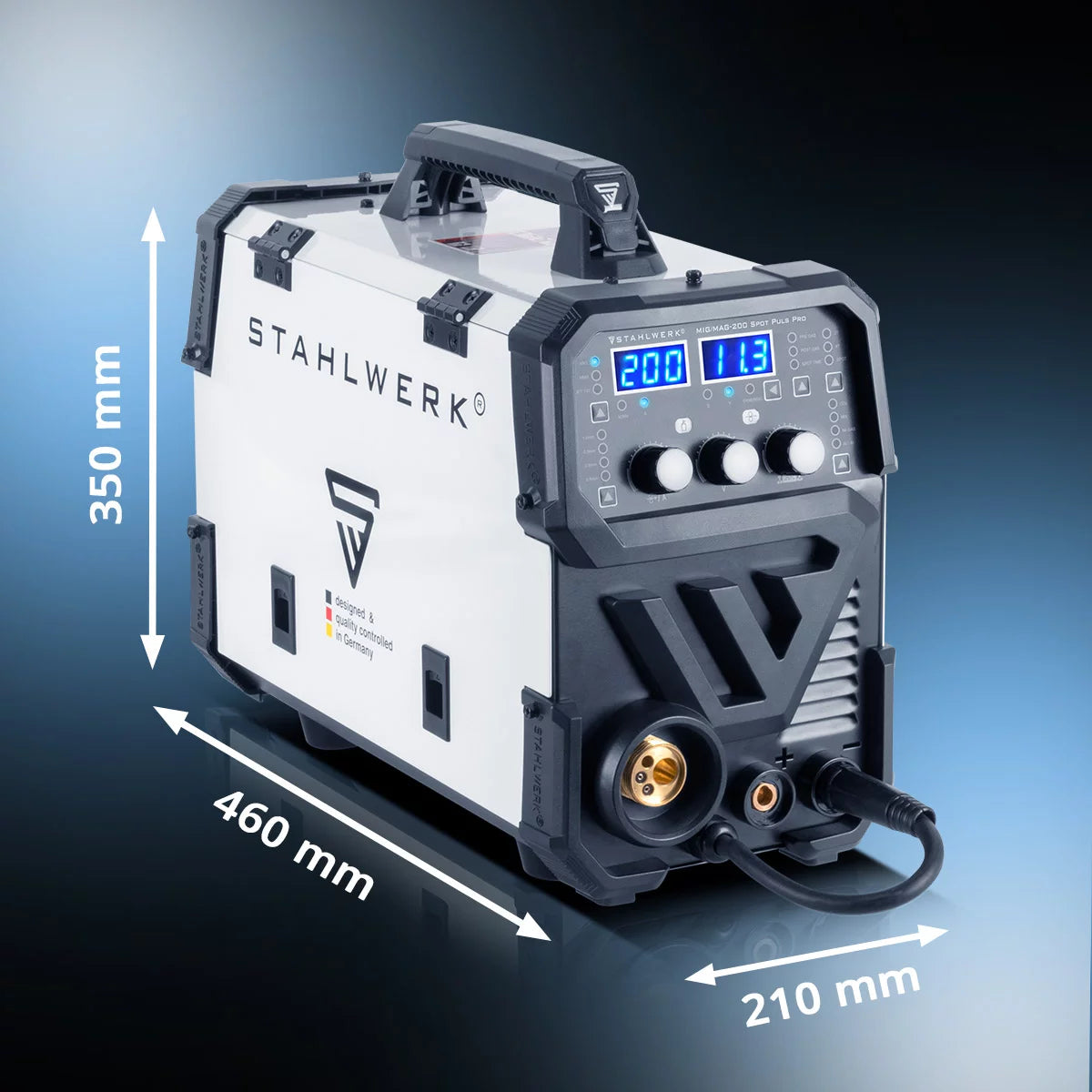

  • Light & compact design - only 10.8 kg weight and dimensions of 460 x 210 x 350 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more difficult wear!
  • The welding machine supplies the highest efficiency & performance - single -phase change current (230 V) and allows a output of real 200 amps.
  • Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance.
  • Fill wire-All of our devices can use fill wire (flux-cored wire). This enables welding without protective gas.
  • 4 Role drive - reliable and powerful wire feed. Thanks to 4 drive rollers, thicker wires are continuously and safely encouraged.
  • Automatic wire feed - the speed of the wire feed is automatically regulated via the set welding current.
  • Automatic voltage control (volt) - The voltage automatically adapts to the set welding current.
  • Trolling roller - standard 1 kg and 5 kg wire rollers can be processed. The universal pulendorn can absorb both 16 and 50 mm coils.
  • Wire drive rollers - Different wire thicknesses can be used by simply changing the drive rolls of 0.6 mm & 0.8 mm. By switching to the 1.0 mm & 1.2 mm drive roller with 'U' profile, aluminum wire can also be used.
  • MMA electrode welding / MMA welding - is a universal welding process. No protective gas is required.
  • Lift tig - with a separately available (not included in the scope of delivery), the hose package can also be welded with the device DC WIG (string ignition).
  • VRD (Voltage Reduction Device). Manual on/off of the VRD function enables the output voltage of the welding machine to be lowered to a safe level in order to protect the operator when touching the electrode as long as it is not welded.

A notice:The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through a line -bound and emitted disturbance.

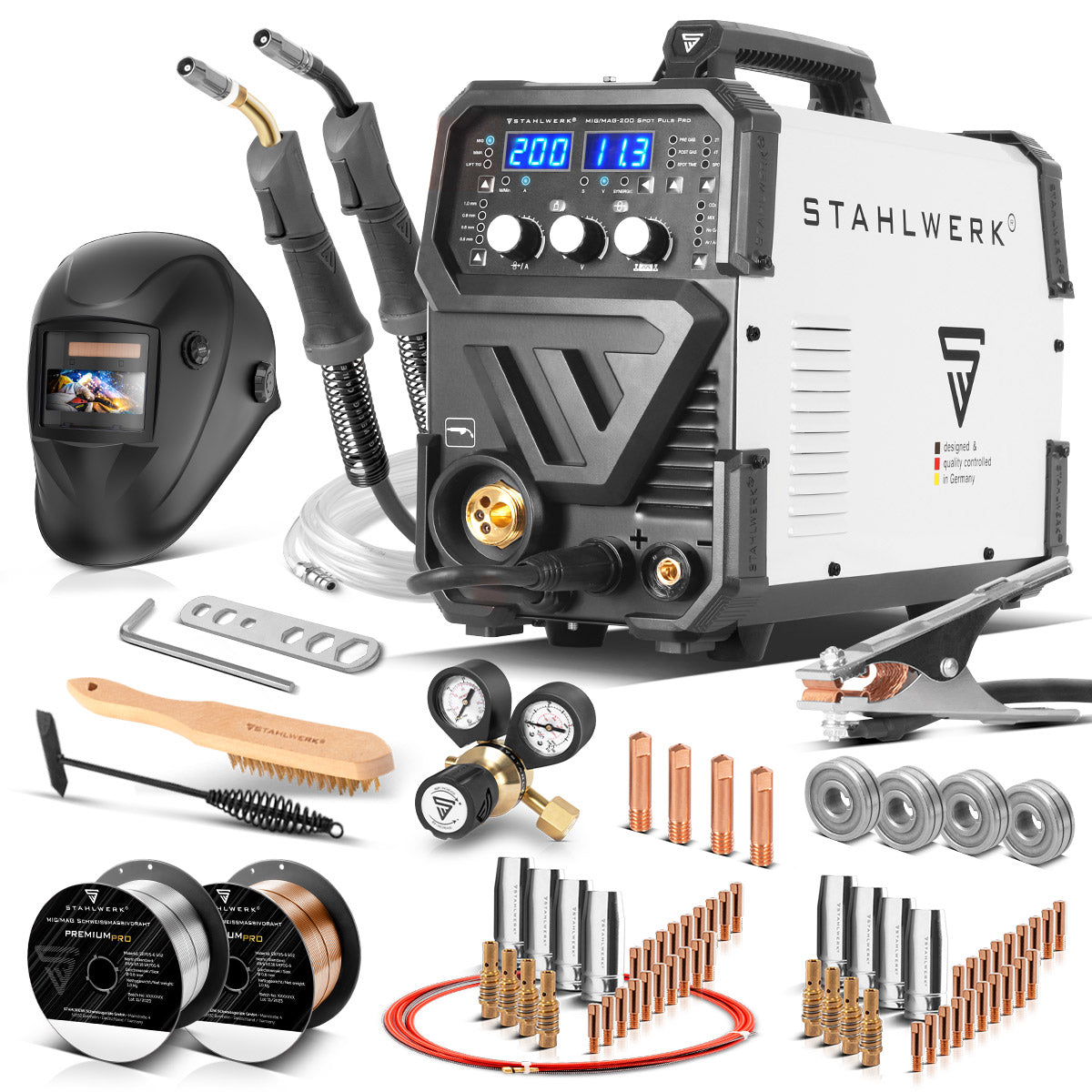

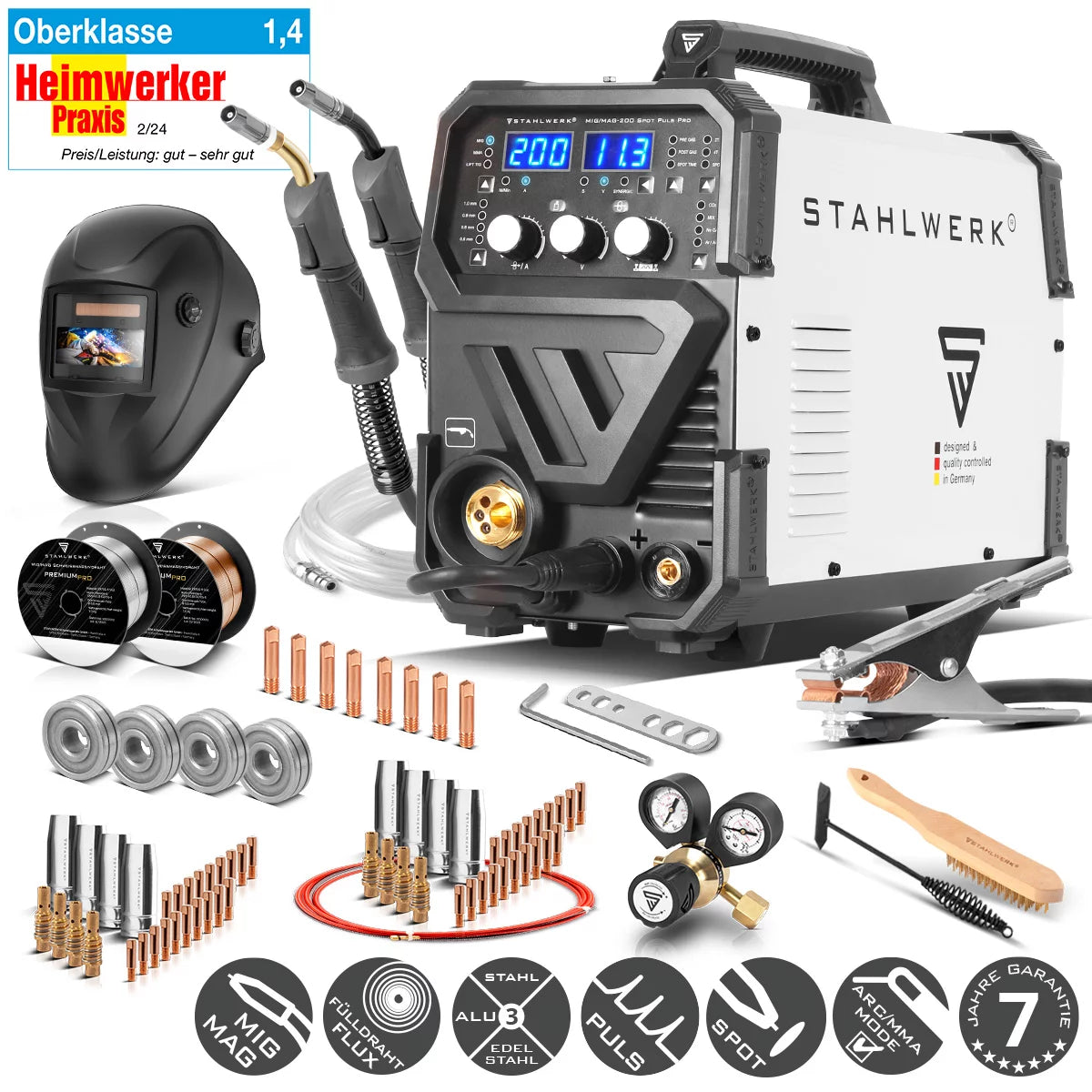

scope of delivery

  • 1 x welding machine MIG MAG-200 PULS PRO PLUS
  • 1 x professional MIG welding burner "AK-15" / hose package 3 meters.
  • 1 x steel mill MIG MAG-WEISSBRENER AK25/MB25 for aluminum with 3 meters of hose package and carbon soul as well as euro central connection
  • 1 x MIG Mag wear parts set aluminum for AK25/MB25 welding burner 28-part
  • 1 x pressure reducer
  • 1 x AK15/MB15 wear parts set 28-part
  • 1 x Mig Mag aluminum welding wire er4043 Si5 (Alsi-5) Ø 0.8 mm 0.45 kg wire roll
  • 1 x mig likes welding wire ER70S-6 SG2 Ø 0.8 mm S200/D200 roll 5 kg
  • 2 x power nozzles M6 x 28 - Ø 0.8 mm for steel
  • 2 x power nozzles M6 x 28 - Ø 1.0 mm for steel
  • 1 x power nozzle M6 x 28 - Ø 1.0 mm for aluminum
  • 1 x power nozzle M6 x 28 - Ø 1.2 mm for aluminum
  • 1 x steel soul
  • 1 x assembly key
  • 1 x mass cable 3 meters
  • 2 x wire guide roll 0.8 mm & 1.0 mm with 'V' profile (is already installed in the device)
  • 2 x wire guide rolls 0.6 mm & 0.8 mm with 'V' profile
  • 2 x wire guide rolls 1.0 mm & 1.2 mm with 'U' profile (for aluminum wire)
  • 1 x wire brush
  • 1 x Schlackhammer
  • 1 x gas connection hose with 5 meter speed coupling
  • 1 x protective cover
  • 1x steel plant full automatic welding helmet ST-900X black matt
