STAHLWERK plasma cutter CUT 50 P | 45A Inverter Plasma Cutter | HF pilot ignition | Digital display | Cutting performance up to 15 mm | Smart cooling

Sku: 6928
2-4 working days delivery time
OfferCHF 359.90

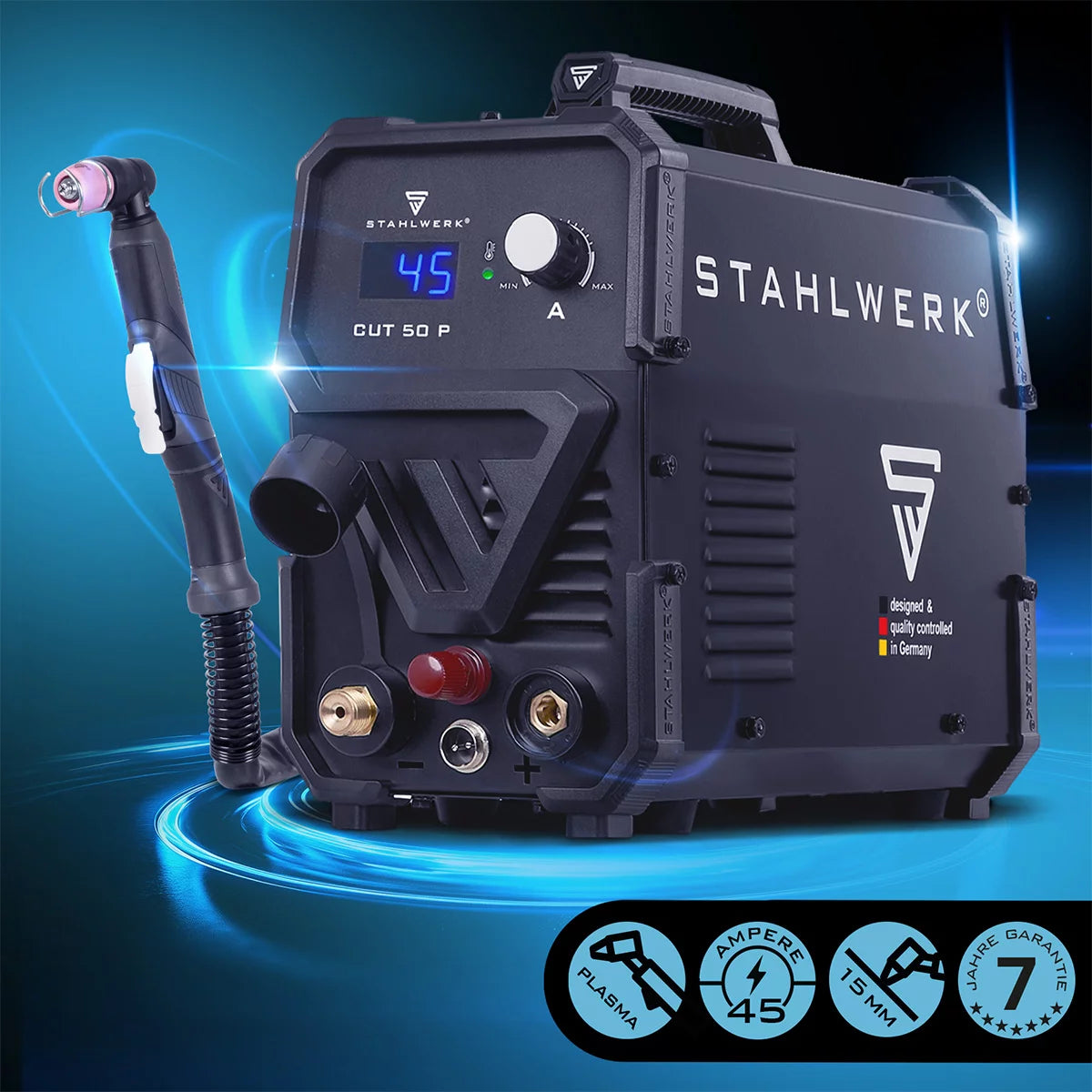

The STAHLWERK plasma cutter CUT 50 P is a powerful and very compact cutting inverter for the precise cutting of electrically conductive metals. The continuously adjustable cutting current from 15 to 45 A covers a wide range of applications - from thin sheets to solid structural steel plates. The HF pilot ignition ensures comfortable, contactless ignition of the plasma arc. Depending on the material, cuts of up to 15 mm for mild steel (ST37), 8 mm for stainless steel (V2A/V4A) and 5 mm for aluminum are possible. Even painted and slightly rusted workpieces can be processed cleanly and efficiently. The integrated smart cooling, overheating protection and protection class IP21S ensure reliable and long-lasting operation. The STAHLWERK CUT 50 Pilot plasma cutter is delivered with an extensive accessories package and is ready for immediate use.

Free shipping in Switzerland and Liechtenstein!
30 day money back guarantee
Purchase on account

Functions

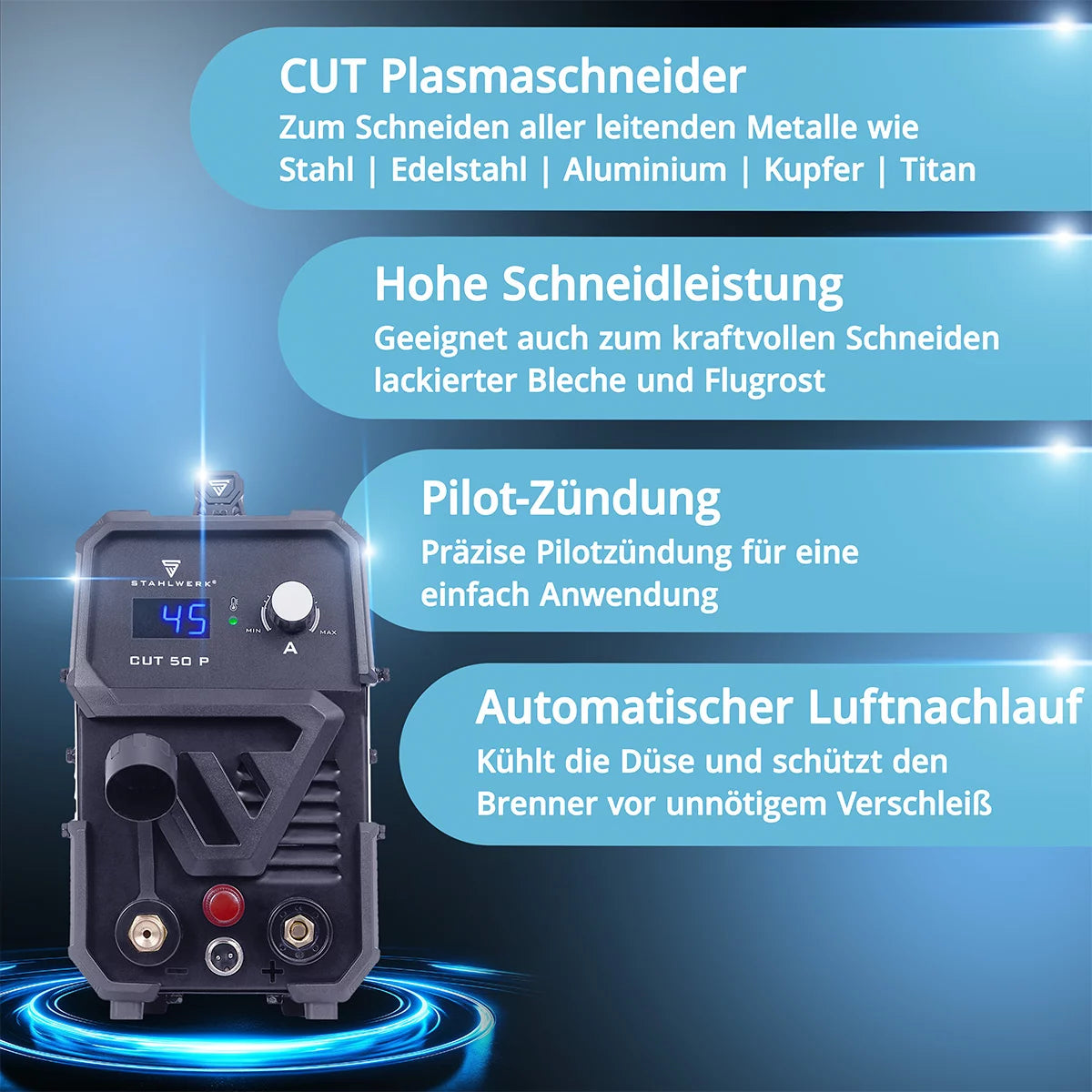

  • Plasma / CUT - Electricity is used to generate a plasma jet that melts the material, which is then removed with compressed air. This means that all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and much more can be cut precisely with ease.
  • Cutting thickness - Separating cuts are possible up to 15 mm depending on the material. Structural steel ST37 up to 15 mm, V2A or V4A up to 8 mm, aluminum up to 5 mm.
  • Pilot ignition - high frequency (HF) pilot ignition for first-class ignition behavior. No contact with the workpiece necessary! The pilot flame creates the arc. This burner can be operated with a spacer included in the scope of delivery.
  • Cutting current - stepless adjustment from 15 to 45 A.
  • Air flow - After the cutting process has ended, air automatically flows in to cool the torch and reduce wear on the nozzle and electrode.

Properties & advantages

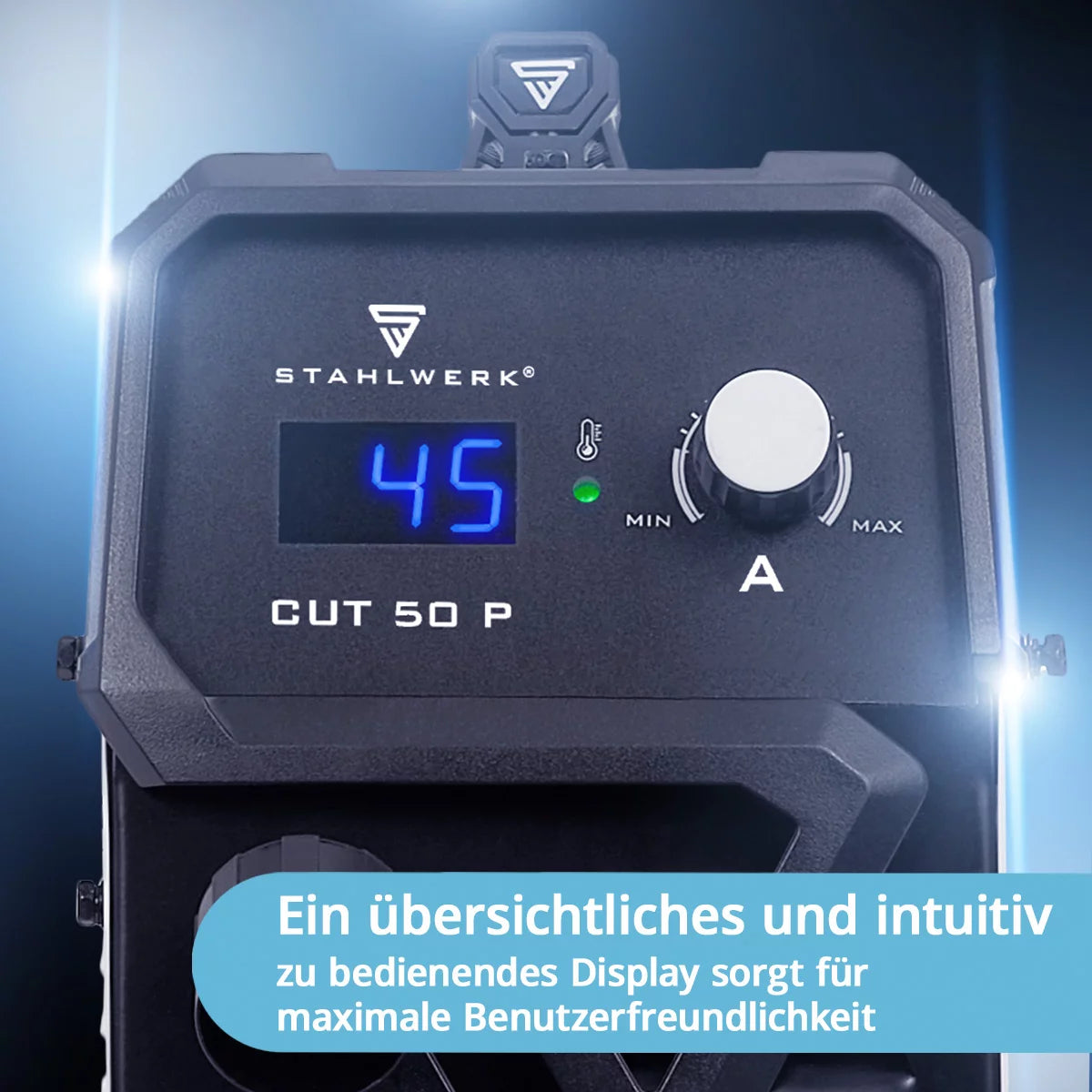

  • Convenient operation – Clearly structured front panel with digital display makes operation easier.
  • IGBT technology - Latest and most modern transistor technology enables high performance when welding! No transformer, no MOSFET, state-of-the-art IGBT!

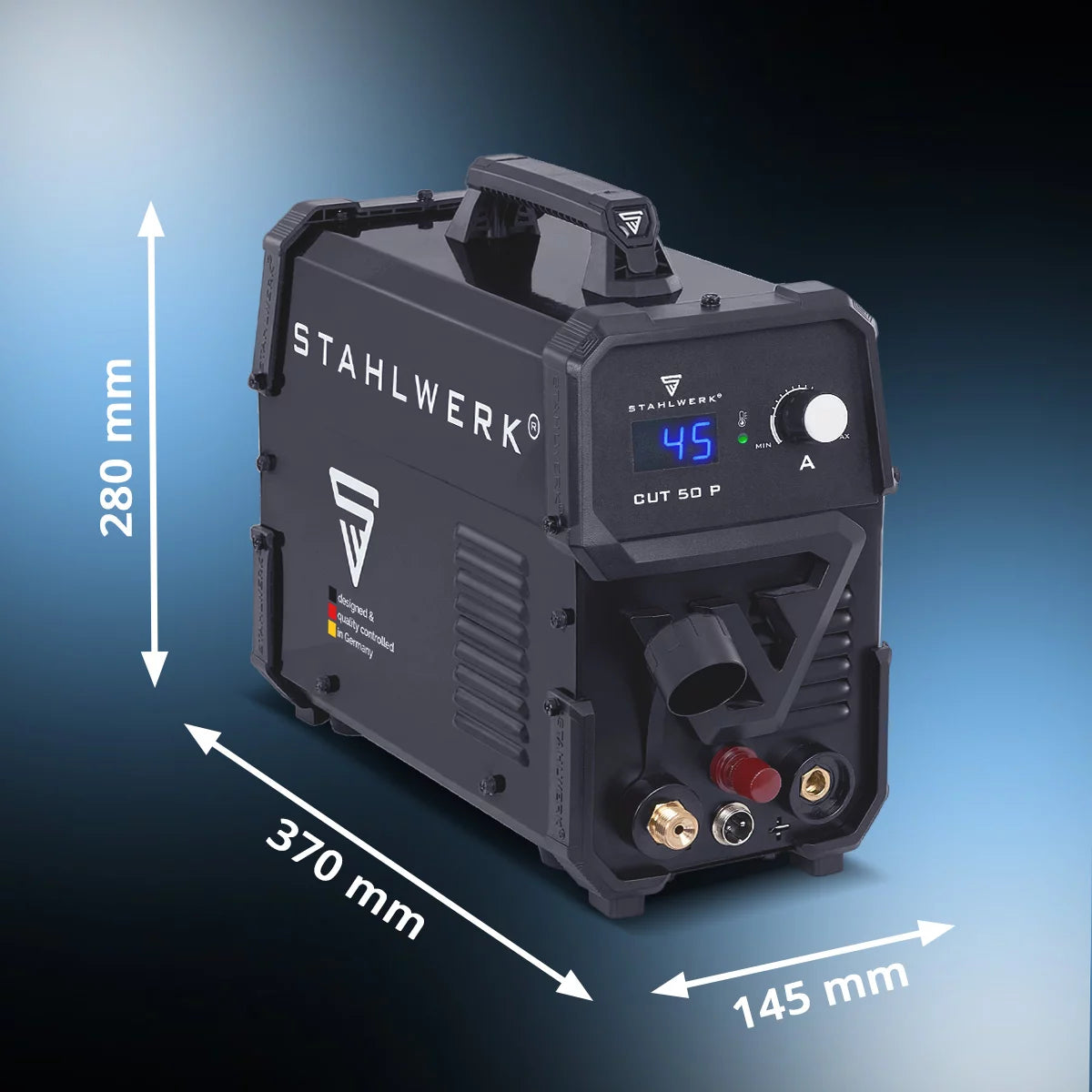

  • Lightweight & compact design - Weighing just 5.0 kg and measuring 370 x 145 x 280 mm, the device is easy to transport and ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to old MOSFET technology.
  • Highest efficiency & performance - Single-phase alternating current (230 V) supplies the device and allows an output power of a maximum of 45 amps.

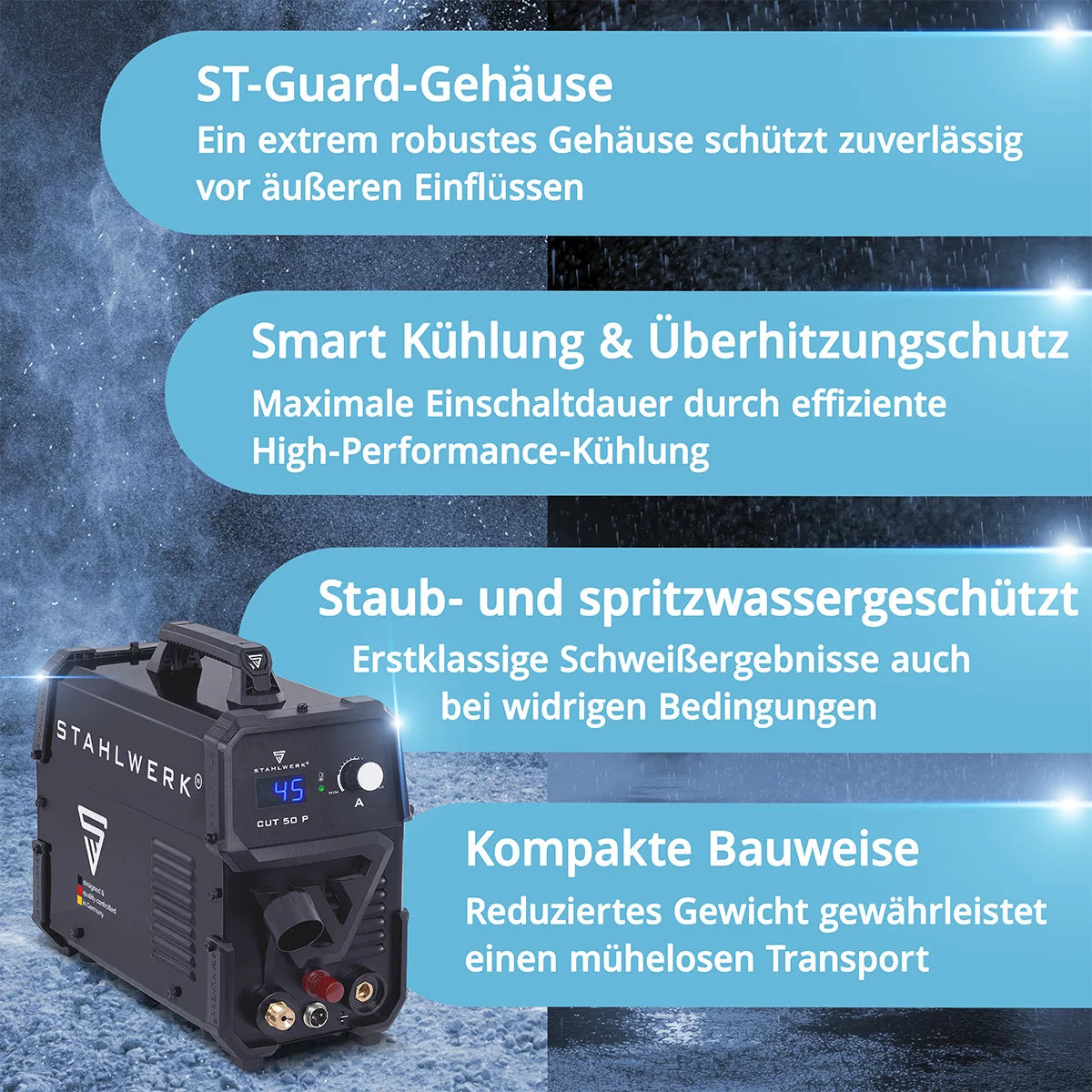

  • Smart cooling and overheating protection - State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance to be achieved.

Scope of delivery

  • 1 x plasma cutter STAHLWERK CUT 50 P
  • 1 x professional plasma hose package P-60 3 meters
  • 1 x 4-piece plasma accessory set (already pre-assembled on the plasma torch):
  • 1 x Plasma Nozzle
  • 1 x Plasma Electrode
  • 1 x Ceramic Cap
  • 1 x Spacer
  • 1 x ground cable 3 meters
  • 1 x water separator with pressure gauge and snap-on quick couplings from the device to the water separator, including 4-piece connection set
  • 1 x air connection hose with snap-on quick coupling 5 meters
  • 1 x Protective Case
  • 1 x Teflon tape
