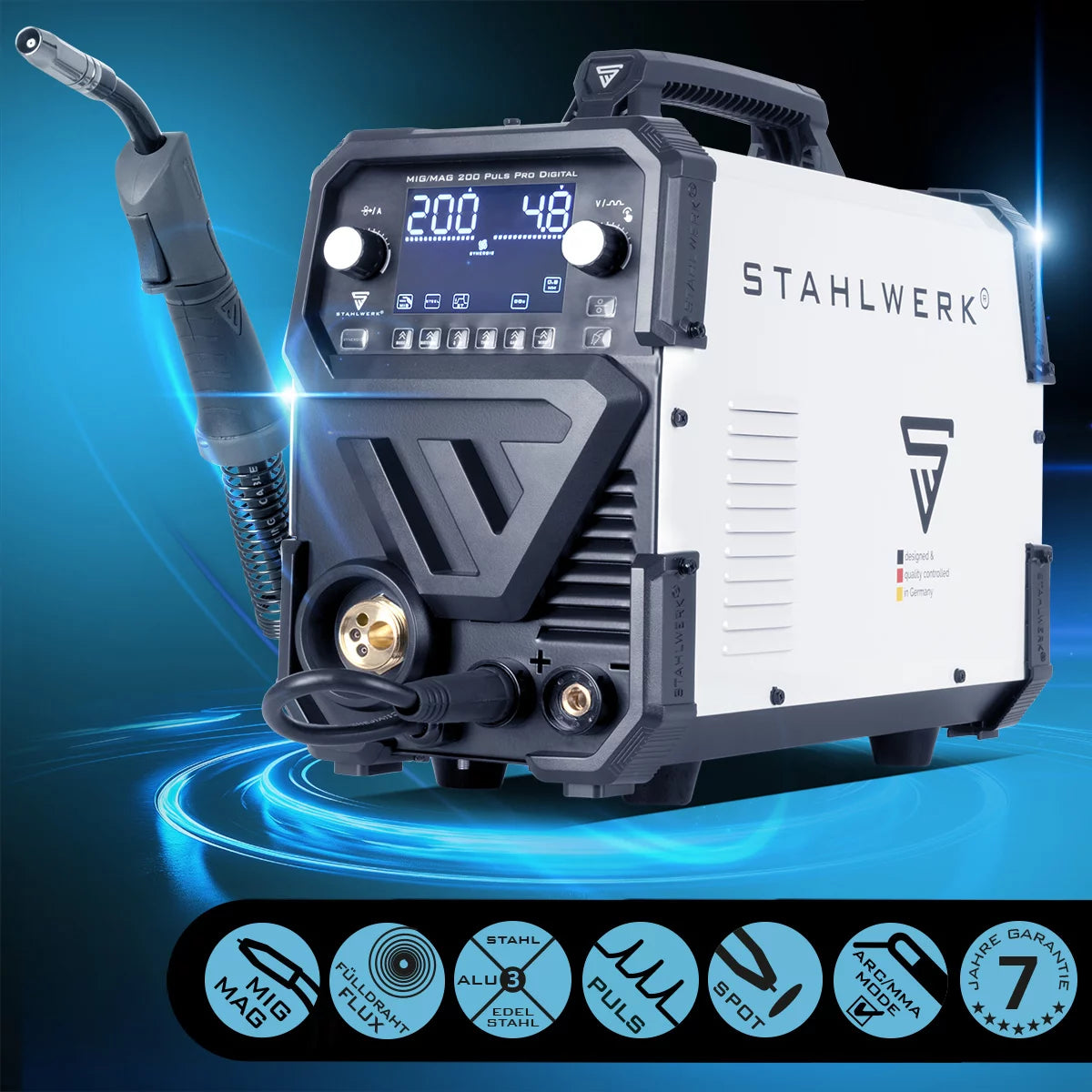

Stahlwerk MIG MAG 200 Spot Puls Pro Digital Protection gas welding device | IGBT Inverter with 200 A, synergic wire feed, 4-roll drive, flux, lift-tig and MMA/ARC function | MIG pulse for aluminum

• Spot dot welding function. Particularly suitable in the vehicle area for thin body parts. As a result, the issue points are precisely reproducible and even.
• MIG pulse - The pulse function keeps the heat input low and the welding of aluminum enables.

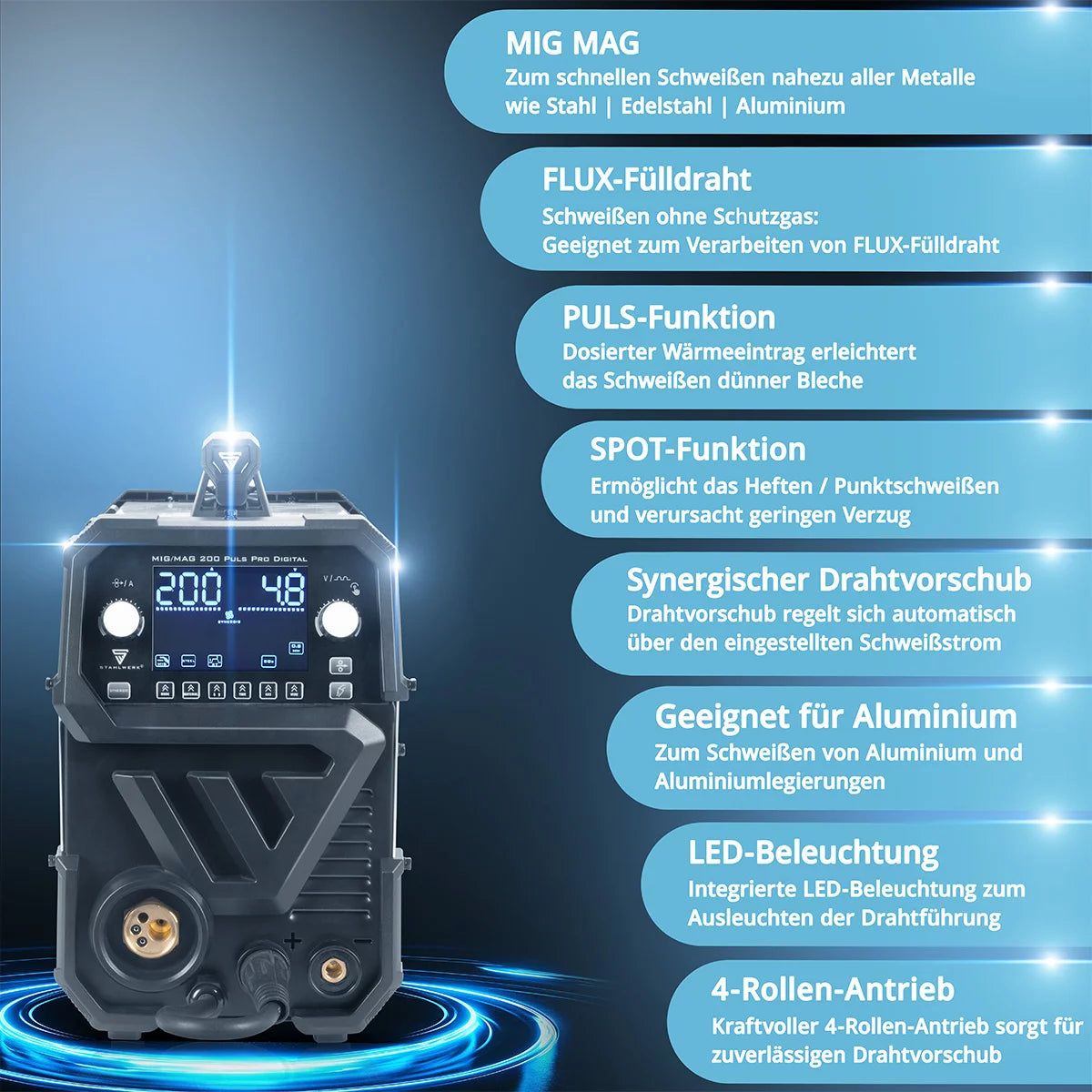

• MIG MAG - metal protection gas welding with DC (DC). It can be welded with inactive/inerts (MIG, e.g. Argon) or with active (MAG, e.g. CO²) gases. Gas and welding wire come from a burner head and enable welding work to be carried out with just one hand.
• Fill wire-All of our devices can use fill wire (flux-cored wire). This enables welding without protective gas.
• MMA electrode welding / MMA welding - is a universal welding process. No protective gas is required.
• Lift tig - with a separately available (not included in the scope of delivery), the hose package can also be welded with the device DC WIG (string ignition).
• Different welding parameters are adjustable. The welding device is suitable for precise welding of thin sheet as well as sheet metal and stainless steel. Due to the pulse function, the welding machine is also suitable for aluminum.
• Fully syngical welding machine: The voltage (volt) and the wire feed always adapts over the set welding current. The device is therefore very easy to use, especially for beginners.

• IGBT Technology - the latest and most modern transistor technology enables the highest performance and a high switching duration (ED)! No transformer, no MOSFET, the most modern IGBT!
• Preflow / gas lead. Thanks to the gas flow, the protective gas flow begins before the arc is ignited. This prevents the workpiece from getting in touch with air at the start of welding. This protects the weld seam from oxidation. Depending on the sweat requirement, the gas lead time can be set individually.
• Light & compact design - only 10.6 kg weight and dimensions of 460 x 210 x 350 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more difficult wear!
• The welding machine supplies the highest efficiency & performance - single -phase change current (230 V) and allows a output of real 200 amps.
• Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance.
• 4 Role drive - reliable and powerful wire feed. Thanks to 4 drive rollers, thicker wires are continuously and safely encouraged.
• Digital display: The set welding parameters can be easily read on a clear digital display. The different modes can be quickly adjusted by the intuitive menu.
• LED lighting-As a special highlight, the welding machine has an integrated LED light for illuminating the wire guide, which enables a quick change in the wire roll even in poor visibility. This automatically switches when the protective flap is opened.
• Trolling roller - commercially available wire rollers from 0.5 to 5 kg can be processed. The universal pulendorn can absorb both 16 and 50 mm coils.
• Wire drive rollers - Different wire thicknesses can be used by simply changing the drive rolls of 0.6 mm & 0.8 mm. By switching to the 1.0 mm & 1.2 mm drive roller with 'U' profile, aluminum wire can also be used.

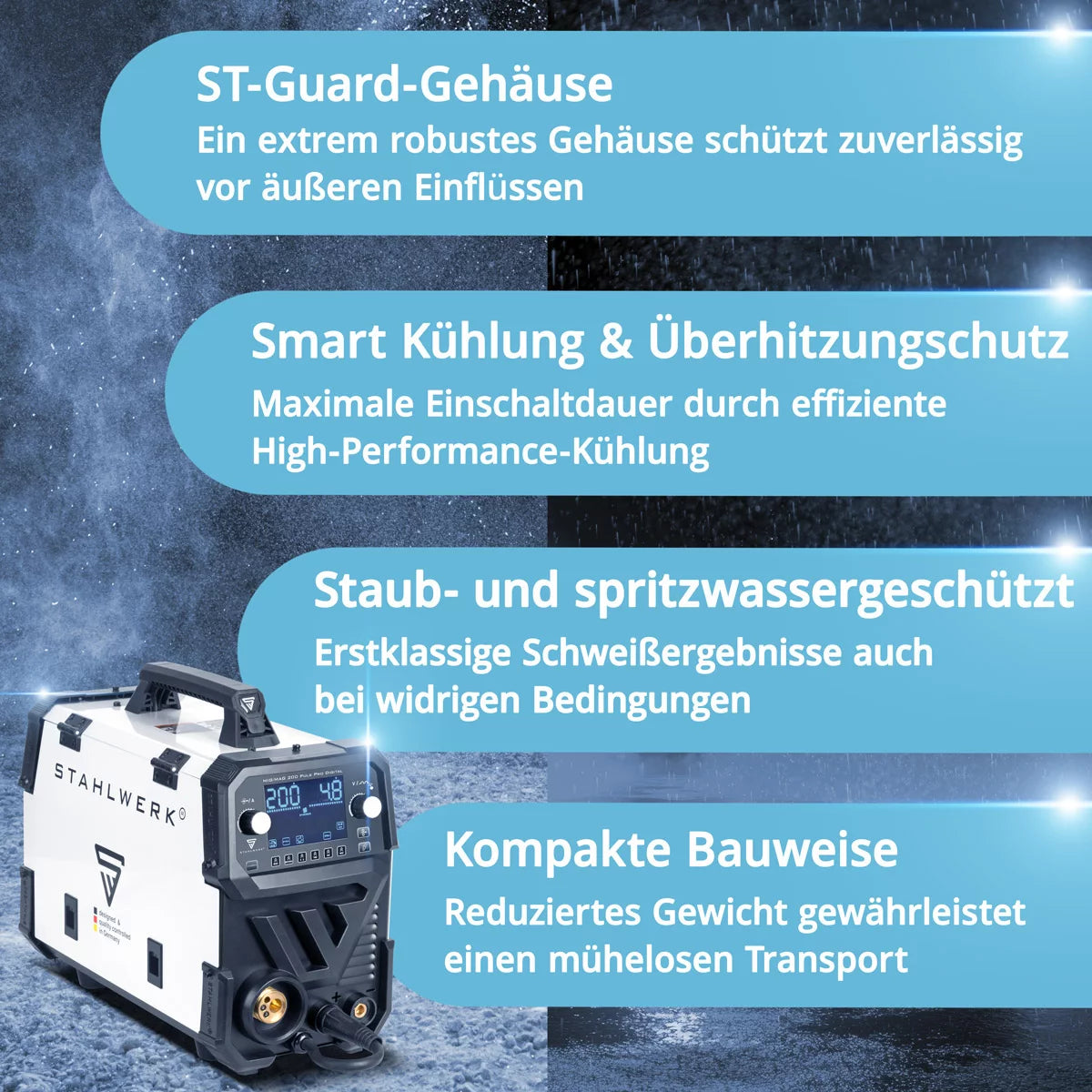

• ST-Guard housing-is ergonomic, robust and safe to operate. The control panel is conveniently accessible and can be operated intuitively.
• VRD (Voltage Reduction Device). Manual on/off of the VRD function enables the output voltage of the welding machine to be lowered to a safe level in order to protect the operator when touching the electrode as long as it is not welded.

A notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through a line -bound and emitted disturbance.

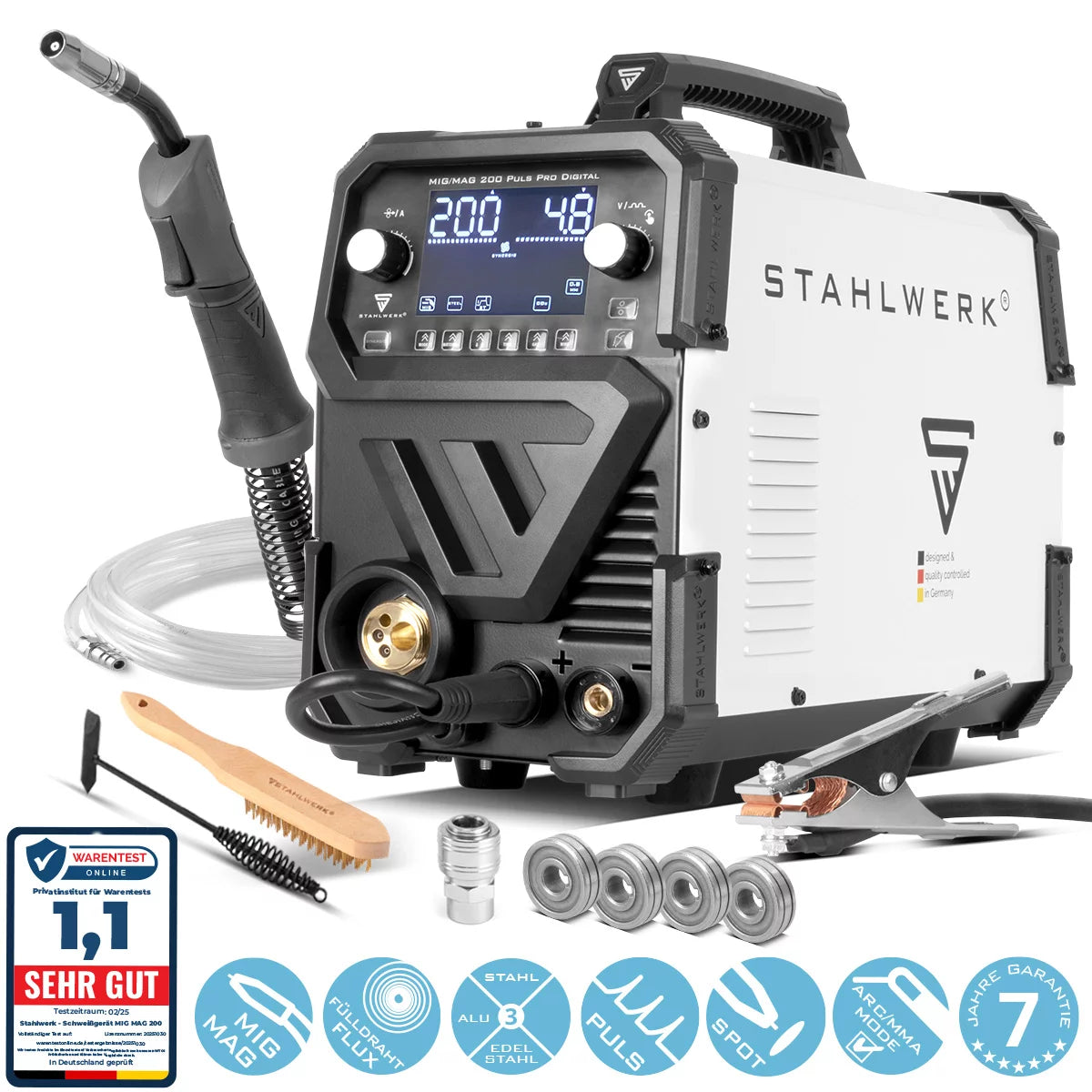

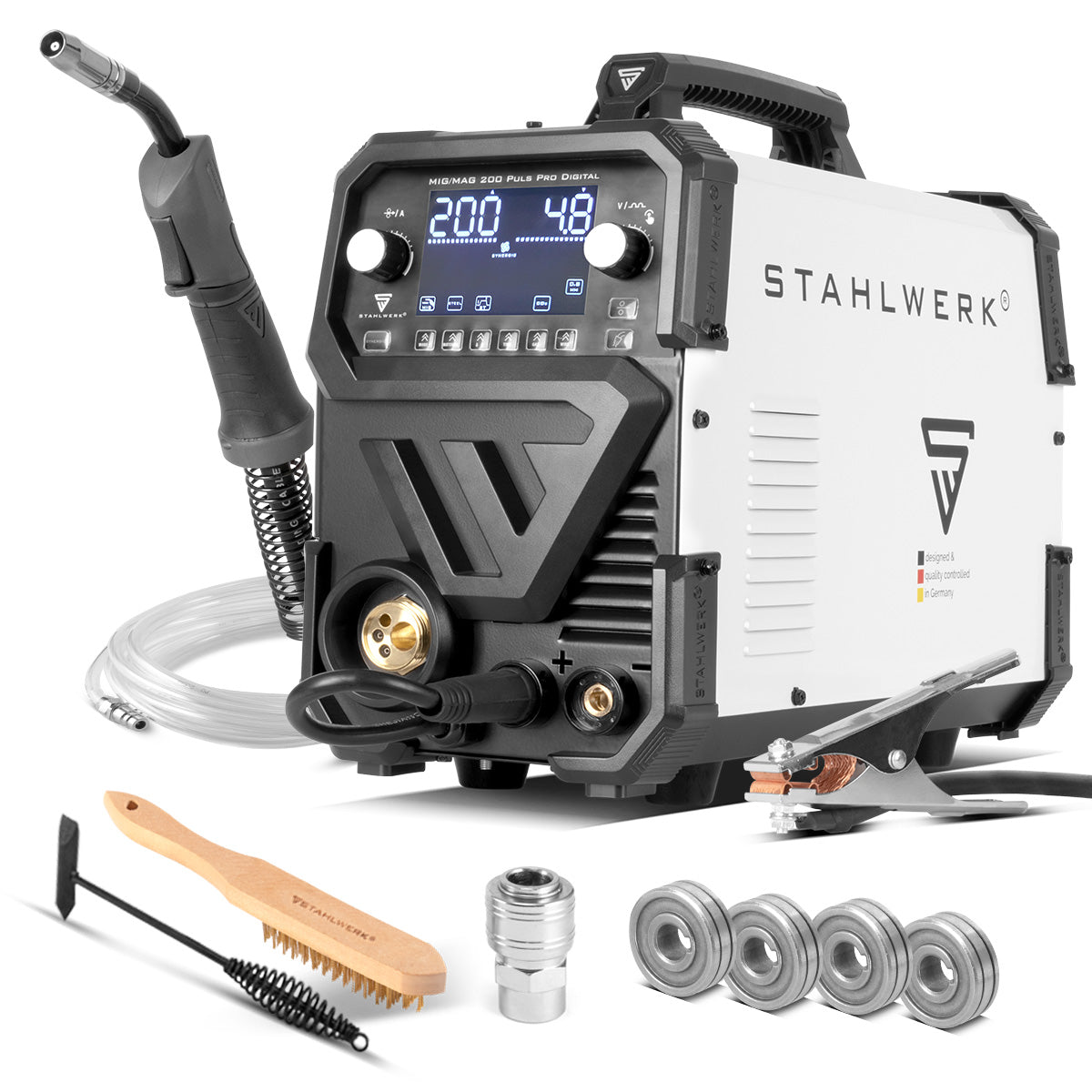

• 1 x steel mill MIG/MAG 200 PULS Pro Digital

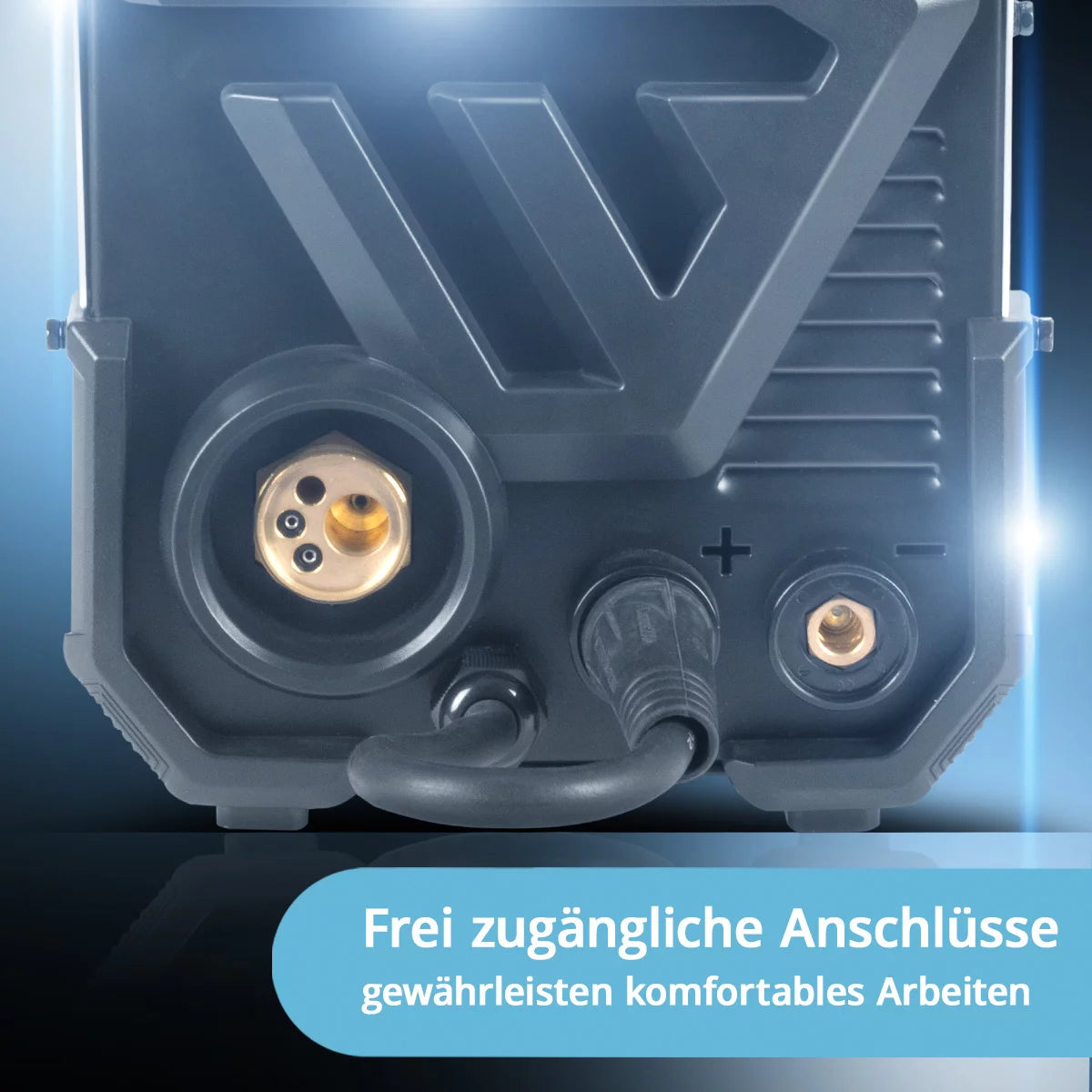

• 1 x professional MIG welding burner AK-15 / hose package 3 m with Euro central connection
• 2 x wire guide rolls Uform 1.0/1.2 mm
• 2 x wire guide rolls V-shape 0.6/0.8 mm
• 2 x wire guide rolls 0.8/1.0 mm (pre -assembled)
• 1 x gas connection hose with quick coupling 5 m
• 1 x speed coupling gas pressure reducer including the seal seal
• 1 x current nozzles 0.6/0.8/1.0 mm
• 1 x power nozzle al 1.0 mm
• 1 x mass cable 3 m
• 1 x Schlackhammer
• 1 x assembly key
• 1 x wire brush
• 1 x protective cover
