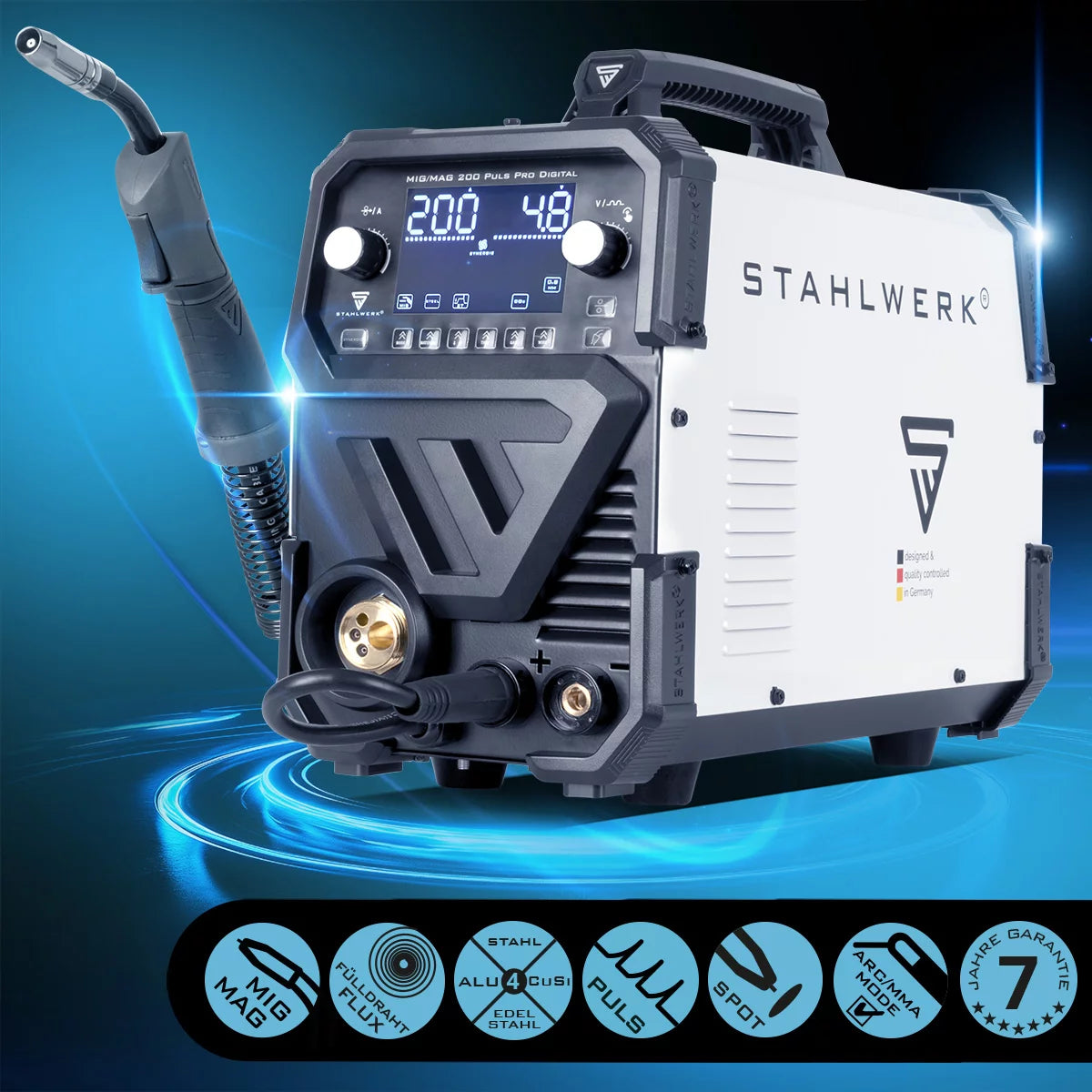

STAHLWERK MIG MAG 200 Spot Puls Pro Digital fully equipped inert gas welding machine | IGBT inverter 200 A | Synergic wire feeder | 4 roller drive | FLUX, Lift-TIG, MMA, CuSi | MIG pulse for aluminum

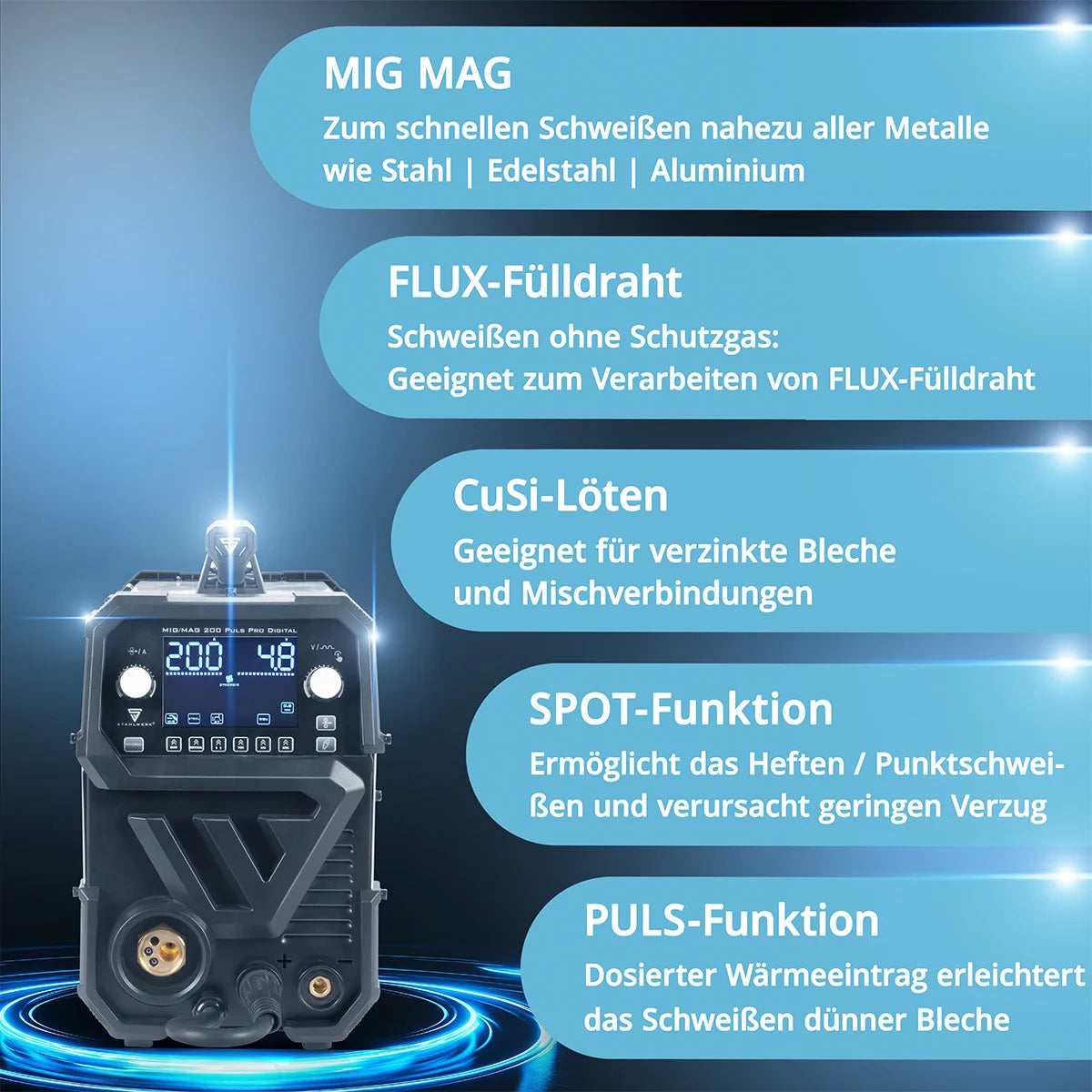

• Spot spot welding function. Particularly suitable in the automotive sector for thin body parts. This means that the stitching points are precisely reproducible and uniform.
• MIG Pulse - the pulse function keeps heat input low and enables welding of aluminum. CuSi soldering is also easy to implement in the aluminum-silicon program.
• MIG MAG - metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG, e.g. argon) or with active (MAG, e.g. CO²) gases. Gas and welding wire come from a torch head and allow welding work to be carried out with just one hand.
• Cored wire - all of our devices can use flux cored wire. This makes welding possible without inert gas.
• MMA electrode welding / MMA welding - is a universal welding process. No protective gas is required.
• Lift TIG - With a separately available hose package (not included in delivery), the device can also be used for DC TIG welding (string ignition).
• Various welding parameters can be set. The welding machine is suitable for precise welding of thin sheet metal as well as sheet metal and stainless steel. Due to the pulse function, the welding machine is also suitable for aluminum.
• Fully synergic welding machine: the voltage (volts) and also the wire feed always adapt accordingly to the set welding current. This makes the device very easy to use, especially for beginners.

• IGBT technology - Latest and most modern transistor technology enables maximum performance and a long duty cycle (ED)! No transformer, no MOSFET, state-of-the-art IGBT!
• Preflow / gas flow. Thanks to the gas flow, the protective gas flow begins before the arc is ignited. This prevents the workpiece from coming into contact with air when welding begins. This protects the weld seam from oxidation. The gas lead time can be adjusted individually depending on the welding requirements.

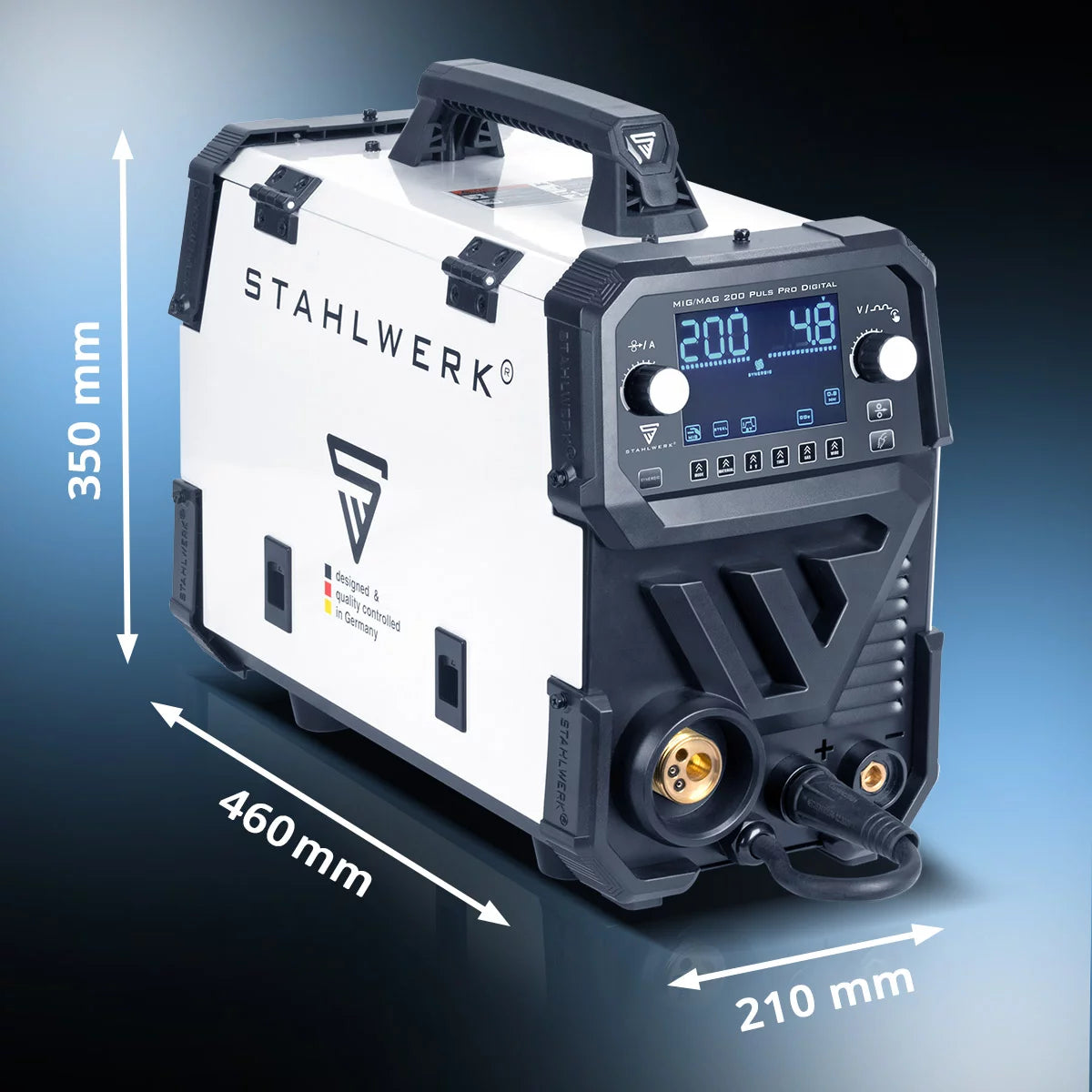

• Lightweight & compact design - only 10.6 kg weight and dimensions of 460 x 210 x 350 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
• Highest efficiency & performance - Single-phase alternating current (230 V) supplies the welding machine and allows an output power of real 200 amps.
• Smart cooling & overheating protection - State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance to be achieved.
• 4 roller drive - reliable and powerful wire feed. Thanks to 4 drive rollers, even thicker wires are conveyed continuously and safely.

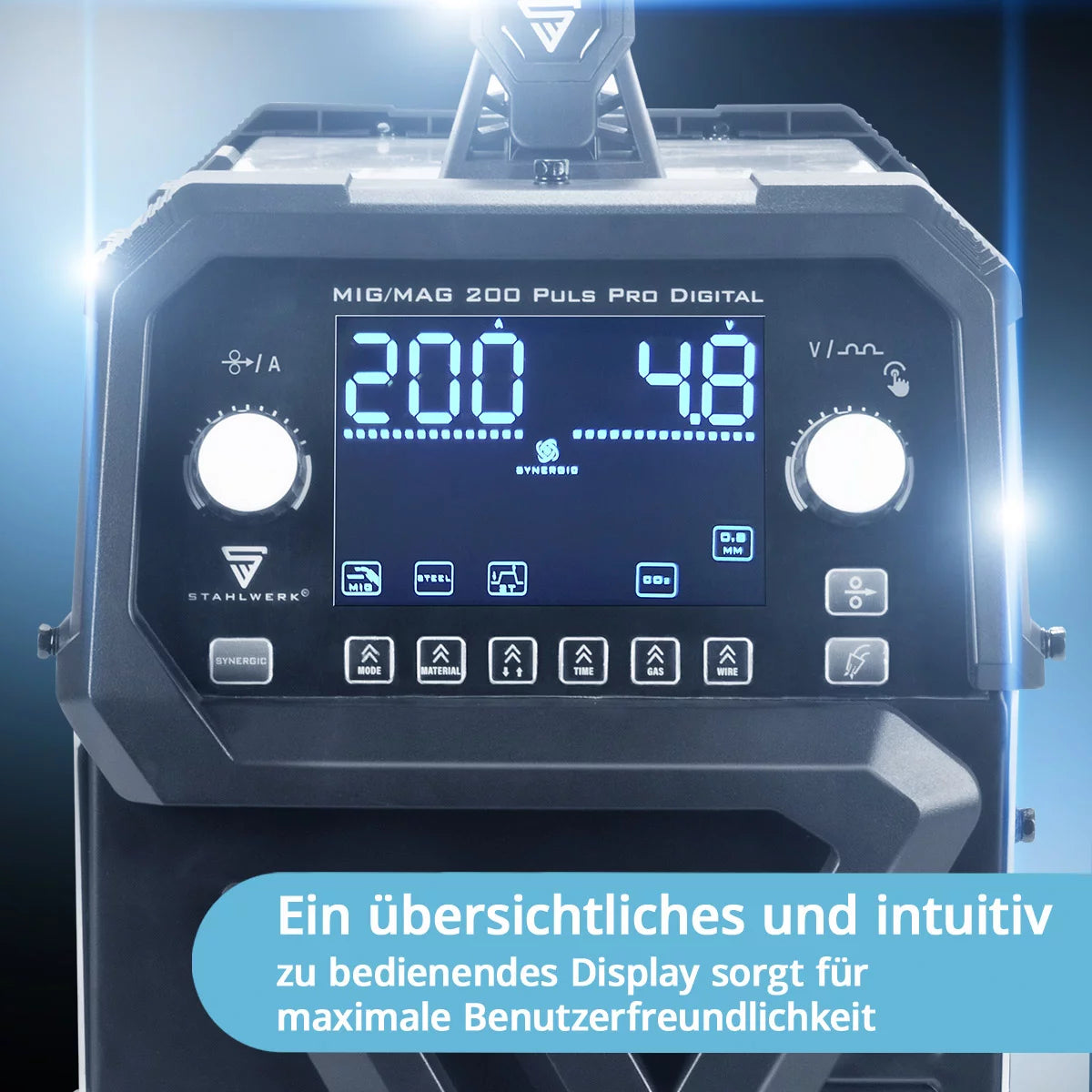

• Digital display: The set welding parameters can be easily read on a clear digital display. The different modes can be quickly set using the intuitive menu.
• LED lighting - As a special highlight, the welding machine has an integrated LED light to illuminate the wire guide, which enables the wire roll to be changed quickly even in poor visibility conditions. This switches on automatically when the protective flap is opened.
• Wire roll - Commercially available wire rolls of 0.5 to 5 kg can be processed. The universal bobbin mandrel can hold both 16 and 50 mm bobbins.
• Wire drive rollers - by simply changing the drive rollers of 0.6 mm & 0.8 mm, different wire thicknesses can be used. By switching to the 1.0 mm & 1.2 mm drive rollers with 'U' profile, aluminum wire can also be used.
• ST-Guard housing - Is ergonomic, robust and operationally safe. The control panel is conveniently accessible and intuitive to use.
• VRD (Voltage Reduction Device). Manual on/off switching of the VRD function allows the output voltage of the welding machine to be reduced to a safe level to protect the operator when touching the electrode while not welding is in progress.

Note: The device is not intended for use in residential areas where power is supplied via a public low-voltage power supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

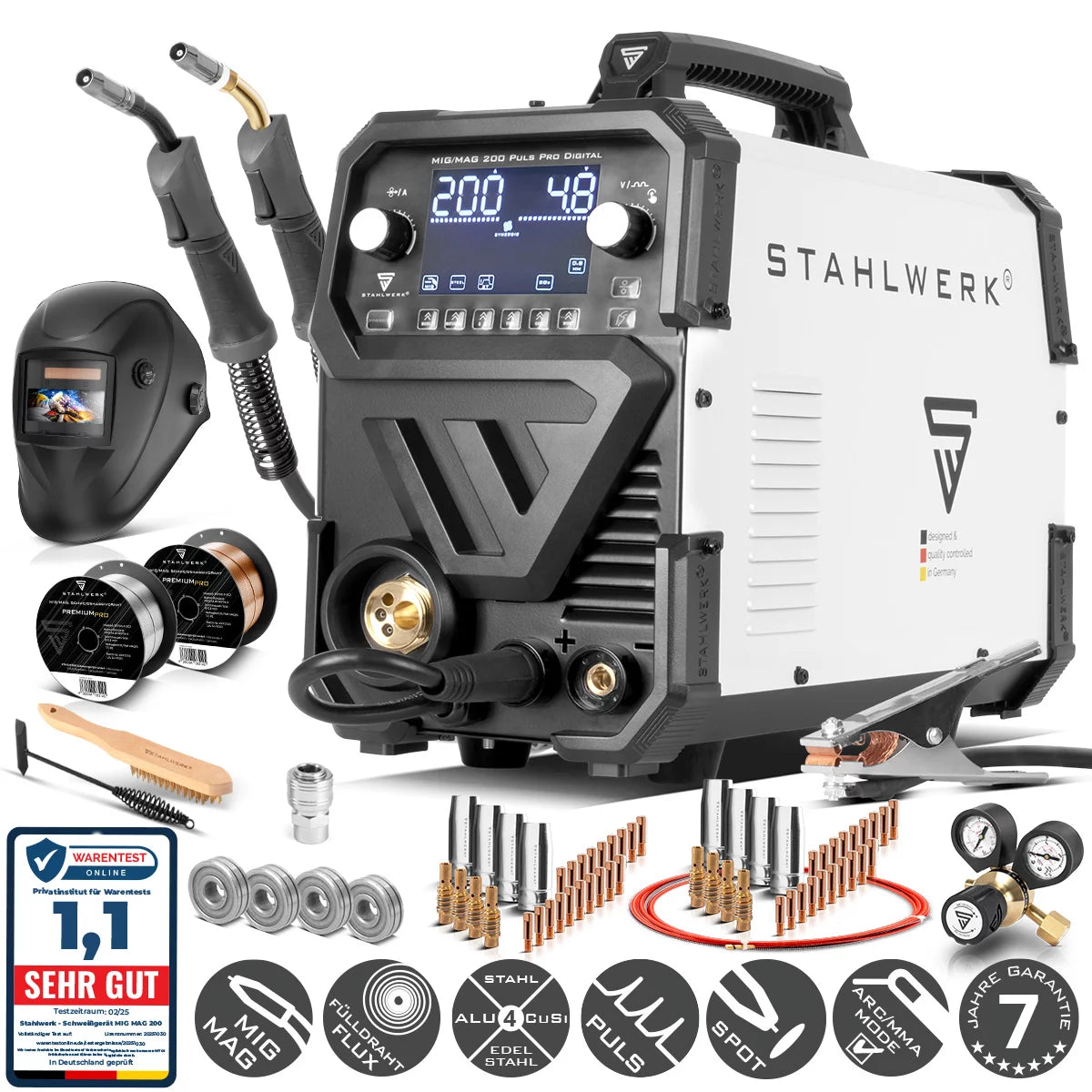

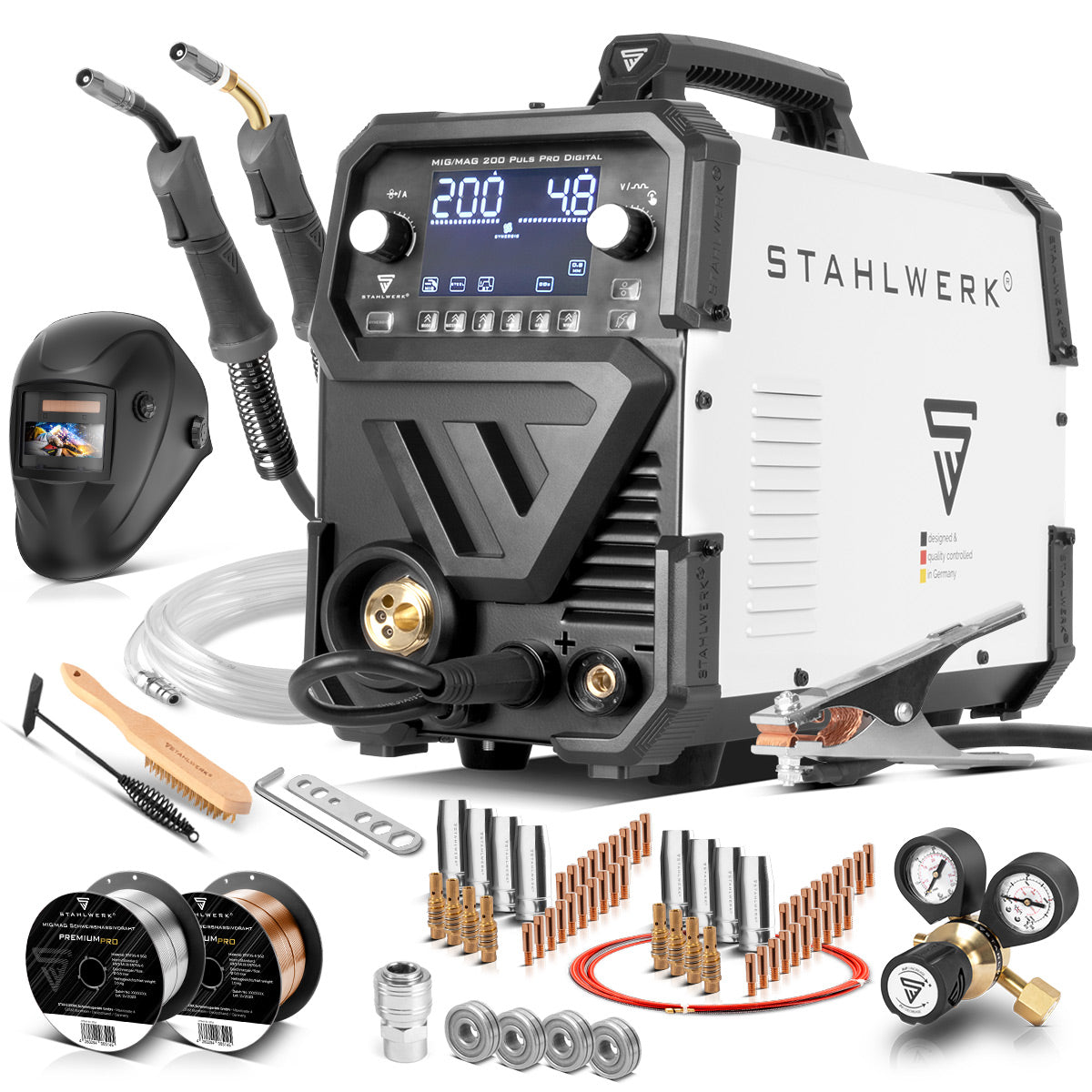

• 1 x STAHLWERK MIG/MAG 200 Puls Pro Digital

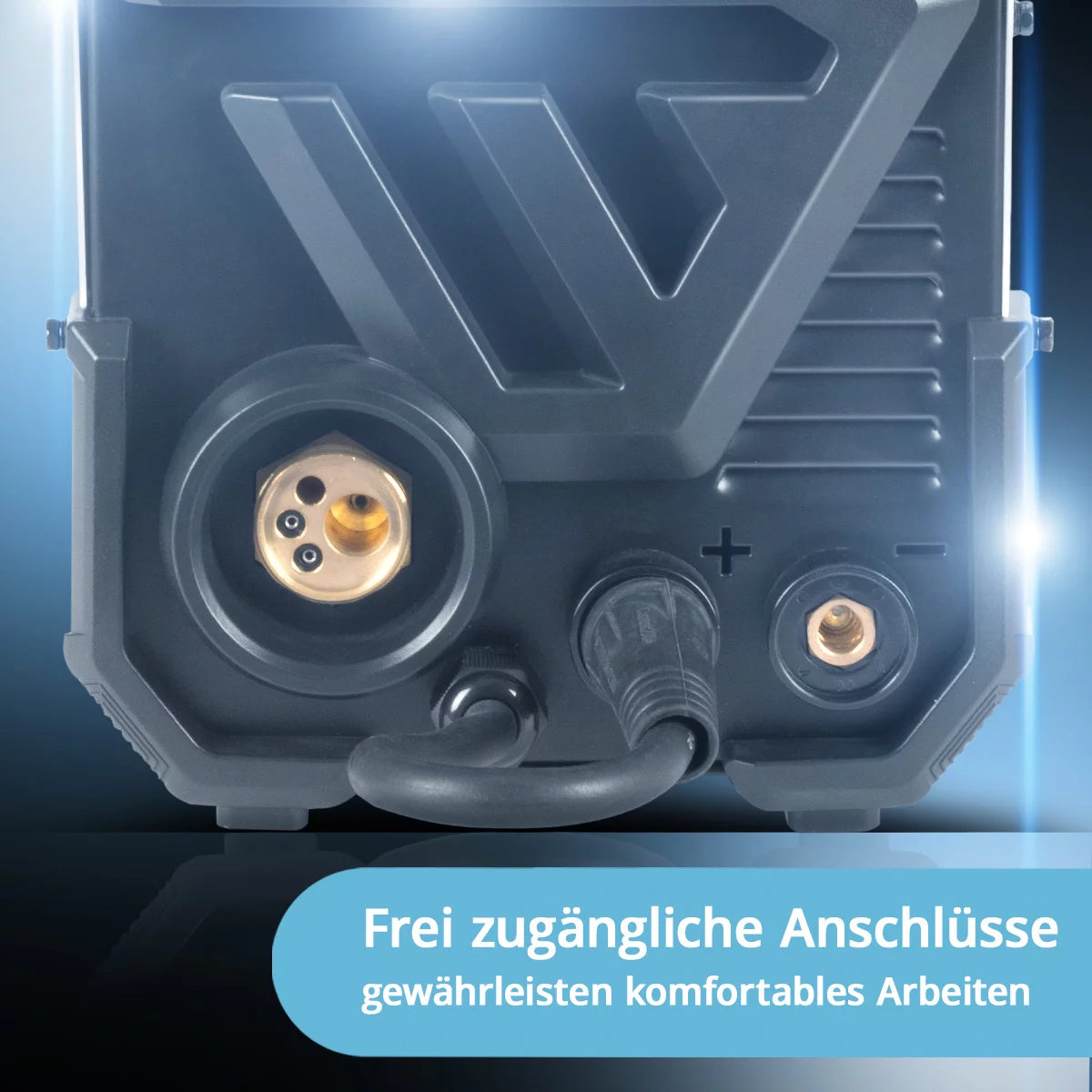

• 1 x professional MIG welding torch AK-15 / hose package 3 m with Euro central connection
• 1 x MIG MAG welding torch AK25/MB25 for aluminum with 3 meter hose package and carbon core as well as Euro central connection
• 1 x MIG MAG wearing parts set aluminum for AK25/MB25 welding torch 28 pieces
• 1 x AK15/MB15 wearing parts set, 28 pieces
• 1 x MIG MAG aluminum welding wire wire roll
• 1 x welding wire MIG/MAG steel Ø 0.8 mm ER70S-6 SG2 wire roll 5 kg
• 2 x wire guide rollers U-shape 1.0/1.2 mm
• 2 x wire guide rollers V-shape 0.6/0.8 mm
• 2 x wire guide rollers 0.8/1.0 mm (pre-assembled)
• 1 x steel core
• 1 x gas connection hose with quick coupling 5 m
• 1 x quick coupling gas pressure reducer including O-seal
• 1 x contact tip each 0.6/0.8/1.0 mm
• 1 x contact tip AL 1.0 mm
• 1 x ground cable 3 m
• 1 x Slag Hammer
• 1 x Assembly Wrench
• 1 x Wire Brush
• 1 x Protective Case
• 1 x pressure reducer
• 1 x professional welding helmet
• 1 x CH fixed adapter 16A
