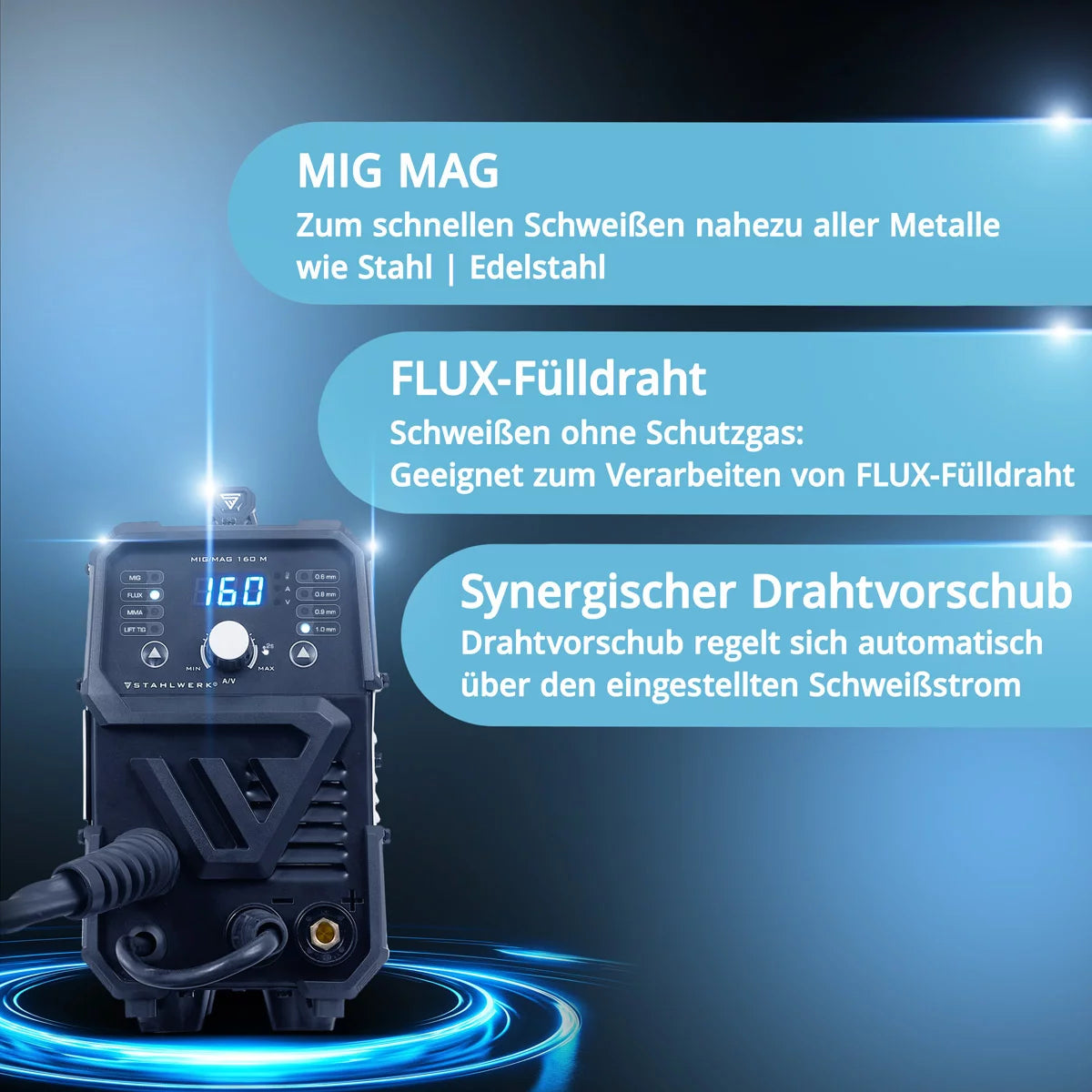

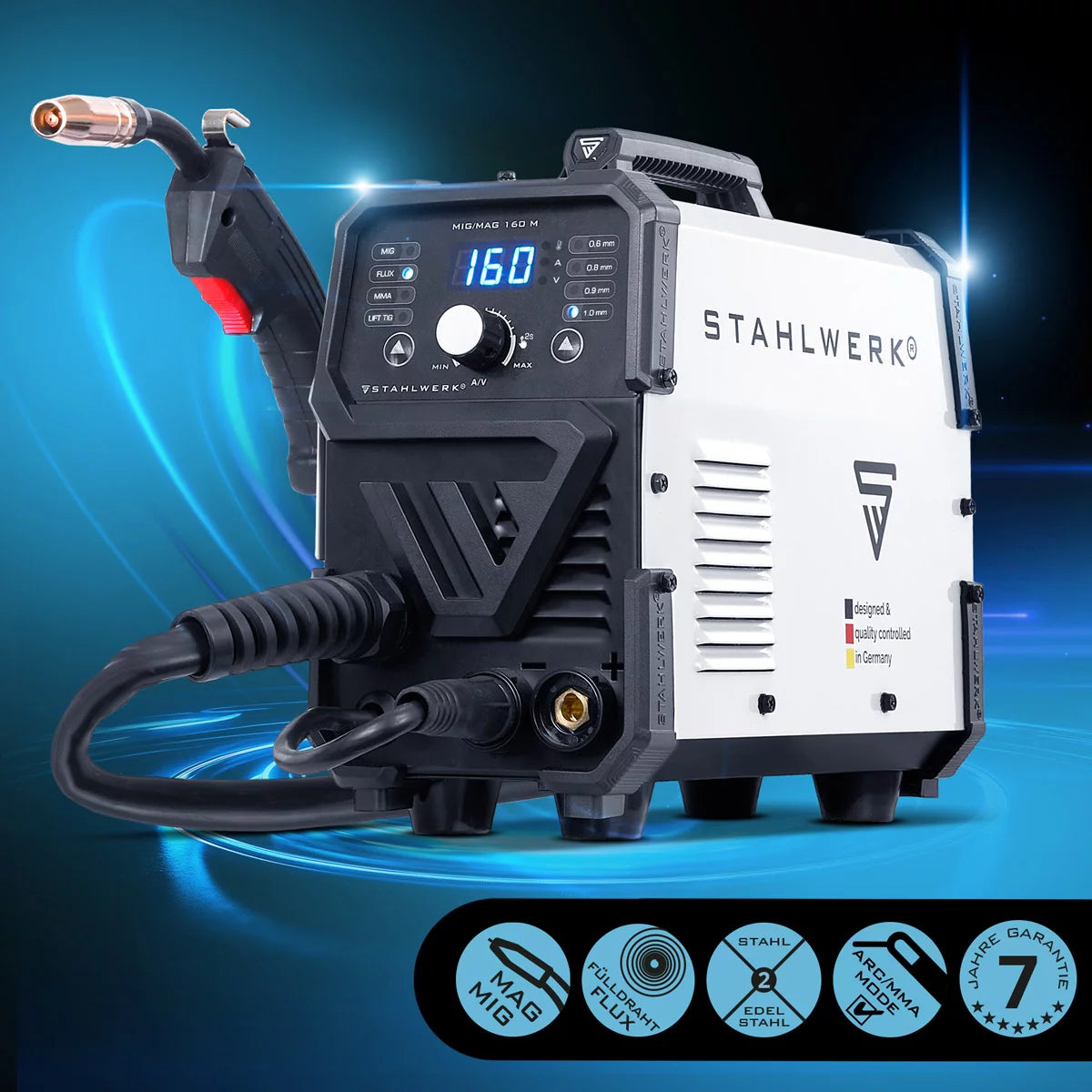

STAHLWERK MIG/MAG 160 M welding machine Fully synergic 5 in 1 combination device with real 160 amps and 2 rolls of drive/cored wire, MIG MAG, ARC MMA, Lift TIG

• MIG/MAG inert gas welding (GMAW): MIG with inert gas (e.g. argon) and MAG with active gas (e.g. CO₂ or mixed gas) for unalloyed and low-alloy steels; Wire and gas come out of the torch together, ideal for productive work with just one hand.
• FLUX/cored wire welding without gas (FCAW): MIG/MAG-like process with a special cored wire electrode in which the flux core provides gas protection - ideal for outdoor work and drafts.
• MMA/MAC welding (ARC): Manual electrode welding with direct current (20-160 A) for robust repair and assembly work, even in hard-to-reach places. Can be used universally indoors and outdoors, even in windy conditions and on construction sites.
• DC-Lift-TIG welding (TIG with contact ignition): Lift-TIG mode with optional WP-17V torch: Ignition by briefly brushing the tungsten electrode, quiet DC arc for clean, controlled seams on steel and stainless steel.
• Fully synergic device: The wire feed speed automatically adapts to the set welding current and voltage. The wire is conveyed from the reel through the hose package to the contact tip. The automatic adjustment of the welding current reduces operating errors and creates uniform seams.
• Hotstart and Anti-Stick: Hotstart briefly increases the voltage for better ignition, Anti-Stick reduces the current in the event of a short circuit so that the electrode does not burn out and can be easily removed.
• Electronic safety control: Modern IGBT inverter technology, overheating protection with control LED, smart cooling via powerful fan and ergonomic ST-Guard housing with easily accessible control panel ensure safe and efficient work.

• Versatile 5-in-1 professional for workshops and assembly: One device for MIG/MAG, FLUX, MMA and Lift-TIG - ideal when there is little space in the workshop or service vehicle but different processes are required.

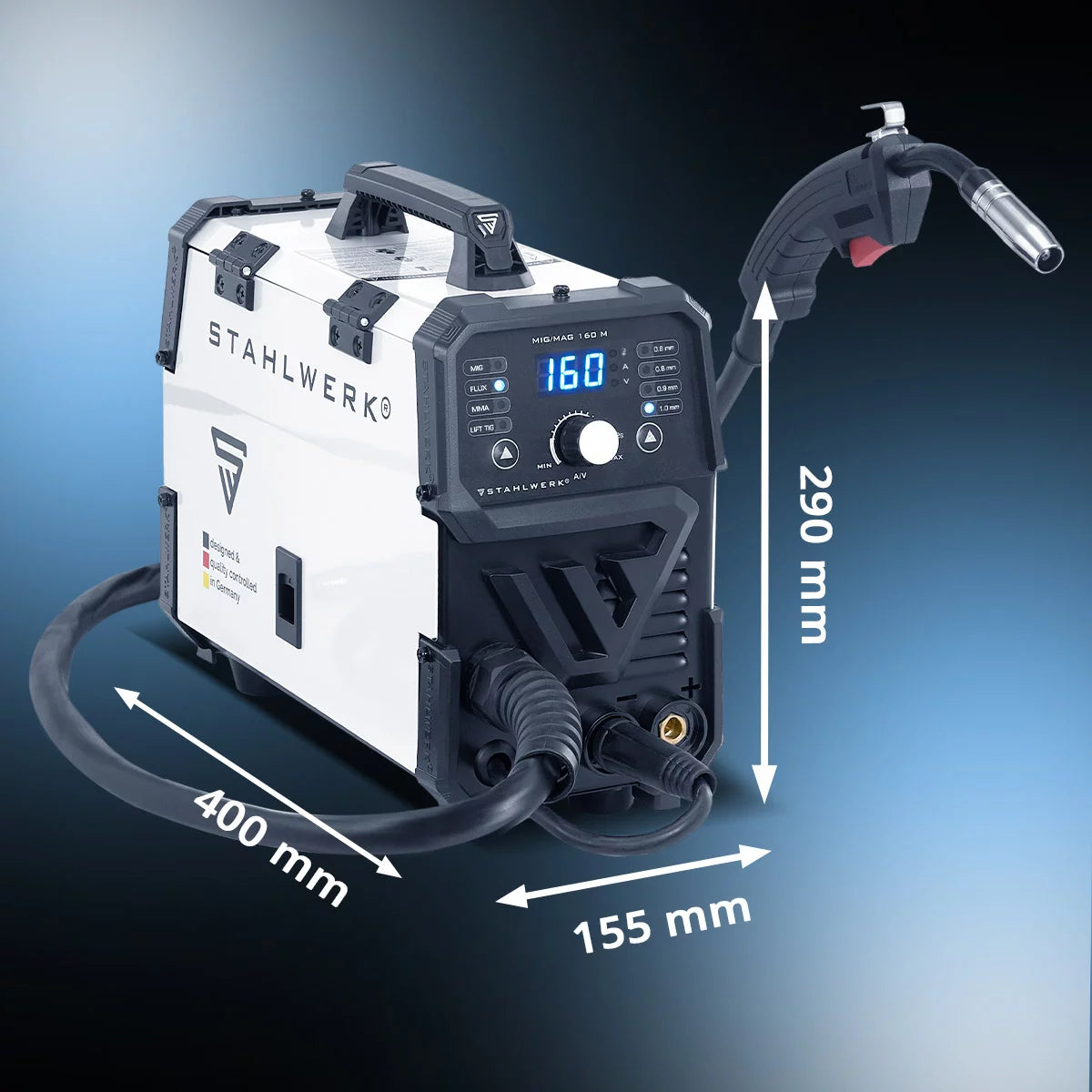

• High mobility, low weight: With only approx. 6.8 kg and compact dimensions of 400 × 155 × 290 mm, the device is easy to transport and can be used flexibly at different work locations.
• Optimum duty cycle: 15% duty cycle at 160 A, 60% at 80 A and 100% at 62 A (MIG/MAG/TIG/MMA, 40 °C) enable both short, powerful seams in the upper current range and longer welding jobs in the medium power range.
• Clean results with inert gas or cored wire: MIG/MAG with inert gas delivers smooth, low-spatter seams, while FLUX cored wire does not require an external gas bottle - particularly practical outdoors and for mobile use.

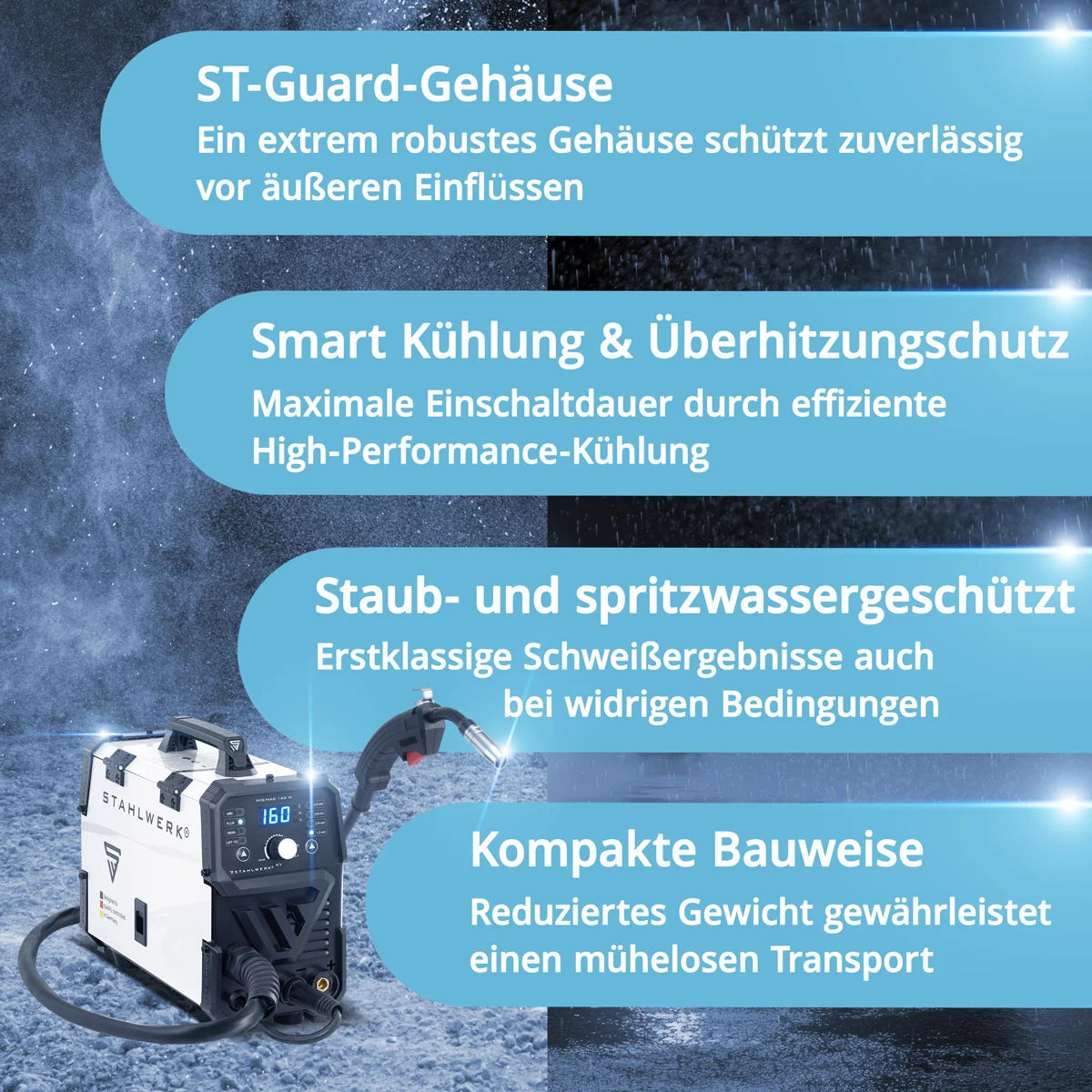

• Robust ST-Guard housing and smart cooling: The ergonomic housing protects the electronics, ventilation openings and fans ensure effective cooling and enable the maximum duty cycle to be used.

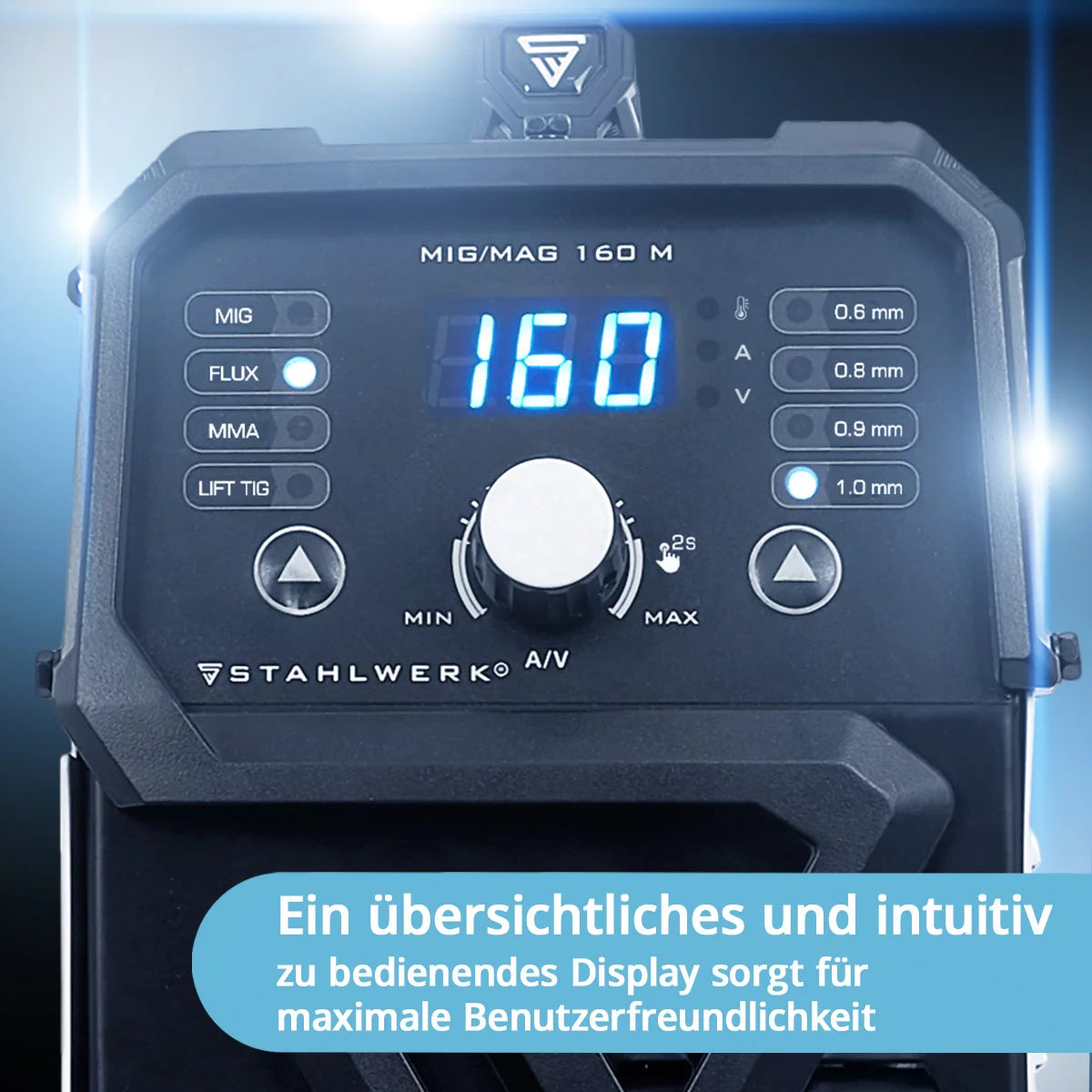

• Easy handling thanks to the digital display: Clearly structured front with process and wire thickness selection, digital current/voltage display and switching function make it easy to quickly adjust the parameters. Settings can be made quickly, which saves time, especially when switching between processes (e.g. MIG and MMA) frequently.
• Wire roll - Commercially available 1 kg wire rolls can be processed here. The bobbin mandrel can hold 16 mm bobbins.
• Wire drive roller - by simply changing the drive roller, different wire thicknesses can be used (0.6 mm / 0.8 mm / 1.0 mm).
• MMA electrode welding / MMA welding - is a universal welding process. No protective gas is required.
• Lift TIG - With a separately available hose package (not included in delivery), the device can also be used for DC TIG welding (string ignition).

Note: The device is not intended for use in residential areas where power is supplied from a public low-voltage power supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

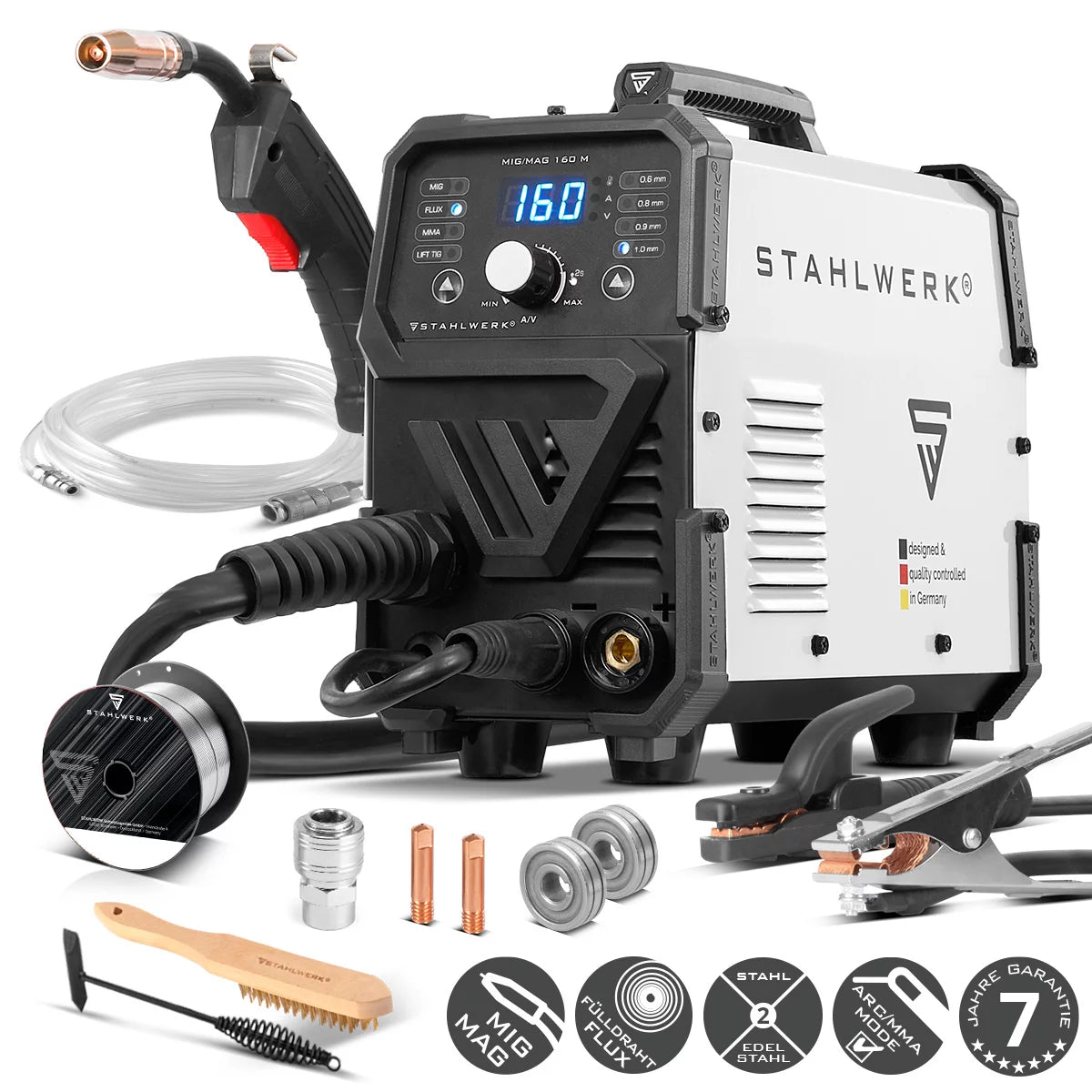

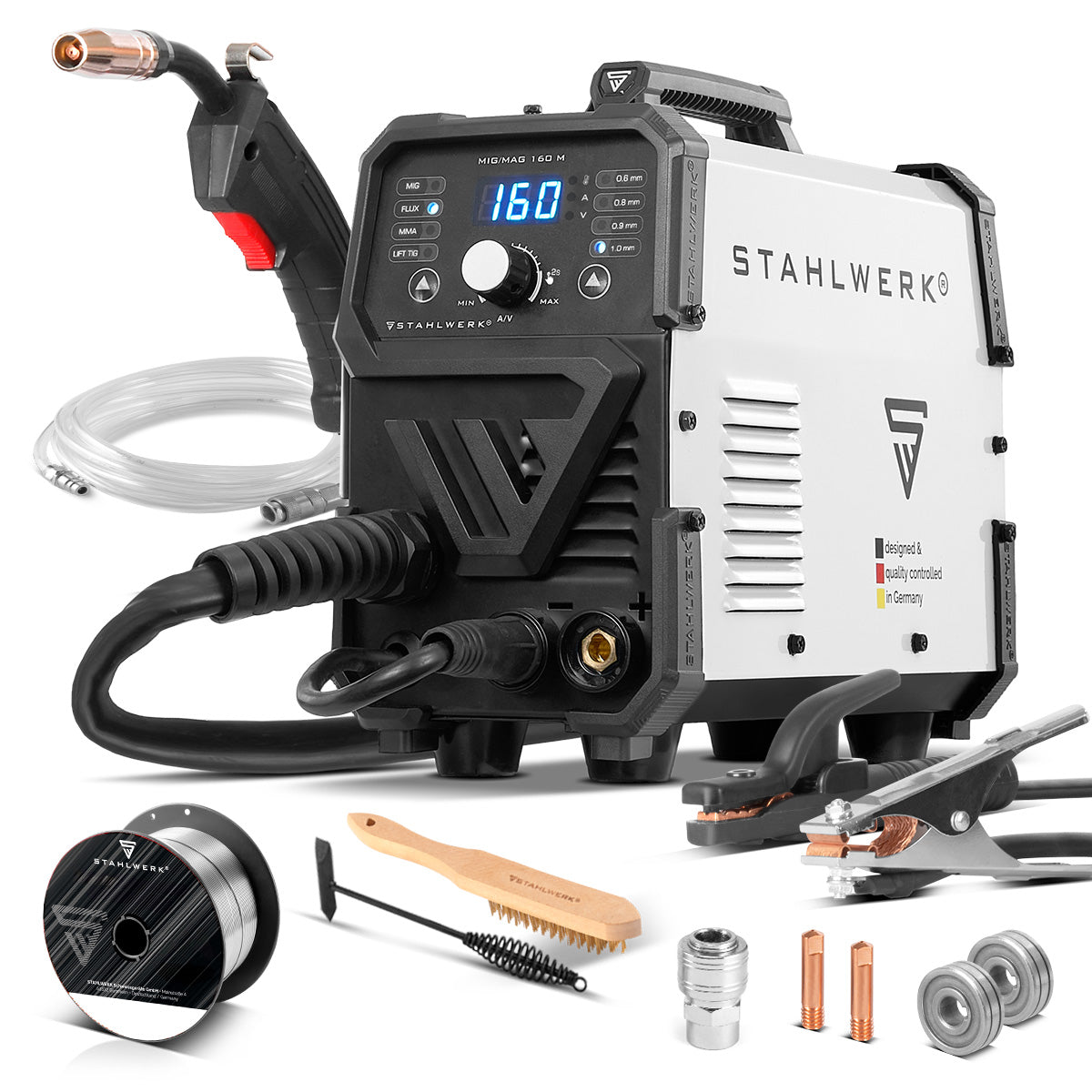

• 1 x welding machine STAHLWERK MIG 160 M IGBT
• 1 x professional MIG welding torch AK-15 / hose package 2 meters. This is permanently installed on the device
• 1 x MIG accessory set, 3 pieces (this is already pre-assembled on the MIG/MAG torch):
  - 1 x gas nozzle
  - 1 x contact tip 0.8 mm
  - 1 x gas nozzle holder
• 1 x contact tip M6 x 28 - ø 0.8 mm
• 1 x contact tip M6 x 28 - ø 1.0 mm
• 1 x 0.45 kg cored wire roll 0.8 mm
• 1 x ground cable 3 meters
• 1 x electrode holder 3 meters
• 1 x Wire Brush
• 1 x Slag Hammer
• 1 x quick coupling for pressure reducer
• 1 x gas connection hose with quick coupling 5 meters
• 1 x wire guide roller 0.6 mm & 0.8 mm, 0.8 mm & 0.9 mm (0.8 mm & 1.0 mm is already installed in the device)
• 1 x Protective Case
• 1 x Swiss fix adapter
