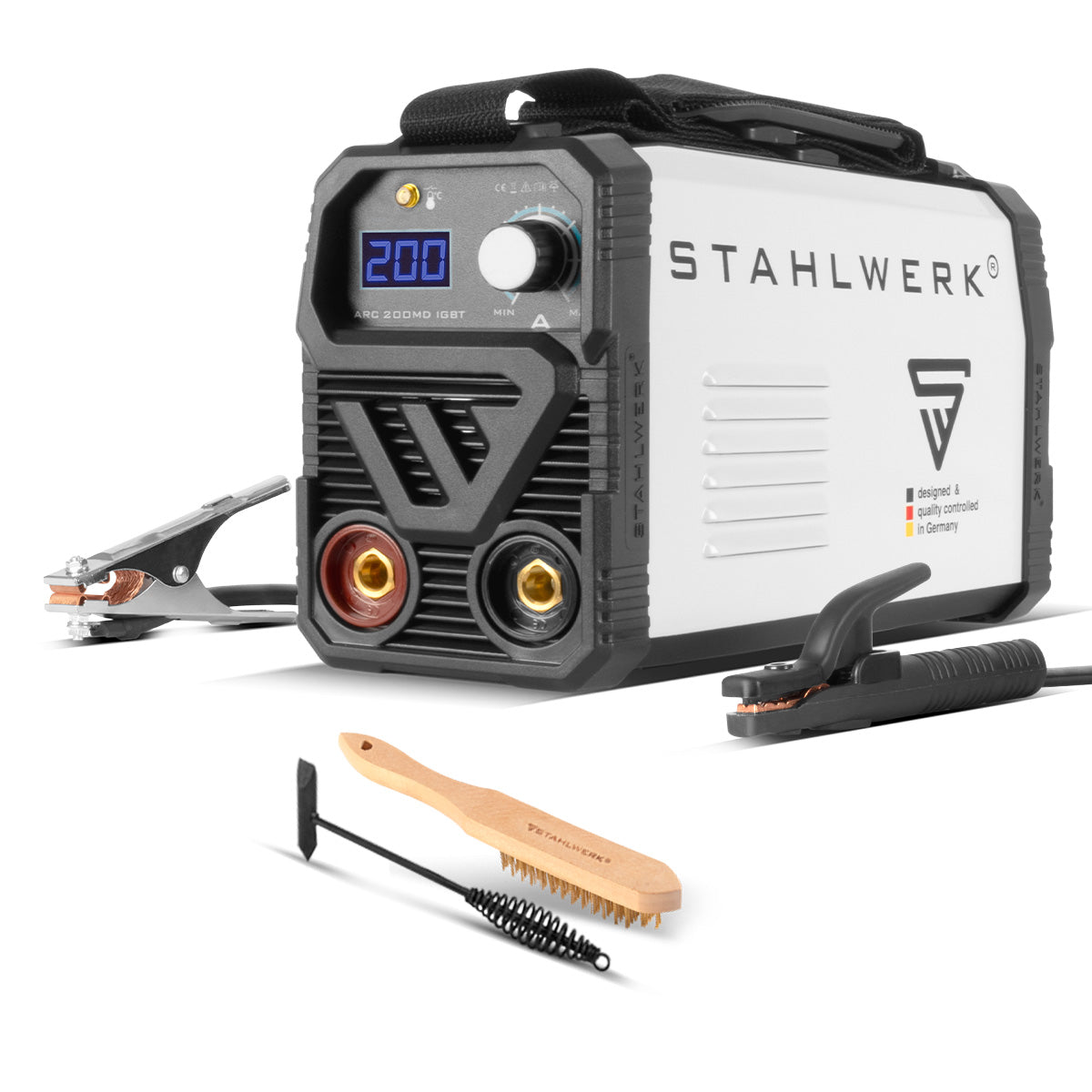

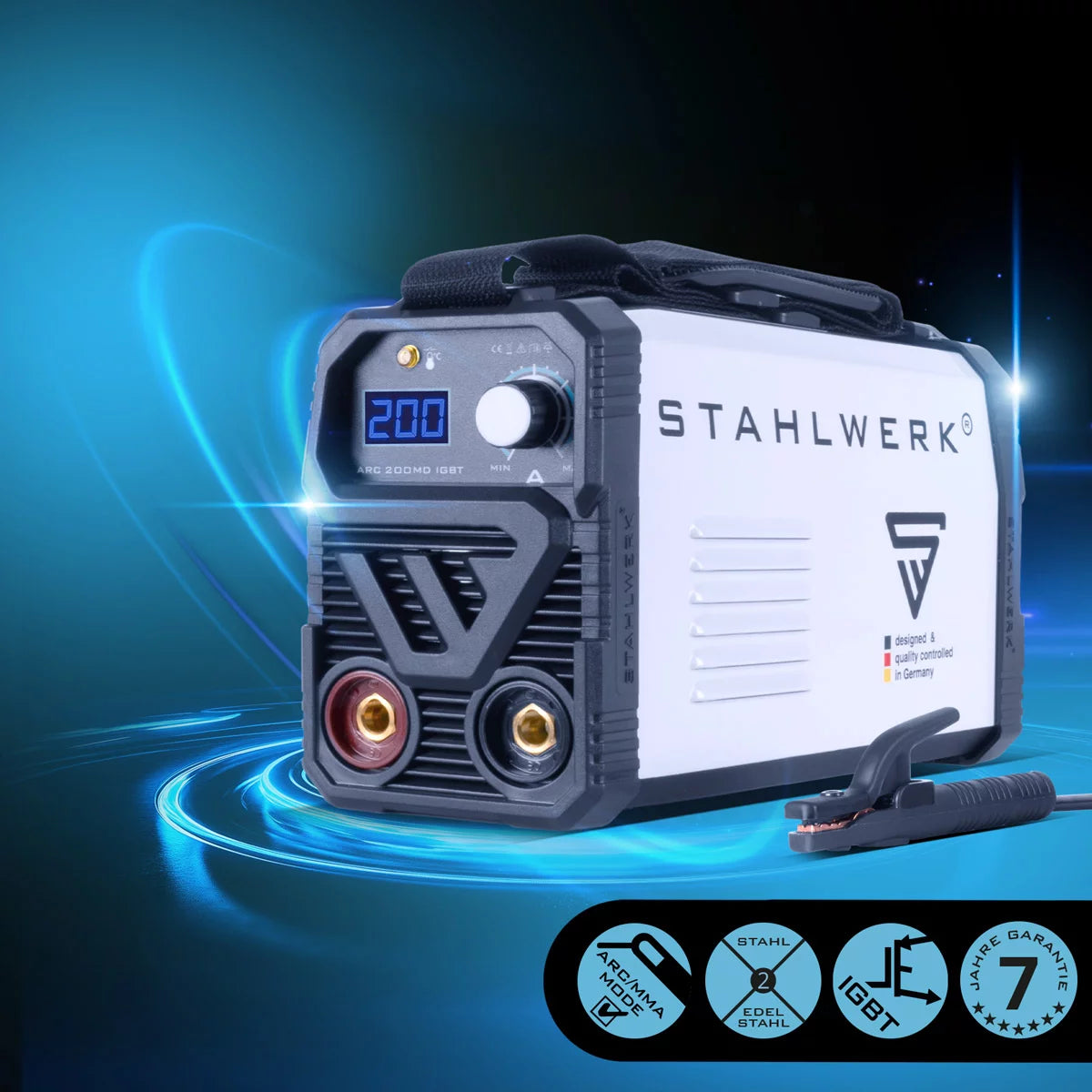

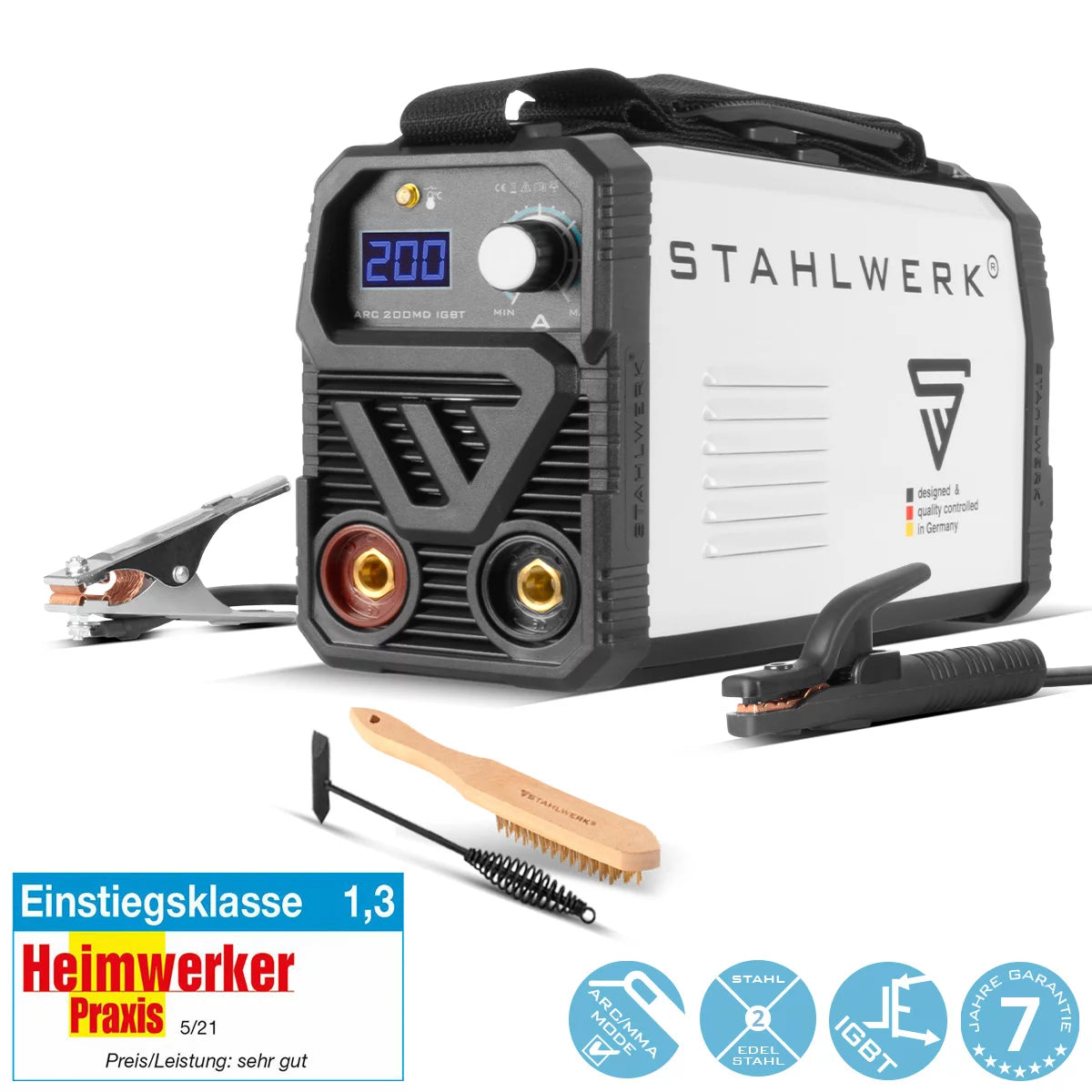

Stahlwerk ARC 200 MD welding equipment - DC MMA | E-hand | Lift-Tig inverter with 200 ampere, IGBT technology and single board, 7-year manufacturer guarantee

Stahlwerk

Stahlwerk ARC 200 MD welding equipment - DC MMA | E-hand | Lift-Tig inverter with 200 ampere, IGBT technology and single board, 7-year manufacturer guarantee

Name: Stahlwerk ARC 200 MD welding equipment - DC MMA | E-hand | Lift-Tig inverter with 200 ampere, IGBT technology and single board, 7-year manufacturer guarantee
Brand: Stahlwerk
SKU: 2-5-2-1798-001-A
Price: 199.9 CHF
Availability: OutOfStock

Sku: 2-5-2-1798-001-A

CHF 199.90

Sold out

The Stahlwerk ARC 200 MD welding machine convinces with real 200 amps, single board and IGBT technology of the latest generation. Thanks to the compact design with integrated single board, the device can be used flexibly without having to do without the advantages of IGBT technology - such as a high switching frequency, stable welding currents and high thermal stability. In combination with the steel mill WP-17V welding burner, the versatile inverter welding machine can be converted into a WIG welding device with lift-tig. In addition, the MMA welding device also has a smart cooling and overheating protection.

Sichere Zahlungsmöglichkeiten

Free shipping in Switzerland and Liechtenstein!

30 day money back guarantee

Purchase on account

Technical data

Output current MMA	30-200 a
Type of protection	IP21S
Mains voltage	230 V AC (+-15%) / 1 ~ (single phase)
Network frequency	50/60 Hz
Maximum network current (i_1max)	40.3a
Largest effective network current (i_1eff)	13.3a
Weight	3.2 kg
Dimensions L x W x H (mm)	245 x 100 x 160
Network connection	CEE 7/7 Schuko plug with CH sockets fixed adapter
Stand up	IEC 60974-1; EN 60974-10 (Class A)
IGBT board type	Single board

Functions

MMA electrode welding / ARC welding - a universal welding process. An arc makes the electrode melt and thus forms the weld seam. No protective gas is required and can therefore be used flexibly at any location.
With our optionally available WP-17V Universal Lift-Tig burner, expandable to a DC WIG welding device.
IGBT Technology - the latest and most modern transistors technology enables the highest performance and switch -on duration at full power! No transformer, no MOSFET, the most modern IGBT!
Light & compact design -only 3.2 kg weight and dimensions of 245 x 100 x 160 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more difficult wear!
The device supplies the highest efficiency & performance - single -phase change current (230V) and allows a output power of real 200 amps.
IGBT-SINGLE BOORD-The ARC 200 MD IGBT has an IGBT single board. Thanks to the compact design, welding devices with a single board can be used very flexibly without the advantages of IGBT technology (high switching frequency, stable welding currents, thermal stability).

Properties & advantages

Hotstart - Automatic voltage increase when starting for better detonator results. Prevents the stable electrode to stick to the stable electrode by short -term overlay of the set welding current and warm up the start of welding faster.
Anti -stick - automatic shutdown of the welding current when the electrode sticks enables easy removal. It also prevents the electrode from glowing.
Smart cooling & overheating protection - the latest technology, integrated overheating protection and high performance cooling enable the maximum performance.
Notice: The device is not intended for use in living areas in which the power supply is carried out via a public low -voltage supply system. It may be difficult to ensure electromagnetic tolerance in these areas, both through line -bound and emitted disturbance.
